4 Unit installation
Installation manual
16
EBLA09~16D + EDLA09~16D
Daikin Altherma 3 M
4P620239-1B – 2022.05
INFORMATION
The recommended height of the upper protruding part of
the bolts is 20mm.
20
NOTICE
Fix the outdoor unit to the foundation bolts using nuts with
resin washers (a). If the coating on the fastening area is
stripped off, the metal can rust easily.
a

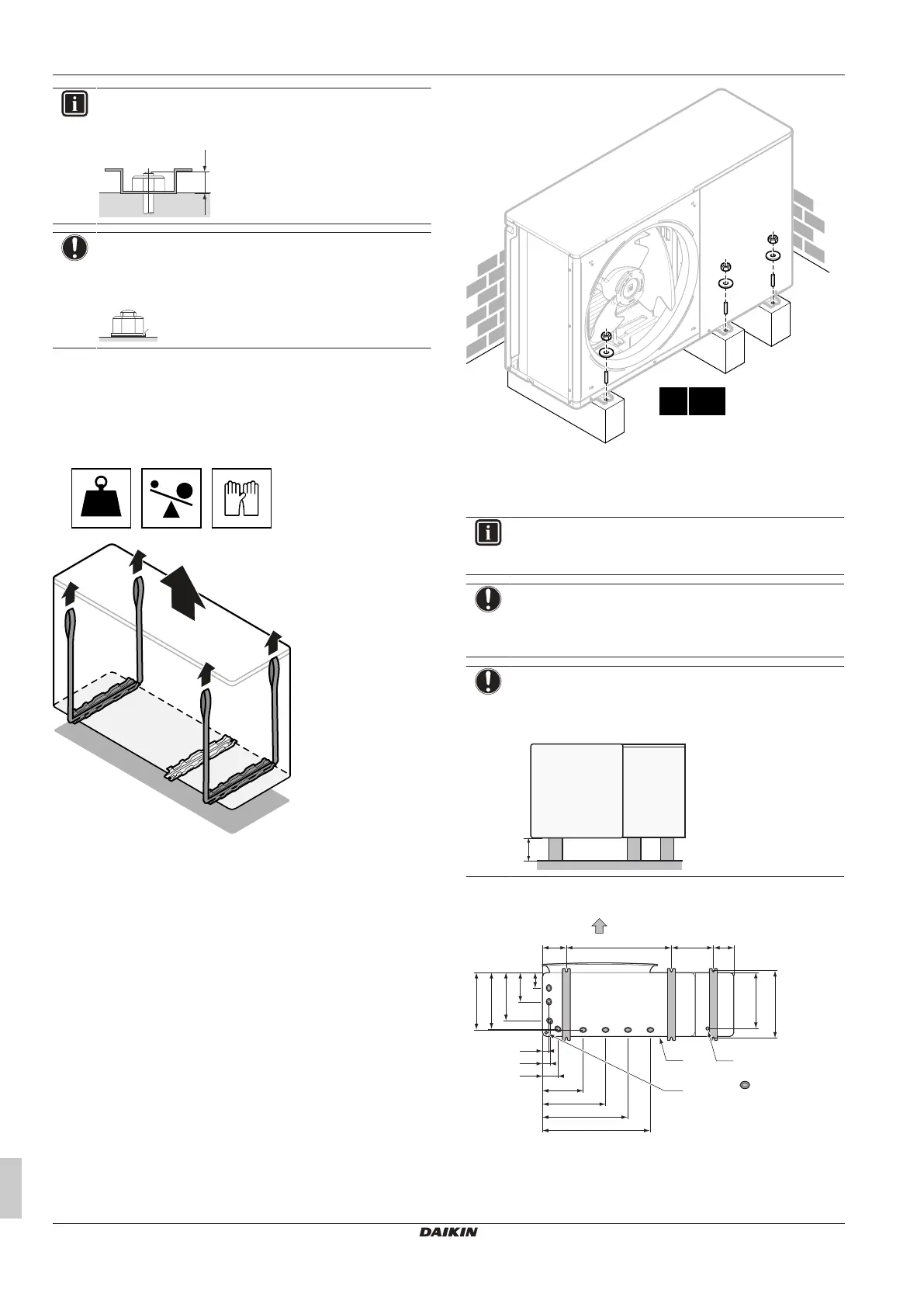

4.2.2 To install the outdoor unit
1 Put the slings (delivered as accessories) through the unit's feet
(left and right).
2 Carry the unit by the slings, and put it onto the installation
structure.
±150
kg
3 Remove the slings, and dispose of them.
4 Fix the unit to the installation structure.
6× M12
4.2.3 To provide drainage
Make sure that condensation water can be evacuated properly.
INFORMATION
If necessary, you can use a drain pan (field supply) to
prevent drain water from dripping.
NOTICE
If the unit CANNOT be installed fully level, always make
sure that the inclination is towards the backside of the unit.
This is required to guarantee proper drainage.
NOTICE
If drain holes of the outdoor unit are covered by a mounting
base or by floor surface, raise the unit to provide a free
space of more than 150mm under the outdoor unit.
≥150 mm
Drain holes (dimensions in mm)
A
171 300758
43
48
288
451
613
776
408
414
349
214
111
480~490
107
148
B B
B
406
C
D F
=
E
A Discharge side
B Distance between anchor points
C Bottom frame
D Knockout hole for snow
E Drain hole for safety valve
