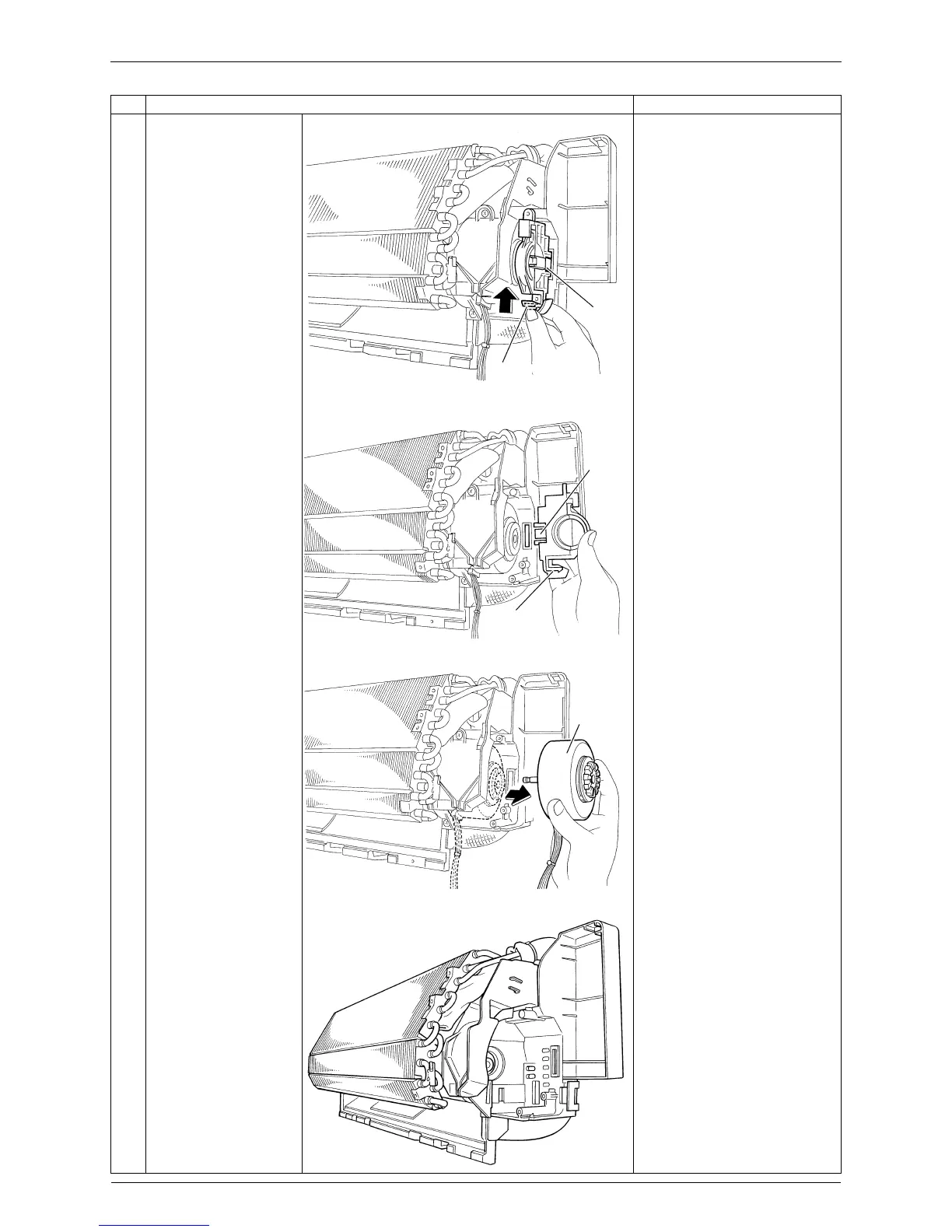

Removal of Fan Motor Si041138
24 Removal Procedure
4
Unfasten the hook (a)
of the fan motor fixing
plate.
5
Unfasten the hook (b)
and remove the fan
motor fixing plate.
6
Remove the fan motor.
Step Procedure Points
Hook(a)
Hook(b)
(R4392)
Hook(a)
Hook(b)
(R4393)
Fan motor
(R4394)
(R4395)
