Removal Procedure 5
3. Removal of Front Grille
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points

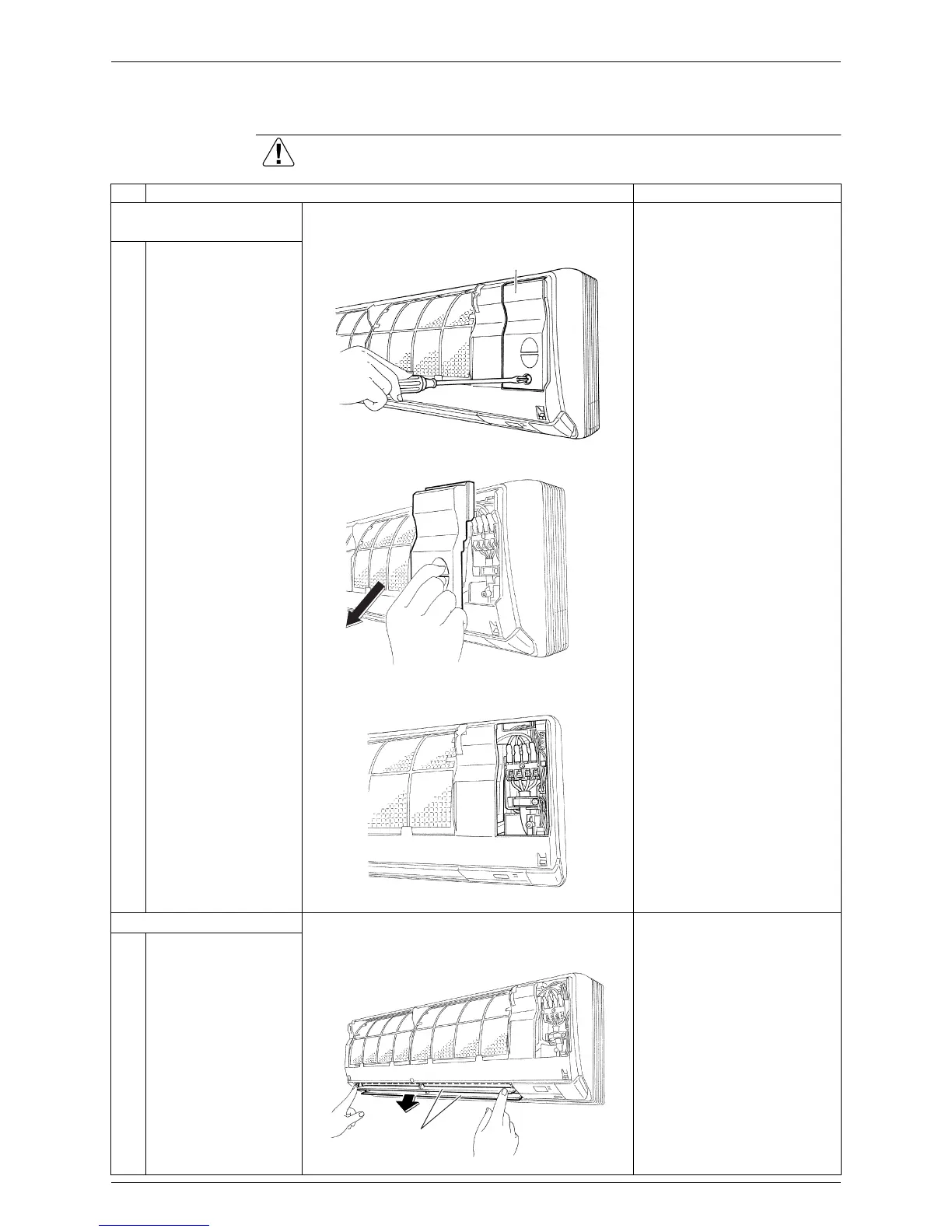

1. Remove the service
cover.
Preparation

Remove the front panel
according to the “Removal of
Front Panel.”
1
Remove the screw of
the service cover.
2
3
Pull out the service
cover diagonally down
in the direction of the
arrow.
The figure shows the
inside.

You can remove the front
grille without detaching the
service cover.
2. Remove the front grille.
1
Open the horizontal
blades.
(R4851)
Service cover
(R4852)
(R4853)
(R4854)
Horizontal blade
