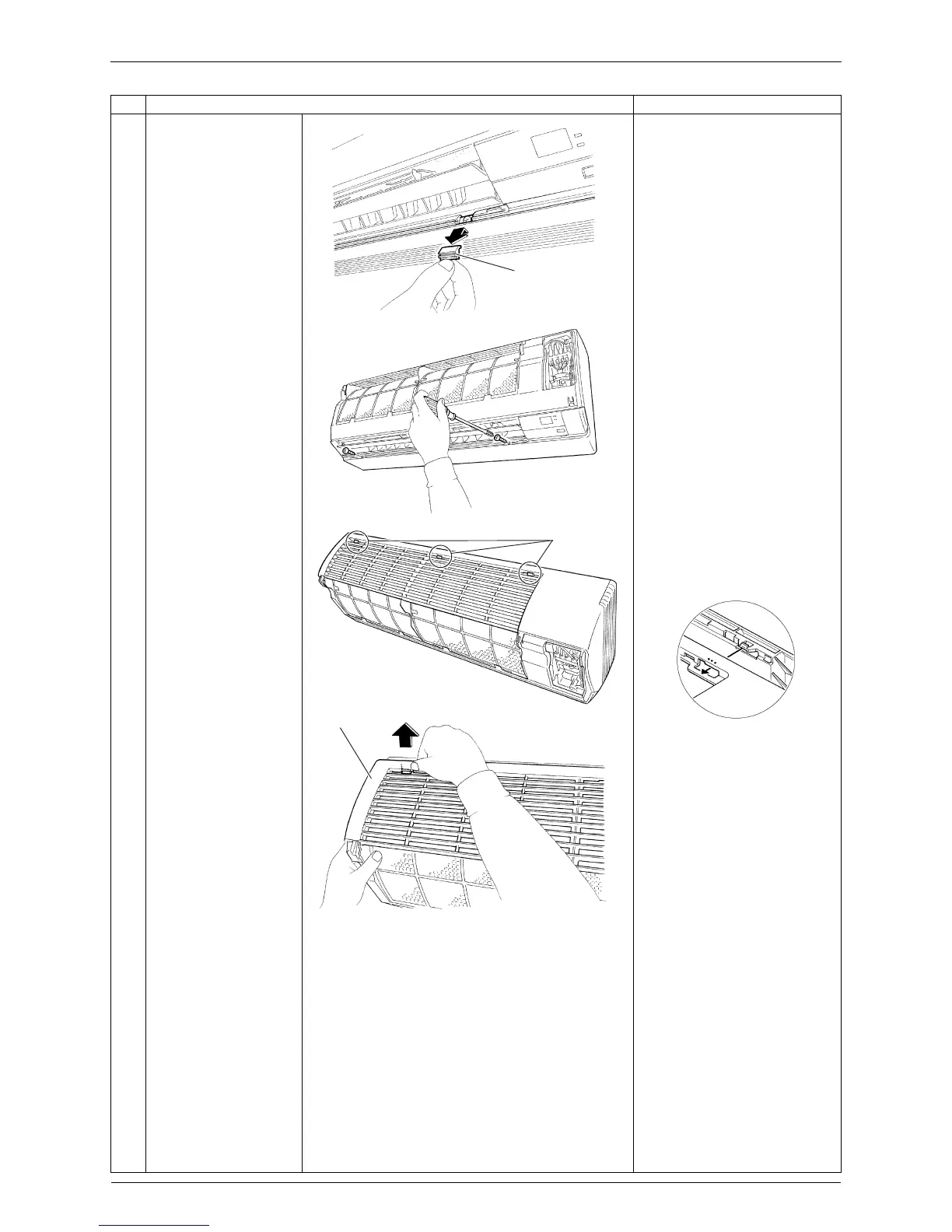

Removal of Front Grille Si041138
6 Removal Procedure
2
3
4
5
Remove the screw
covers. (right and left)
Remove the 2 screws.
(right and left)
The front grille has 3
hooks at the top.
Unfasten the left hook.

When mounting the indoor
unit, drive the screws with
the horizontal blades open or
removed.

The convex marks (...) on
the front panel indicate the
position of the hooks.
Step Procedure Points
Hook
(R4321)
(R12769)
(R4324)
Screw cover
(R4855)
Front grille
(R12715)
