Daikin FTE09MV2S - Removal of Electrical Box

Si041138 Removal of Electrical Box
Removal Procedure 11

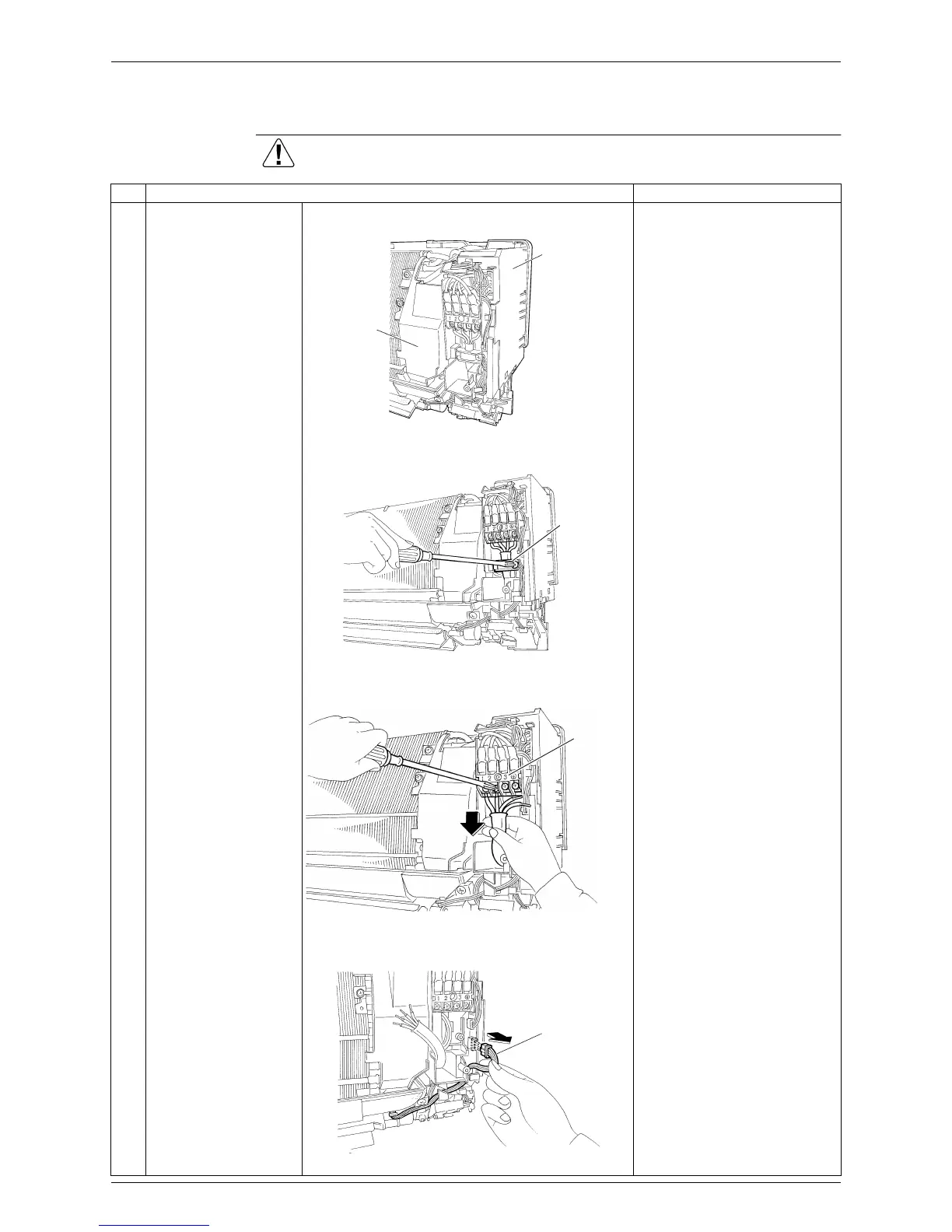

5. Removal of Electrical Box
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1
The figure shows the
connections of wire
harnesses.
Preparation

Remove the front grille
according to the “Removal of
Front Grille.”
2
Remove the screw of
the wire fixture.
3
Remove the 4 screws
of the terminal board
and disconnect the
connecting wires.
4
Disconnect the
connector for the swing
motor [S6].

Put any excess wires behind
the power supply lead wire.
Drip proof
plate
Electrical box
(R12717)
Wire
fixture
(R12718)
Terminal
board
(R12719)
(R12720)
[S6]
