Removal of Front Panel Si041138
4 Removal Procedure
2. Removal of Front Panel
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.

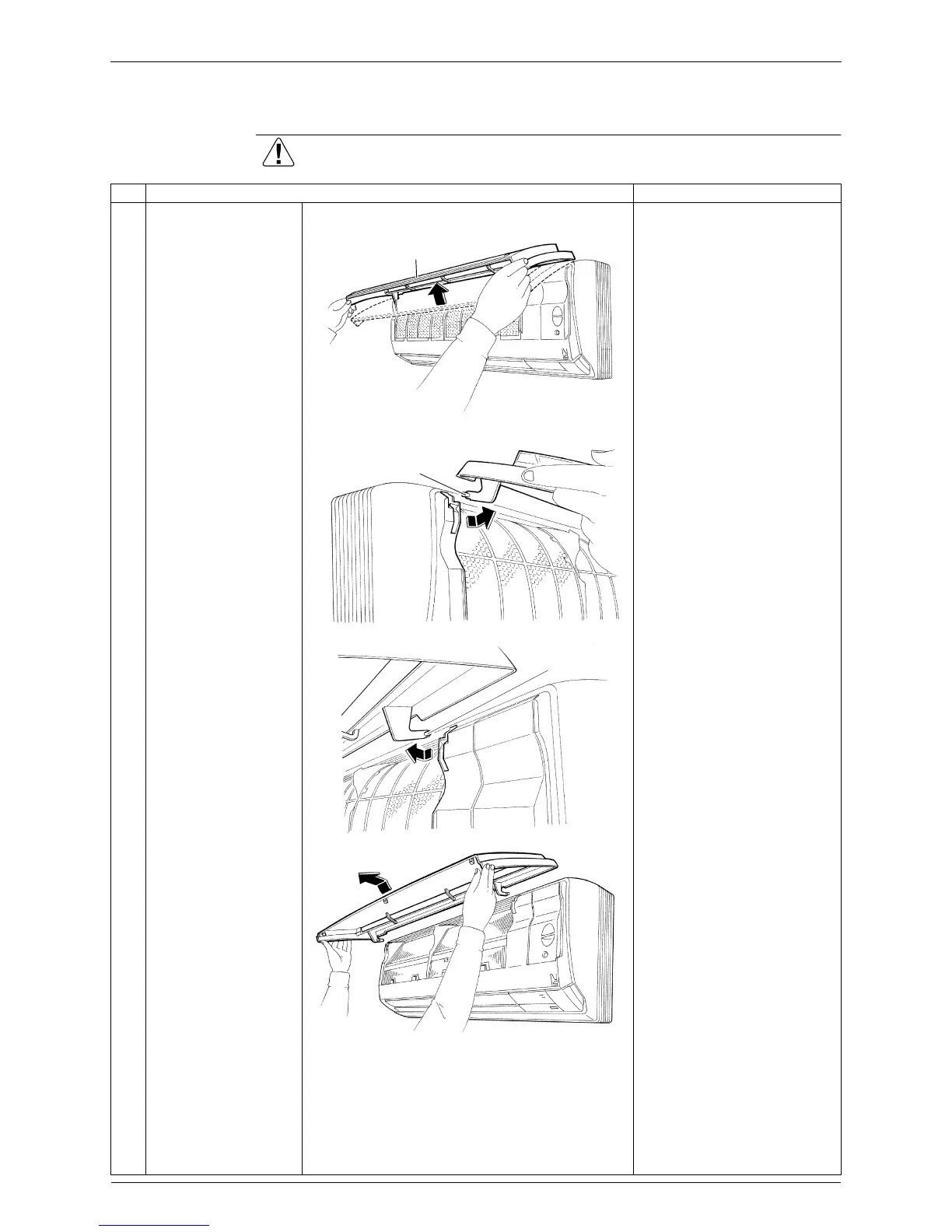

Step Procedure Points
1
Open the front panel
over the position where
it stops.
2
Slide the left rotary
shaft to the right and
release it.
3
4
Slide the right rotary
shaft to the left and
release it.
Remove the front panel.

When reassembling the front
panel, fit the right and left
rotary shafts one by one into
the grooves and fully push
them in position.
(R4849)
Rotary shaft
Rotary shaft
(R4313)
(R4315)
Front panel
(R4850)
