Daikin FTE09MV2S - Removal of Fan Rotor

Removal of Fan Rotor Si041138
28 Removal Procedure

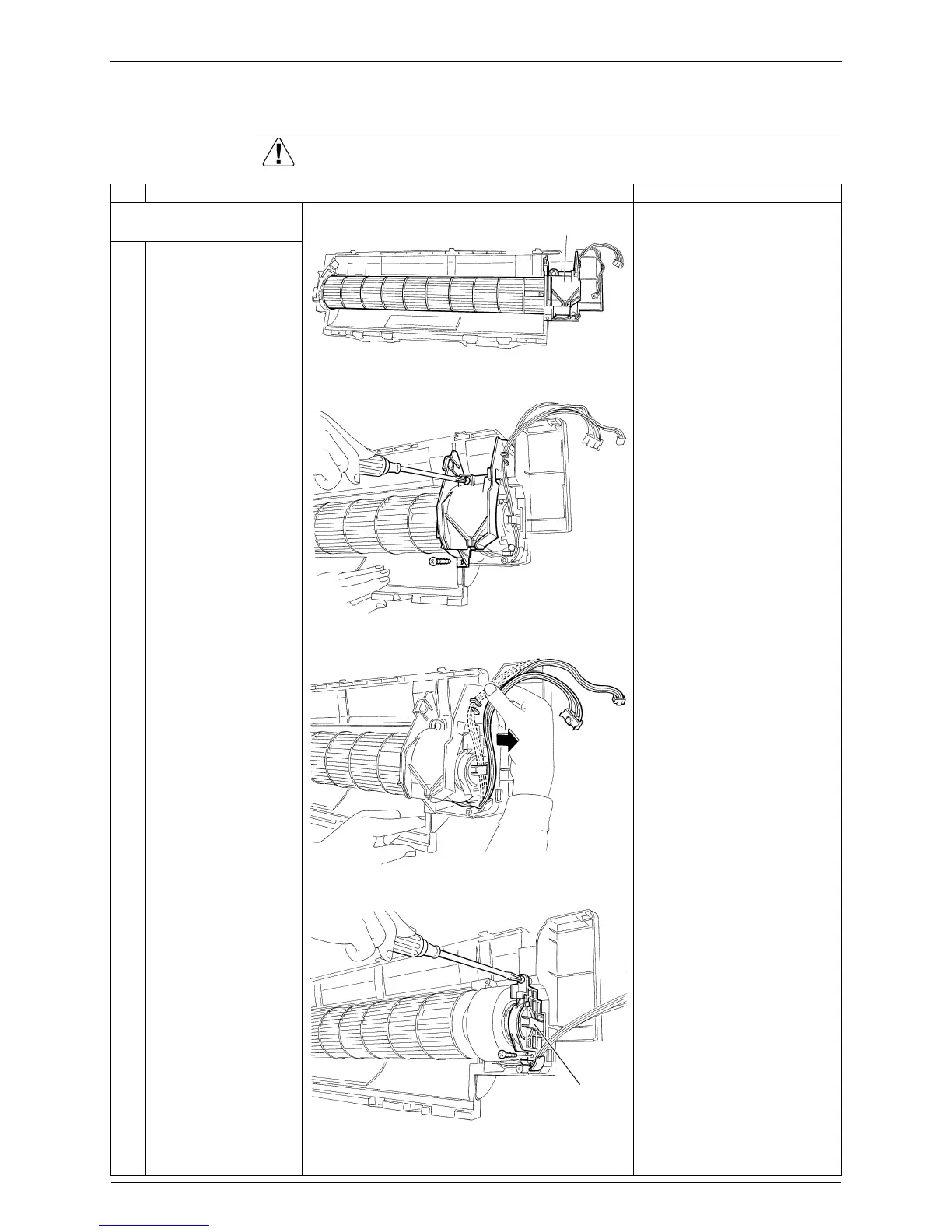

10.Removal of Fan Rotor
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1. Remove the right side
panel.
Preparation

Remove the indoor heat
exchanger according to the
“Removal of Indoor Heat
Exchanger.”
1
Remove the 2 screws
of the right side panel.
2
Release the fan motor
lead wires from the
hooks and remove the
right side panel.
3
Remove the 2 screws
of the fan motor fixing
plate.
Right side panel
(R15464)
(R4407)
(R4408)
Fan motor
fixing plate
(R4409)
