Removal of Horizontal Blades / Vertical Blades Si041138
10 Removal Procedure

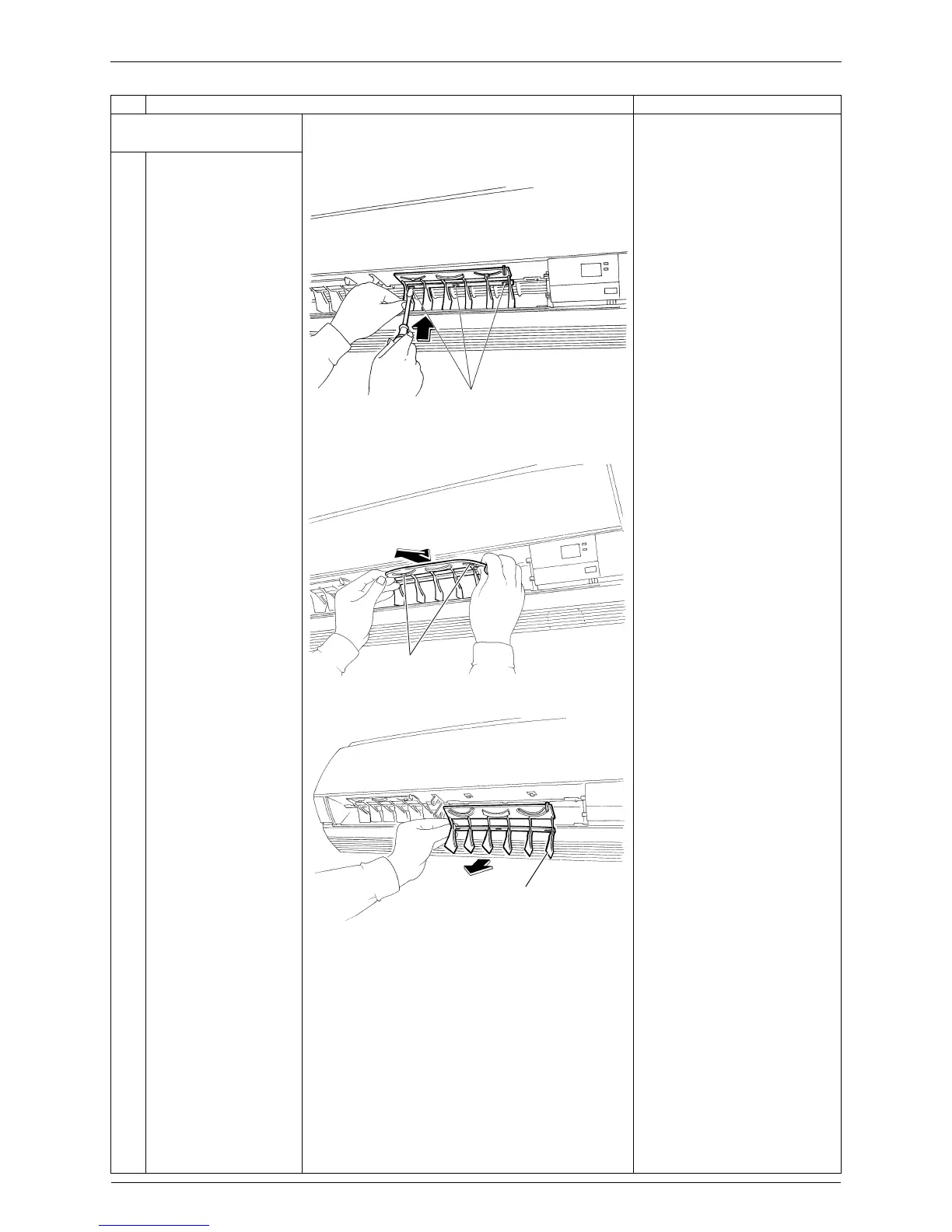

3. Remove the vertical blade
ASSY.
1
Unfasten the 3 hooks at
the shaft mounting part
by pressing them with a
flat screwdriver.
2
Unfasten the hooks at
the upper 2 positions.
3
Remove the vertical
blade ASSY.

A vertical blade ASSY has 6
fins. It is impossible to
replace only one fin.

The vertical blade ASSY is
not marked for difference
between right and left.
Step Procedure Points
Hook
(R4862)
Hook
(R4863)
(R12546)
Vertical blade ASSY
