Daikin FTE09MV2S - Page 14

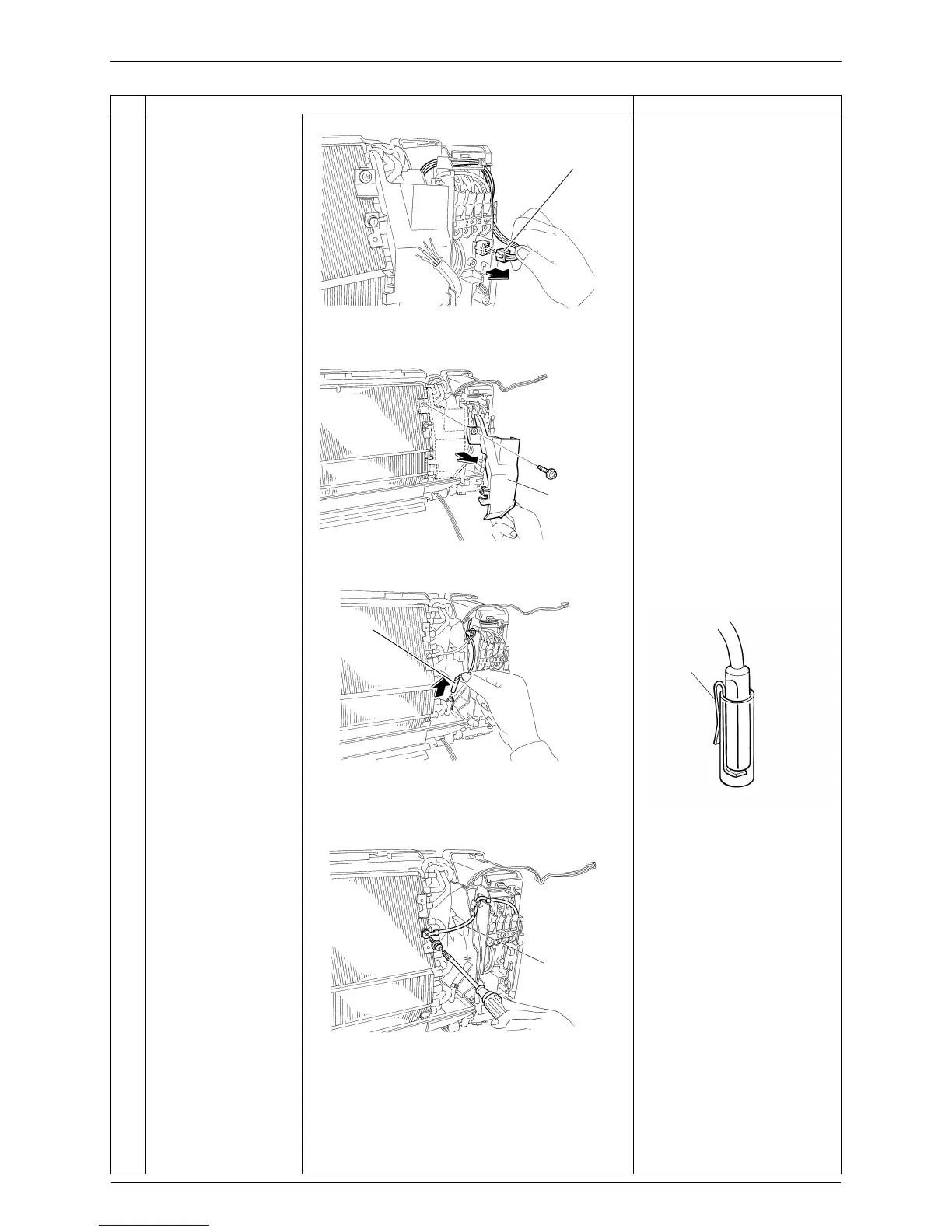

Removal of Electrical Box Si041138
12 Removal Procedure
5
Disconnect the
connector for the fan
motor [S7].
6
Remove the screw and
remove the drip proof
plate.
7
Pull out the indoor heat
exchanger thermistor.

Be careful not to lose the clip
for the thermistor.
8
Remove the screw and
detach the earth wire.
Step Procedure Points
(R11470)
[S7]
Drip proof plate
(R12721)
Indoor heat
exchanger
thermistor
(R12722)
Clip
(R11234)
Earth wire
(R4345)
