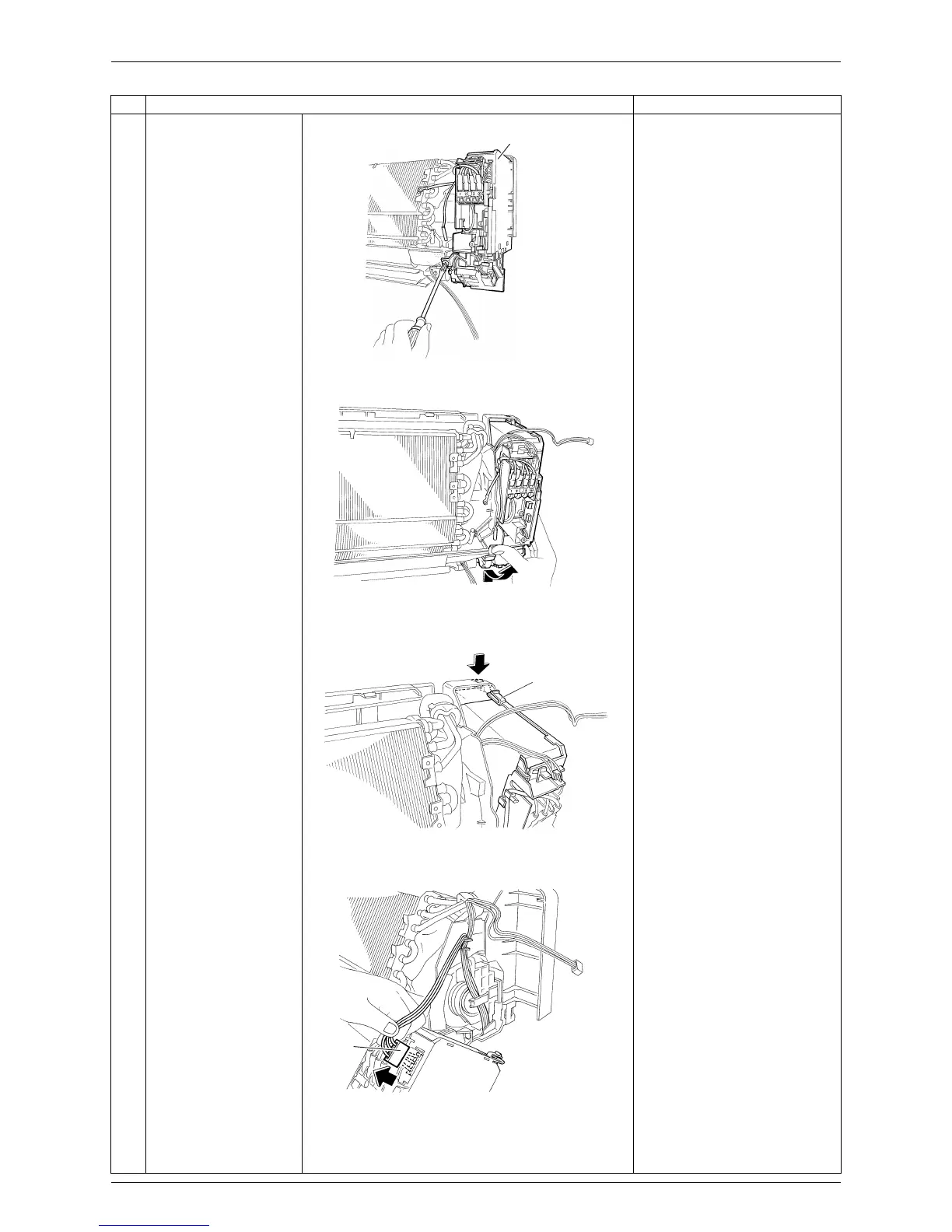

Daikin FTE09MV2S - Page 15

Si041138 Removal of Electrical Box
Removal Procedure 13
9
Remove the screw of
the electrical box.
10
Lift up and pull the
electrical box.
11
Unfasten the hook at
the upper far side by
pressing it from above.

There is a hook also at the
lower part of the back. When
reassembling the electrical
box, make sure that it is
securely fastened.
12
Disconnect the
connector for the fan
motor [S1] and remove
the electrical box.
Step Procedure Points
Electrical box
(R12735)
(R4348)
Hook
(R4347)
[S1]
(R4349)
