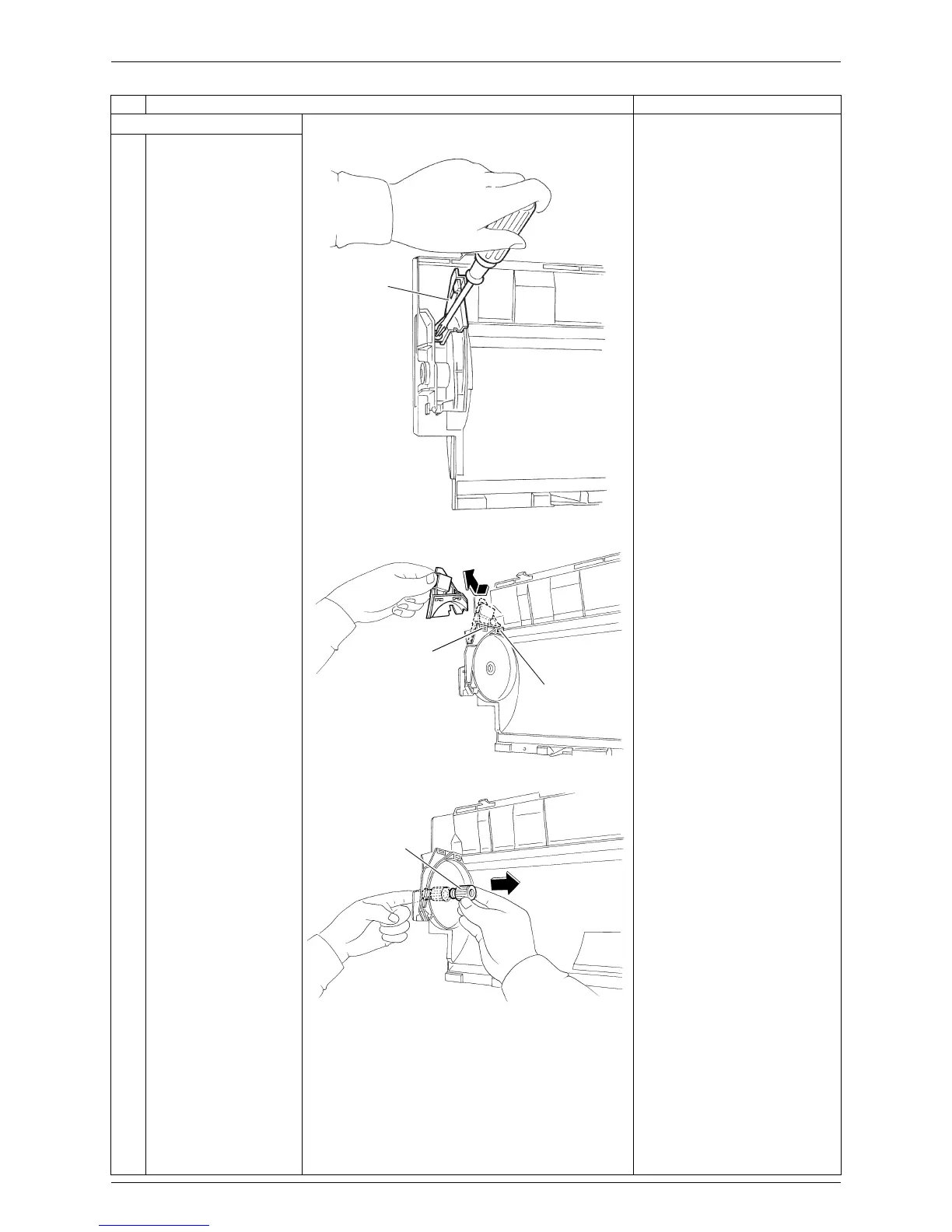

Si041138 Removal of Fan Rotor
Removal Procedure 31
3. Remove the bearing.
1
Remove the screw of
the left side panel.
2
Unfasten the 2 hooks
and remove the left side
panel.
3
Press the bearing from
outside.
4
Remove the bearing.
Step Procedure Points
(R15465)
Left side panel
Hook
Hook
(R4415)
Bearing
(R4416)
