Daikin FTE35KV16 - Disconnect Wire Harnesses; Remove Signal Receiver PCB

Si041048 Removal of PCBs
Removal Procedure 15
3
4

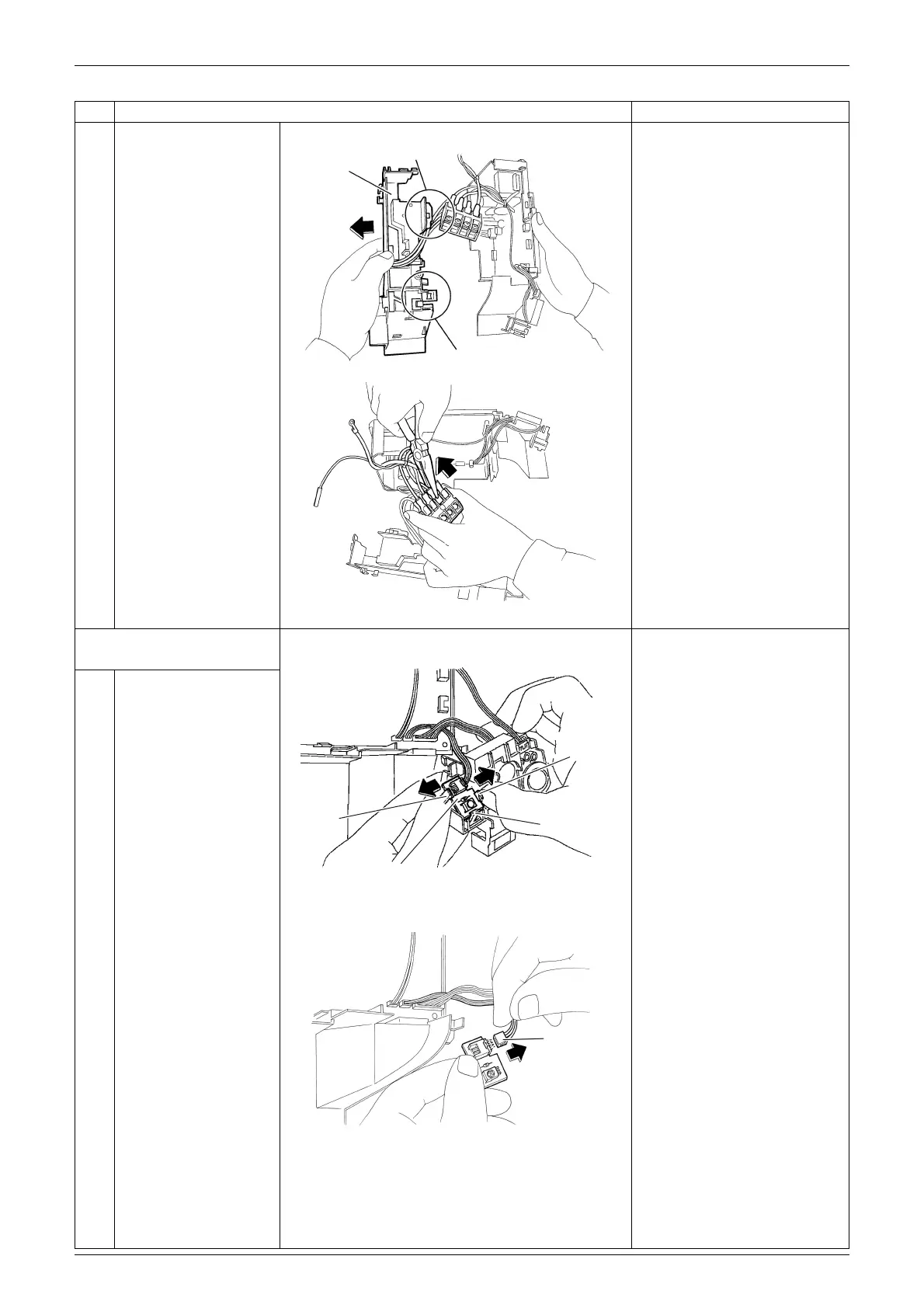

Slide the electrical box
cover to the left and
remove it.
Disconnect the wire
harnesses.
5. Remove the signal
receiver PCB.
1
Unfasten the 3 hooks
and remove the signal
receiver PCB.
2
Disconnect the
connector [S29] from
the signal receiver
PCB.
Step Procedure Points
Electrical
box cover
Hook
Hook
(R4358)
(R4359)
Hook
Hook
Hook
Signal receiver PCB
(R4361)
(R15506)
[S29]
