● To prevent electrical noise and possible communication errors, avoid installing the
remote controller wiring parallel to or in the vicinity of line voltage circuits.
NOTE
Installation procedure for the lower case.3-6
When wiring the remote controller through the top center or rear access points, attachment of the
wire to the lower case is required before it is wall mounted. Closely follow the wiring
procedures.

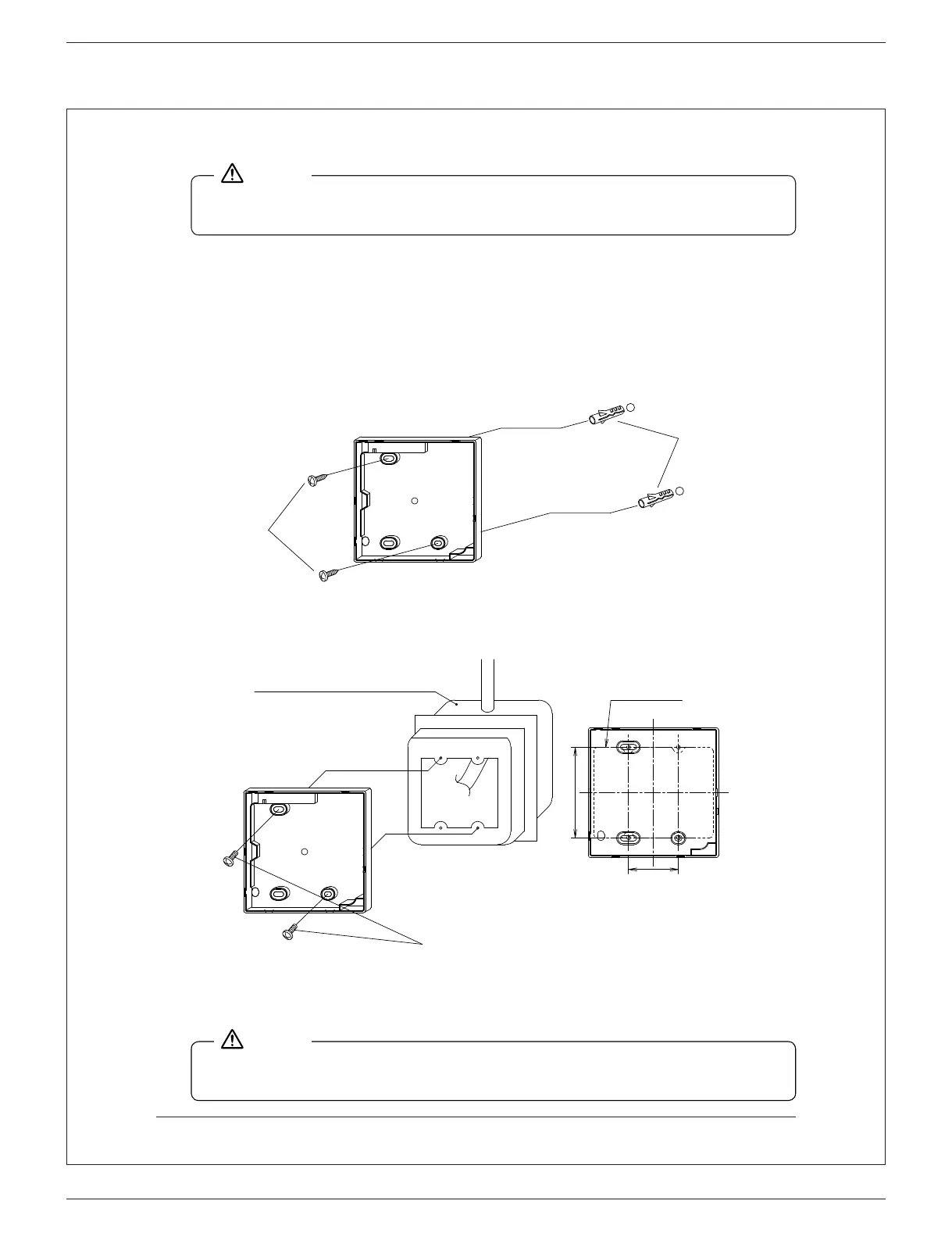

Wall installation3-6-1
Secure by using furnished drywall anchors and screws (2 pcs.).
Drywall screws
Drywall anchors
Switch box installation3-6-2
Secure by using eld supplied machine screws (2 pcs.).
Machine screws (field supply) or
(use optional accessory KJB211A)
Switch box
(field supply) or
(use optional accessory
KJB211A)
Switch box
[Unit : inch (mm)]
3-5/16 (84)
1-13/16
(46)
● Install the control on a at surface only.
To prevent deformation of the lower case, avoid over-tightening the installation screws.●
NOTE
