BEFORE USE


 GENERAL DESCRIPTION OF SYSTEM
This central remote controller can monitor and control up to 64 indoor unit groups.
Using two central remote controllers allows monitoring and controlling of up to 128 indoor unit groups.
Main Functions
1.
Batch starting and stopping of indoor units connected to the central remote controller.
2.
Handling of operation settings such as start/stop, timer operation, remote controller prohibition/permission, etc.,
and operation status settings such as temperature.
3.
Operation status monitoring of operation mode, set temperature, etc.
4.
Can be connected to an external central monitor panel and key system using the forced stop input
(non-voltage a connector).

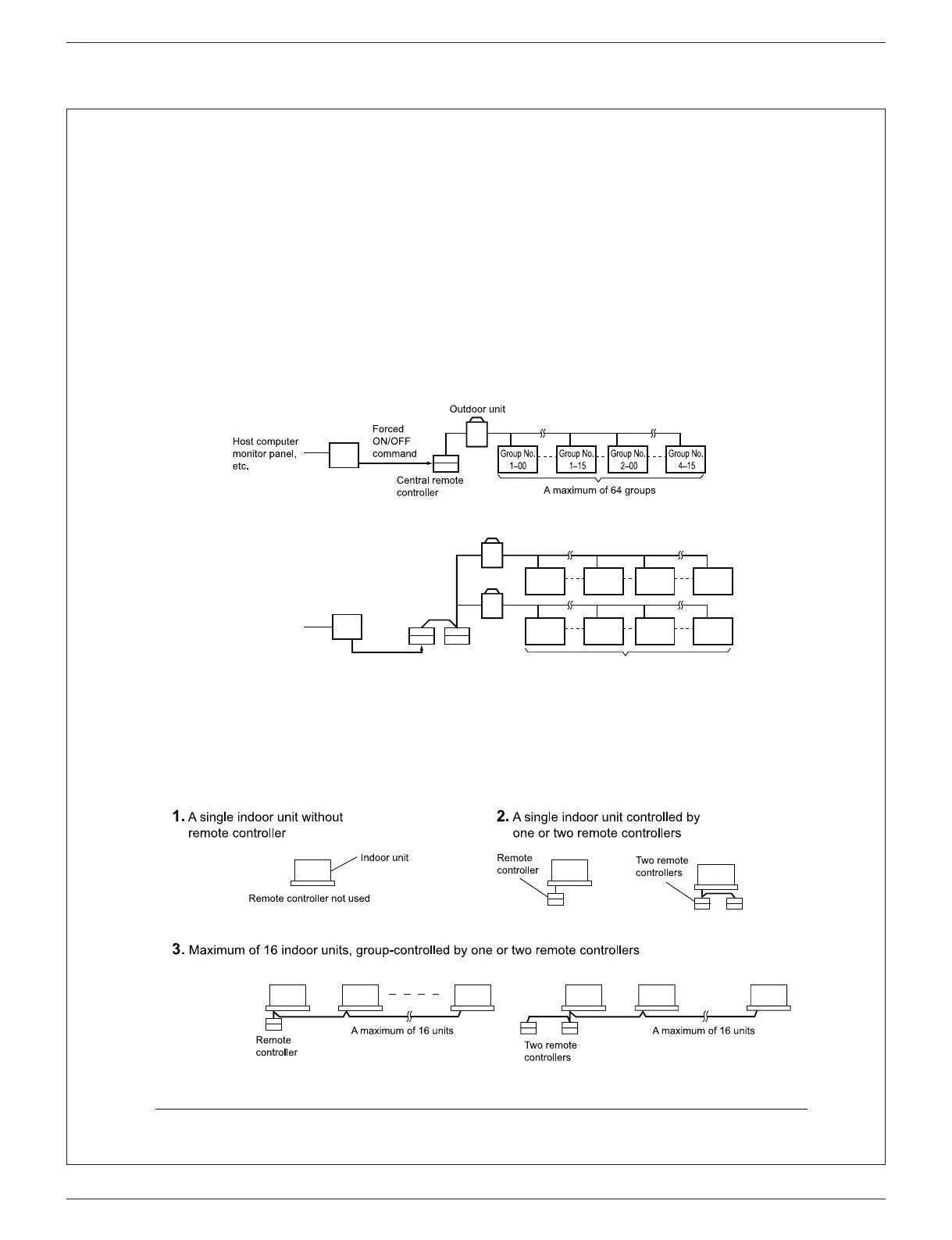

• When using 1 central remote controller
• When using 2 central remote controllers
(The central remote controller and the separately sold remote control adapter circuit board or group remote con-
trol adapter cannot be used together.)
∗ GROUP OF INDOOR UNIT refers to the below.
1.
A single indoor unit without remote controller
Forced ON/OFF command
should be connected
to one of the two units.
Host computer
monitor panel,
etc.
A maximum of 128 groups
Forced ON/OFF command
Central
remote
controller
Group No.
1–00
Group No.
1–15
Group No.
2–00
Group No.
4–15
Group No.
5–00
Group No.
5–15
Group No.
6–00
Group No.
8–15
Outdoor unit
