FTX-N/U, FVXS-N, FDMQ-R Series EDUS091558E
3K019189-1D
3 4 521
Notes

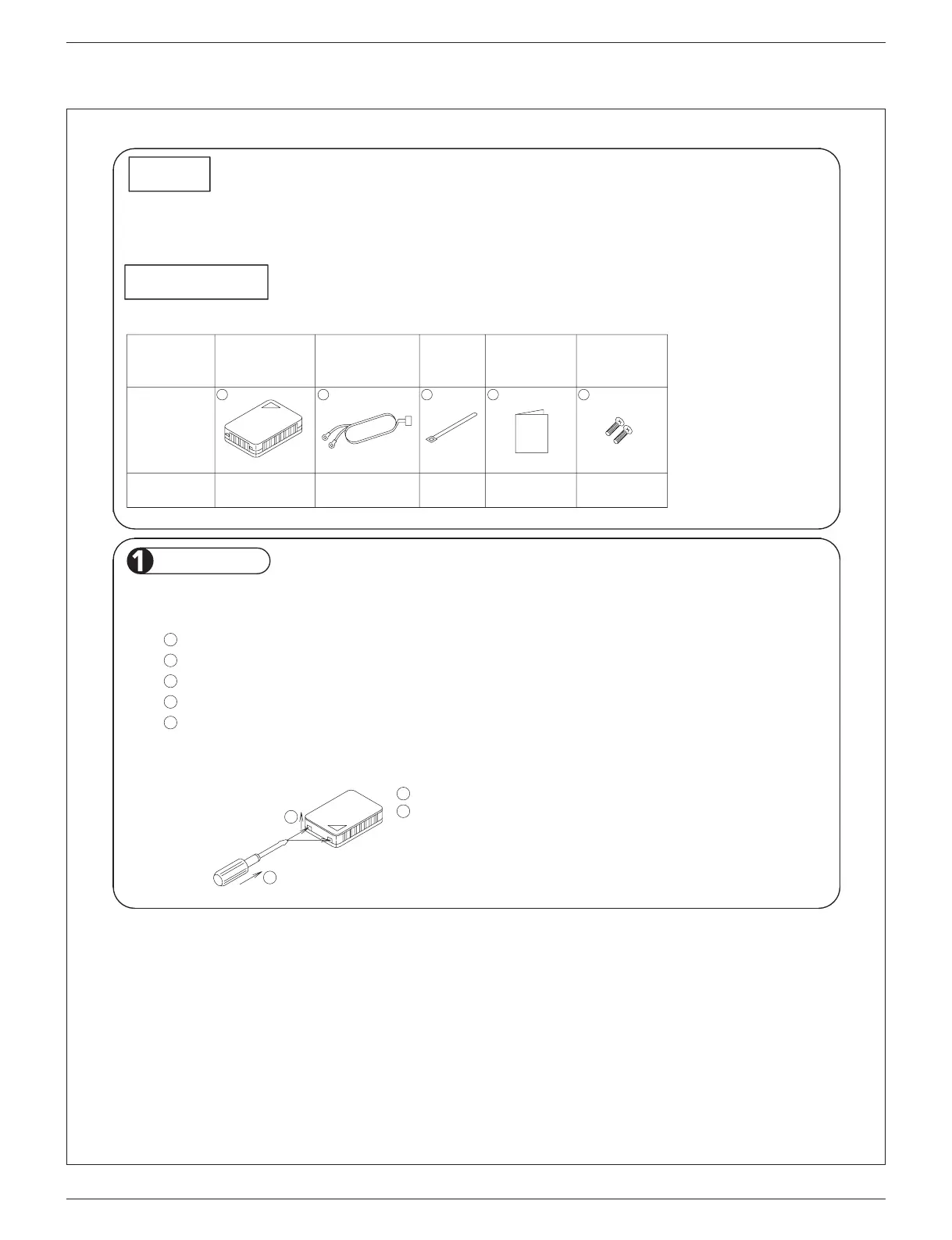

Accessories
1
2
Mounting
•
Please check applicable kit model name by catalog etc.
•
When installed on SkyAir Round-flow type models, the dehumidification by detection of humidity does not operate.
Check the following accessories.
pmalCemaN
Shape
Quantity
Remote sensor
(sensor box)
Extension cable
(2-core, 12m)
Mounting screw
(M4x16)
Installation
manual
(this drawing)
x 1 x 1 x 2 x 2x 1
1) Selection of mounting location.
The thermistor for temperature detection is incorporated into the remote sensor. Select the mounting location taking the
following cautions into account.
1 Where the average temperature of an air conditioned room can be detected.
2 Where it is not exposed to the direct sunlight.
3 Where it is not influenced by other heat sources.
4 Where it is not exposed to the direct discharge air from the air conditioner.
5 Where it is not exposed to the outdoor air infiltrated into the room by opening the door.
2) Mounting
<Cautions>
•
Remove the cover of the sensor box.
1 Insert a flat blade screw driver into the sensor box concave part (2 locations).
2 Remove the cover pushing up the nail to the cover of the sensor box.
Do not push the nail powerfully with a narrow flat blade screw driver,
because you may break off the nail.
about 6mm width
flat blade screw driver
14.16 <KRCS01-4B> Remote Sensor
To Next Page
