View C
Remove 1 screw. (Hexagon tapping screw)
View C
Remove 1 screw. (Hexagon tapping screw)
Partition plate
Drain pan heater
A
Ground plate
(The ground plate should be
installed so that it Ƃrmly
adheres to the partition plate.)
Plates (Insert the plates under the heat exchanger.) Heat exchanger
Holes
D
Ground plate
(The ground
plate should be
installed
so that it Ƃrmly
adheres to the
bottom frame.)
Plate (Insert the plate under the heat exchanger.)
Drain pan heater
A
Hole (Fix with the M4 piercing screw.)
B
M4 piercing screw
B
M4 piercing screws
B
D
C
C
Hole
Bottom frame
View D
View D
Heat exchanger
Hole (Fix with the M4 piercing screw.)
B

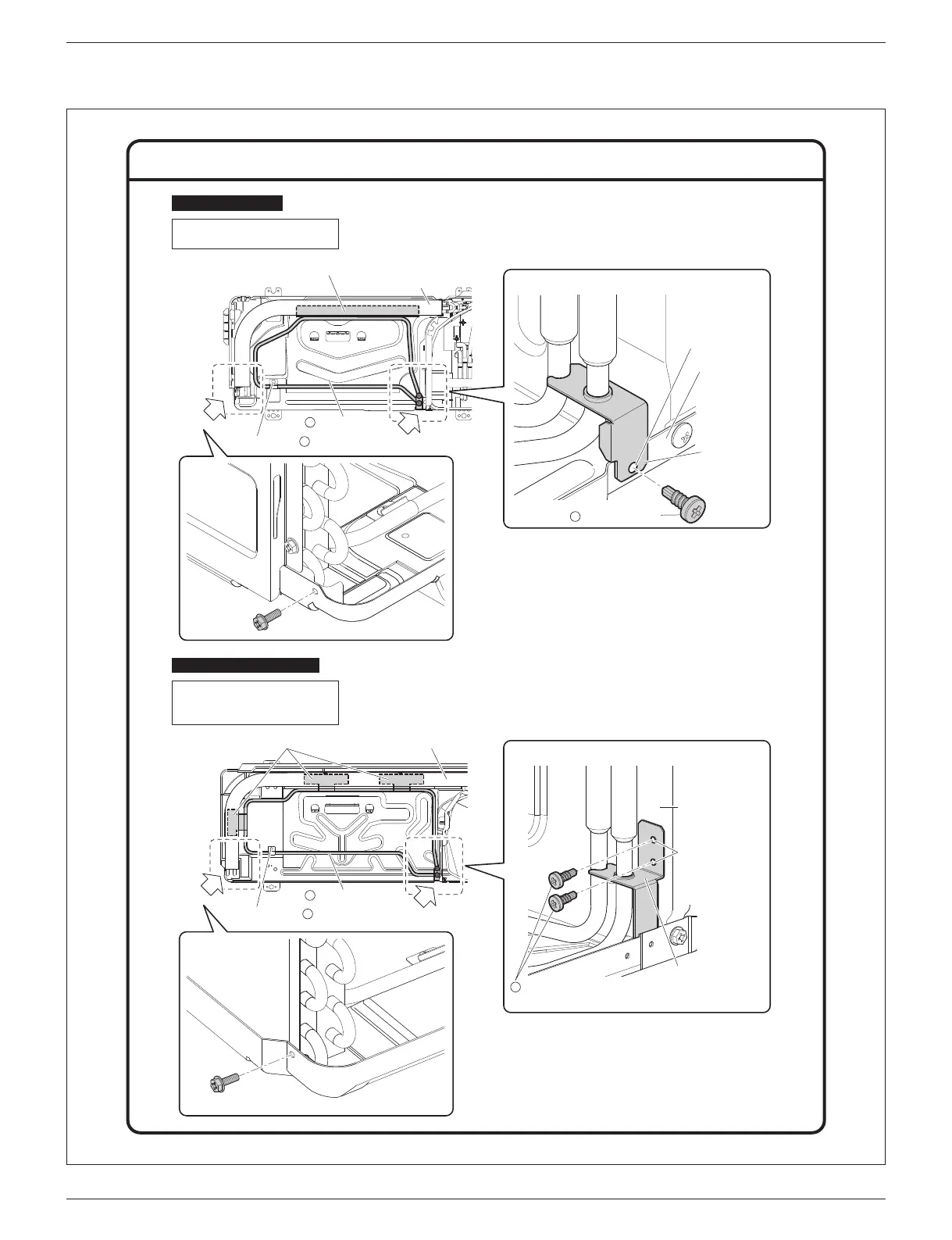

Installation Procedure (3)
For type A models
Location and number of holes
Bottom frame: 2
Location and number of holes
Bottom frame: 1
Partition plate: 2
For type B and C models
