Daikin FTY-F series User Manual

13
Application Information
Refrigerant Piping

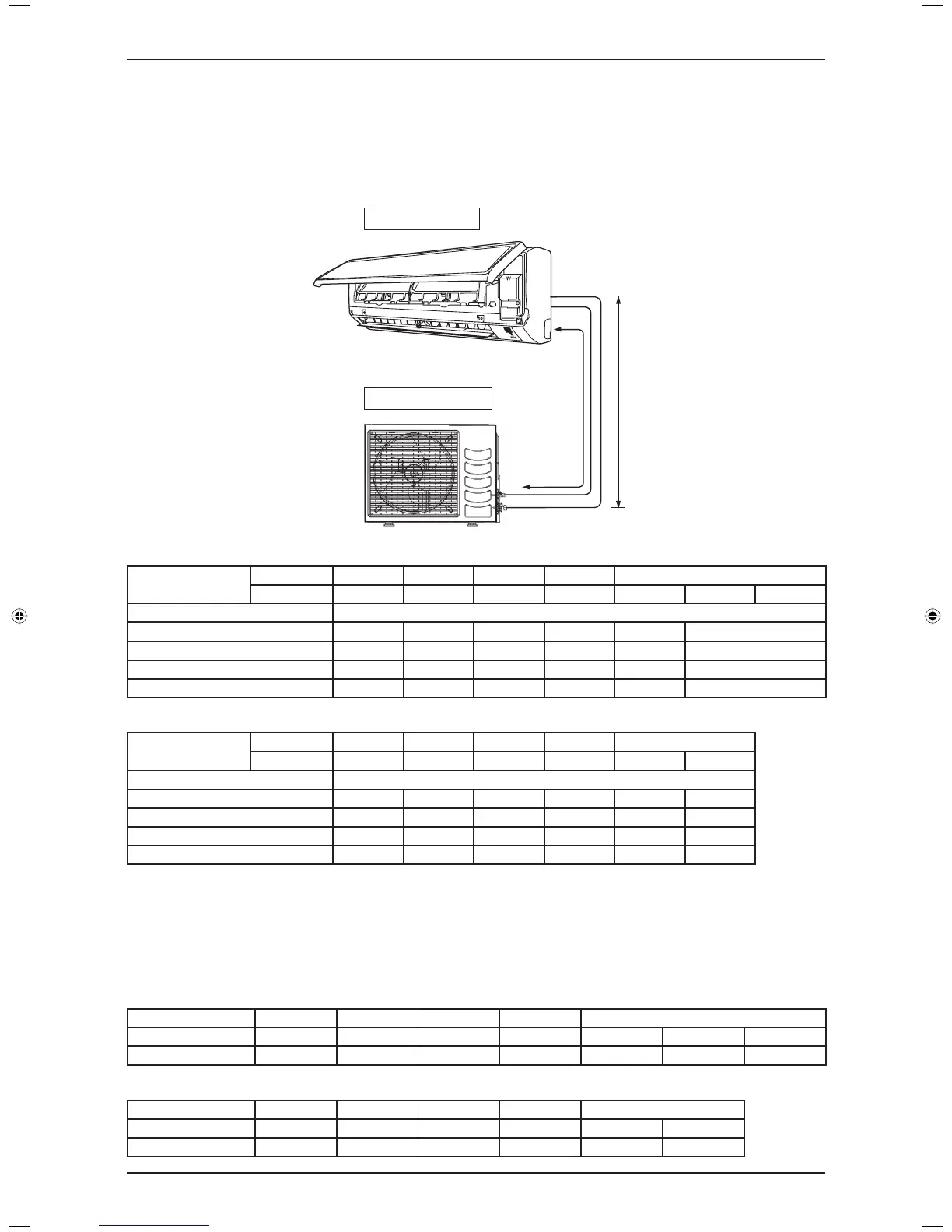

Piping Length and Elevation
When the pipe length becomes too long, both the capacity and reliability drop. As the number of bends increases,
system piping resistance to the refrigerant fl ow increases, thus lowering the cooling capacity, and as the result
the compressor may become defective. Always choose the shortest path and follow the recommendation as
tabulated below:
Outdoor Unit
Indoor Unit
LH
Cooling Only Model
Model
Indoor FT10JXV1 FT15JXV1 FT20JXV1 FT25JXV1 FT30FXV1
Outdoor R09CXV1 R15CXV1 R18CXV1 R25CXV1 R28CXV1 R30DXV1 R30DXY1
Min. Allowable Length (L), m 3
Max. Allowable Length (L), m 12 12 25 35 15 45
Max. Allowable Elevation (E), m 5 5 15 20 8 15
Gas Pipe Size, mm/(in) 9.52 / (3/8") 12.70 / (1/2") 15.88 / (5/8") 15.88 / (5/8") 15.88 / (5/8") 15.88 / (5/8")
Liquid Pipe Size, mm/(in) 6.35 / (1/4") 6.35 / (1/4") 6.35 / (1/4") 9.52 / (3/8") 9.52 / (3/8") 9.52 / (3/8")
Heatpump Model
Model
Indoor FTY09JXV1 FTY15JXV1 FTY20JXV1 FTY25JXV1 FTY30FXV1
Outdoor RY09CXV1 RY15CXV1 RY20CXV1 RY25CXV1 RY28CXV1 R30DXV1
Min. Allowable Length (L), m 3
Max. Allowable Length (L), m 12 12 15 15 15 45
Max. Allowable Elevation (E), m 5588815
Gas Pipe Size, mm/(in) 9.52 / (3/8") 12.70 / (1/2") 15.88 / (5/8") 15.88 / (5/8") 15.88 / (5/8") 15.88 / (5/8")
Liquid Pipe Size, mm/(in) 6.35 / (1/4") 6.35 / (1/4") 6.35 / (1/4") 9.52 / (3/8") 9.52 / (3/8") 9.52 / (3/8")
Additional Charge
The refrigerant gas is charged in the outdoor unit and, if the piping length is 7.6m, additional charge of the
refrigerant after vacuuming is not necessary.
When the piping length is more than 7.6m, additional refrigerant charge (g) per additional 1m length as
tabulated:
R22 – Cooling Only
Indoor FT10JXV1 FT15JXV1 FT20JXV1 FT25JXV1 FT30FXV1
Outdoor R09CXV1 R15CXV1 R18CXV1 R25CXV1 R28CXV1 R30DXV1 R30DXY1
Add. Charge, g/m 20 20 19 39 55 55 55
R22 – Heatpump
Indoor FTY09JXV1 FTY15JXV1 FTY20JXV1 FTY25JXV1 FTY30FXV1
Outdoor RY09CXV1 RY15CXV1 RY20CXV1 RY25CXV1 RY28CXV1 RY30DXV1
Add. Charge, g/m 20 20 20 55 58 55
•
•
DAIKIN_FT(Y).indb 13DAIKIN_FT(Y).indb 13 10/15/2012 4:27:10 PM10/15/2012 4:27:10 PM
