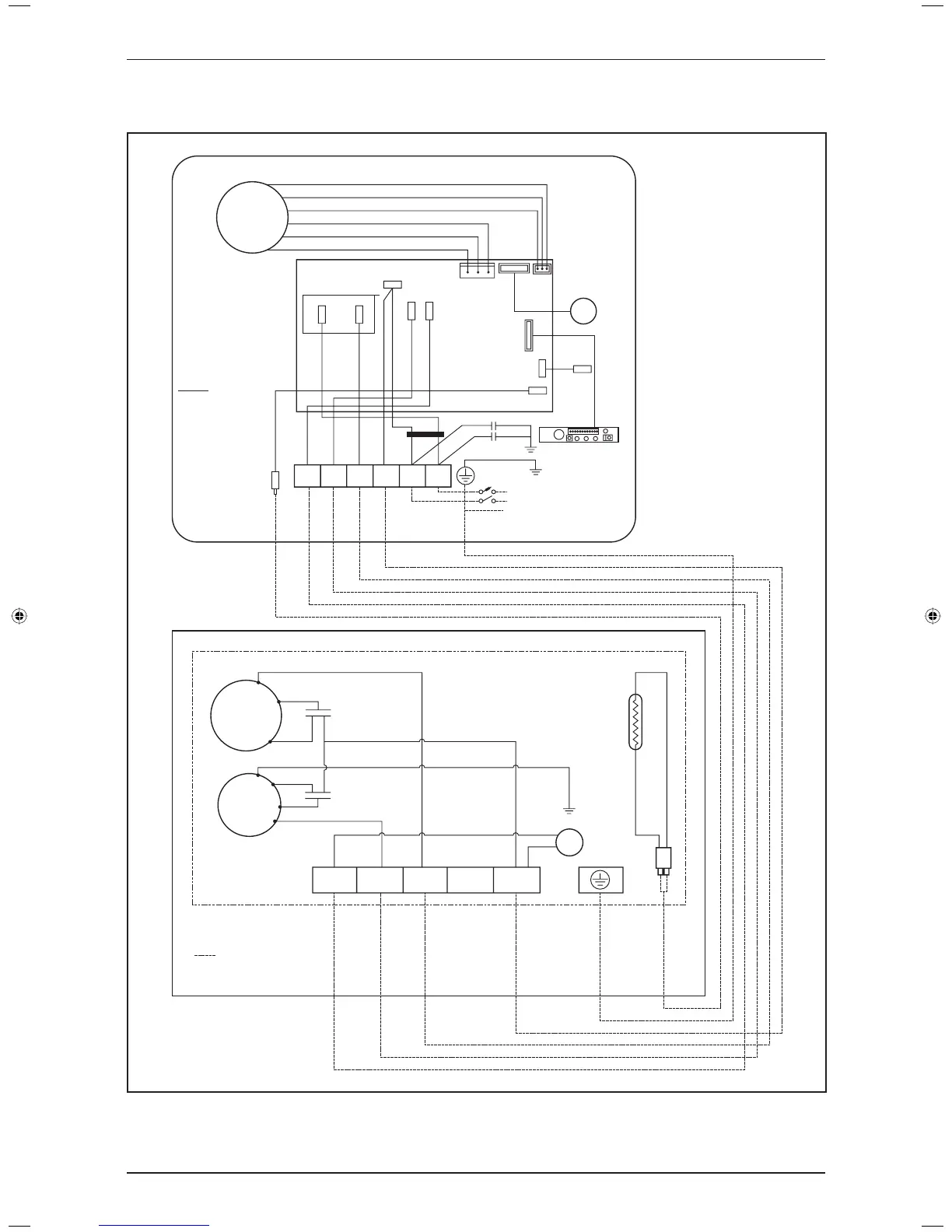

Wiring Diagram
Indoor Unit
Model: FTY20/25JXV1
Outdoor Unit
Model: RY20/25CXV1
FM
BLACK
L
COMP
OD FAN
4WV
WHITE
BROWN
BLACK
BROWN
PURPLE
BLUE
BLUE
RED
BLACK (LIVE)
RED (FAN CAP)
WHITE (NEUTRAL)
N
Z1C
AS
4WV OF
COMP
N1 N L
BLUE C1
TH2
TH1
DISPLAY BOARD
GREEN/YELLOW
TO OUTDOOR
THERMISTOR
L
N
E
POWER
SUPPLY
C2
RED
NOTATION
FM : FAN MOTOR
PART NO: 08 02 4 121388
AS : AIR SWING MOTOR
TH1 : INDOOR COIL THERMISTOR
TH2 : ROOM THERMISTOR
Z1C : FERRITE CORE
C1, C2 : CAPACITOR
KEY:
CM - COMPRESSOR MOTOR
FM - FAN MOTOR
4WV - 4 WAY VALVE
TH2 - OUTDOOR THERMISTER
FIELD SUPPLY WIRING
PART NO. : 08 02 4 077240
WHITE
RED
C
CM
FM
4WV
4WV OF COMP N
S
R
BLUE
RED
BLACK
BLACK
BLACK
BLUE
BLACK
TH2
BLACK
CAPACITOR
CAPACITOR
GREEN/YELLOW
BLUE
BLUE
