Daikin FTY-F series - Electrical Wiring Diagrams

41

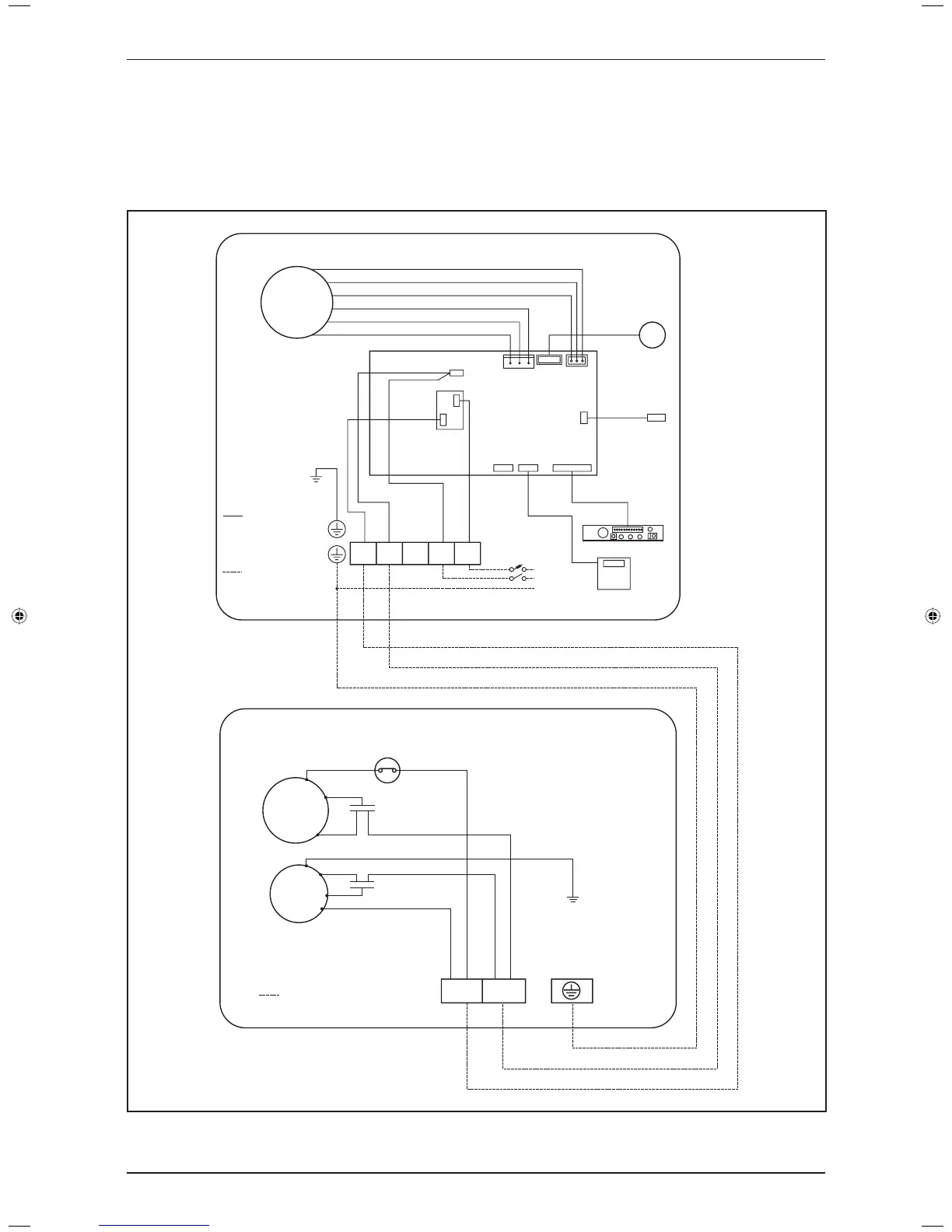

Wiring Diagram
Wiring Diagram
Cooling Only
Indoor Unit
Model: FT10/15JXV1
Outdoor Unit
Model: R09/15CXV1
FM
BLACK
WHITE
RED
C
S
R
CM
COMP N
FM
RED
BLACK
BLUE
BLUE
KEY:
CM - COMPRESSOR MOTOR
FM - FAN MOTOR
OLP - OVERLOAD PROTECTOR
TH2 - OUTDOOR THERMISTOR
FIELD SUPPLY WIRING
PART NO. : 08 02 4 100317
BLUE
BLUE
CAPACITOR
CAPACITOR
GREEN/YELLOW
WHITE
OLP
BROWN
BLACK (LIVE)
RED (FAN CAP)
WHITE (NEUTRAL)
N
CN_FAN
CN_PGRM
PURPLE
BLUE
G/Y
NOTE :
FM : FAN MOTOR
AS : AIR SWING MOTOR
TH1 : INDOOR COIL THERMISTOR
TH2 : ROOM THERMISTOR
FIELD WIRING
PART NO: 08 02 4 121384
BLUE
RED
CN_WIR CN_DSP
TH1
TH2
DISPLAY BOARD
POWER
SUPPLY
L
N
E
WIRED
CONTROLLER
(OPTIONAL)
CN_ID COIL
CN_STP
CN_FAN FB
L
COMP
COMP
N1 N
AS
L
WHITE
