6

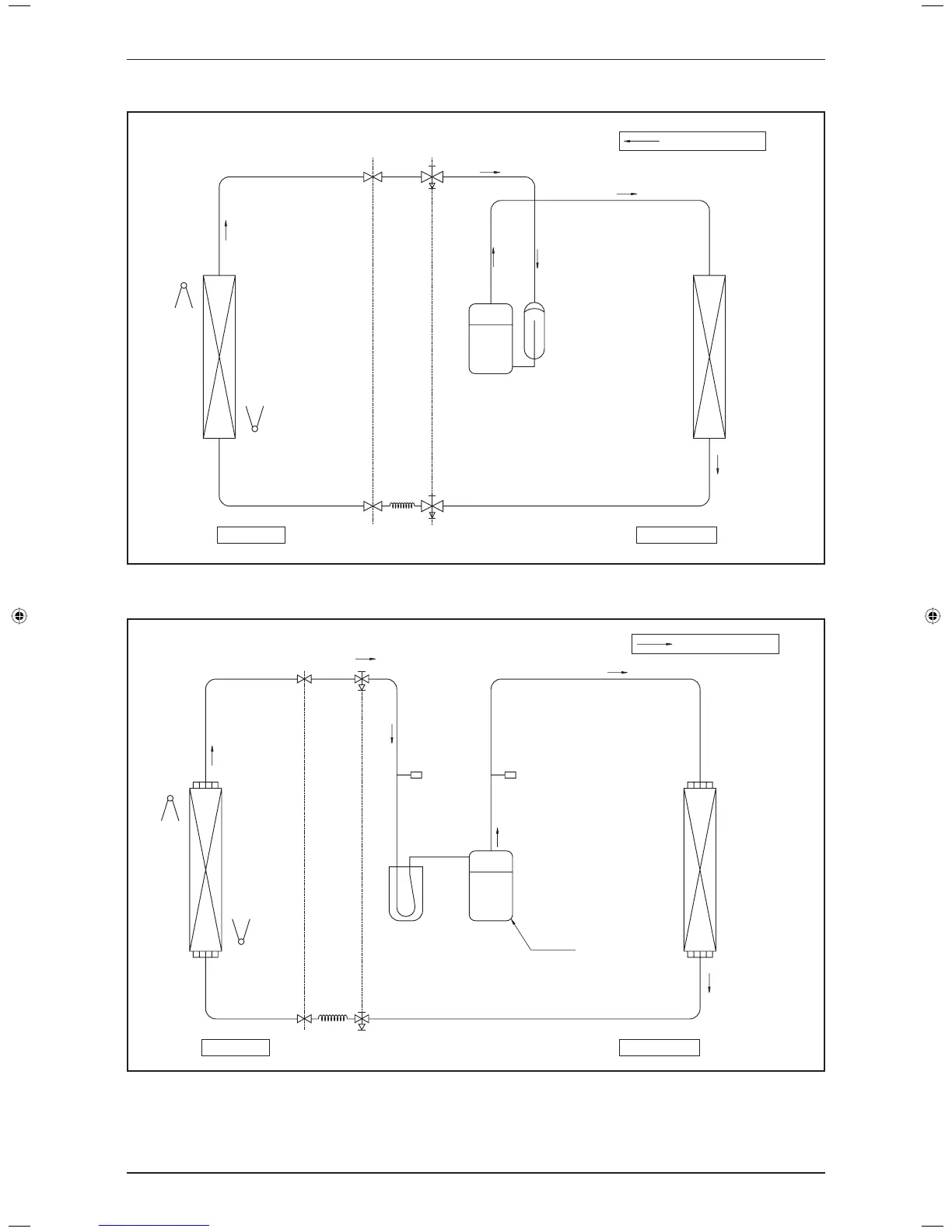

Application Information
Model: FT30FXV1 – R28CXV1
COOLING OPERATION
INDOOR UNIT OUTDOOR UNIT
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
DISCHARGE
ACCUMULATOR
COMPRESSOR
3 WAY
VALVE
3 WAY
VALVE
ORIFICE
HEAT EXCHANGER
(OUTDOOR UNIT)
Model: FT30FXV1 – R30DXV1 / FT30FXV1 – R30DXY1
COOLING OPERATION
INDOOR UNIT OUTDOOR UNIT
DISCHARGE
ACCUMULATOR
LOW
PRESSURE
SWITCH
HIGH
PRESSURE
SWITCH
3 WAY
VALVE
3 WAY
VALVE
ORIFICE
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
HEAT EXCHANGER
(OUTDOOR UNIT)
COMPRESSOR
DAIKIN_FT(Y).indb 6DAIKIN_FT(Y).indb 6 10/15/2012 4:27:09 PM10/15/2012 4:27:09 PM
