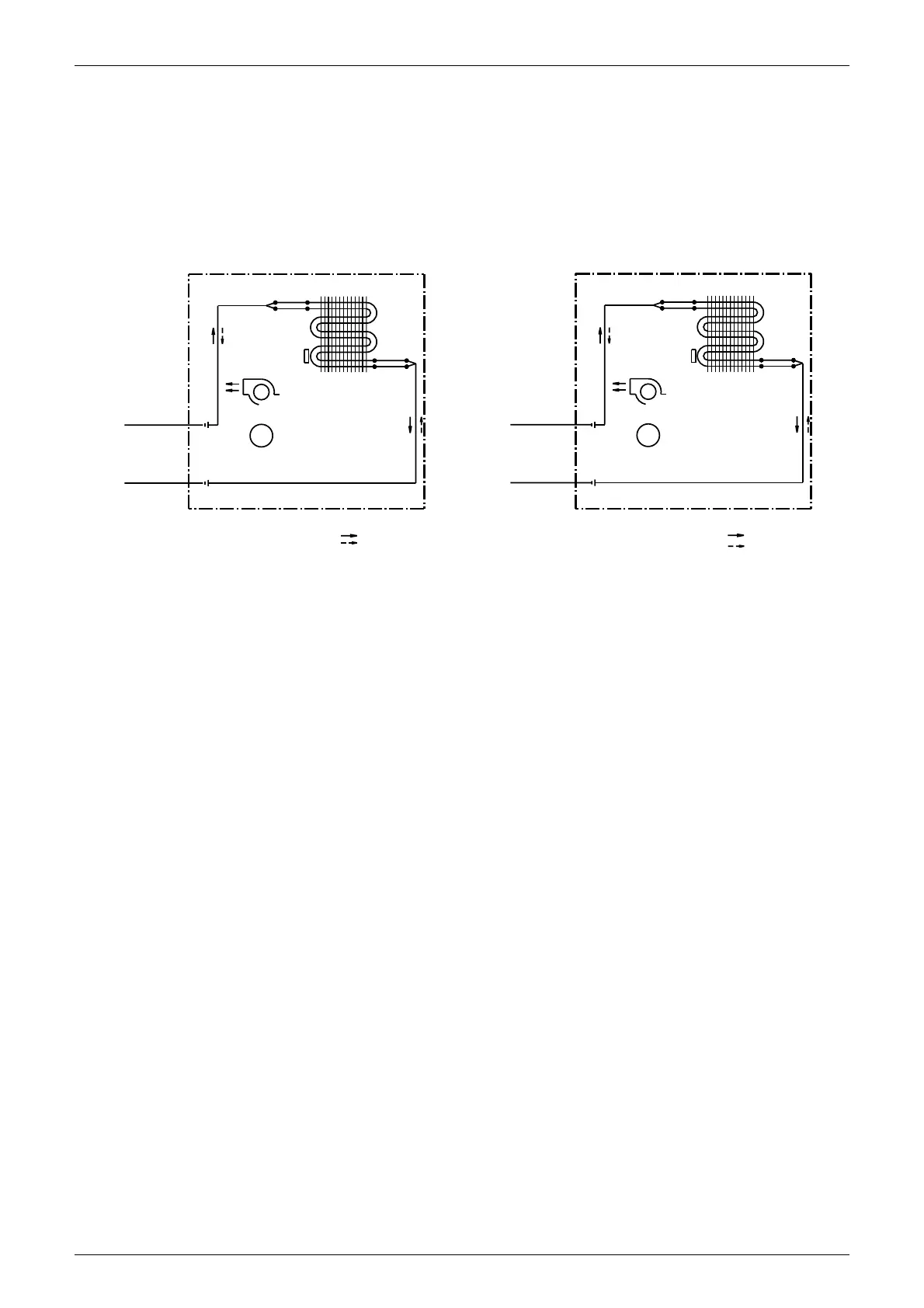

Piping Diagrams SiBE01-829
104 Appendix
1. Piping Diagrams
1.1 Indoor Units
FTYN25GXV1B, FTY25GXV1 FTYN35GXV1B, FTY35GXV1
M
HEAT EXCHANGER
7.0CuT
FAN MOTOR
4.8CuT
(9.5CuT)
FIELD PIPING
COOLING
7.0CuT
(6.4CuT)
HEATING
7.0CuT
INDOOR UNIT
9.5CuT
THERMISTOR
ON HEAT EXCH.
REFRIGERANT FLOW
CROSS FLOW FAN
7.0CuT
FIELD PIPING
4D059933
CROSS FLOW FAN
FAN MOTOR
7.0CuT
HEAT EXCHANGER
REFRIGERANT FLOW
(12.7CuT)
THERMISTOR
ON HEAT EXCH.
FIELD PIPING
12.7CuT
4.8CuT
COOLING
7.0CuT
(6.4CuT)
HEATING
M
7.0CuT
7.0CuT
INDOOR UNIT
FIELD PIPING
4D059934
