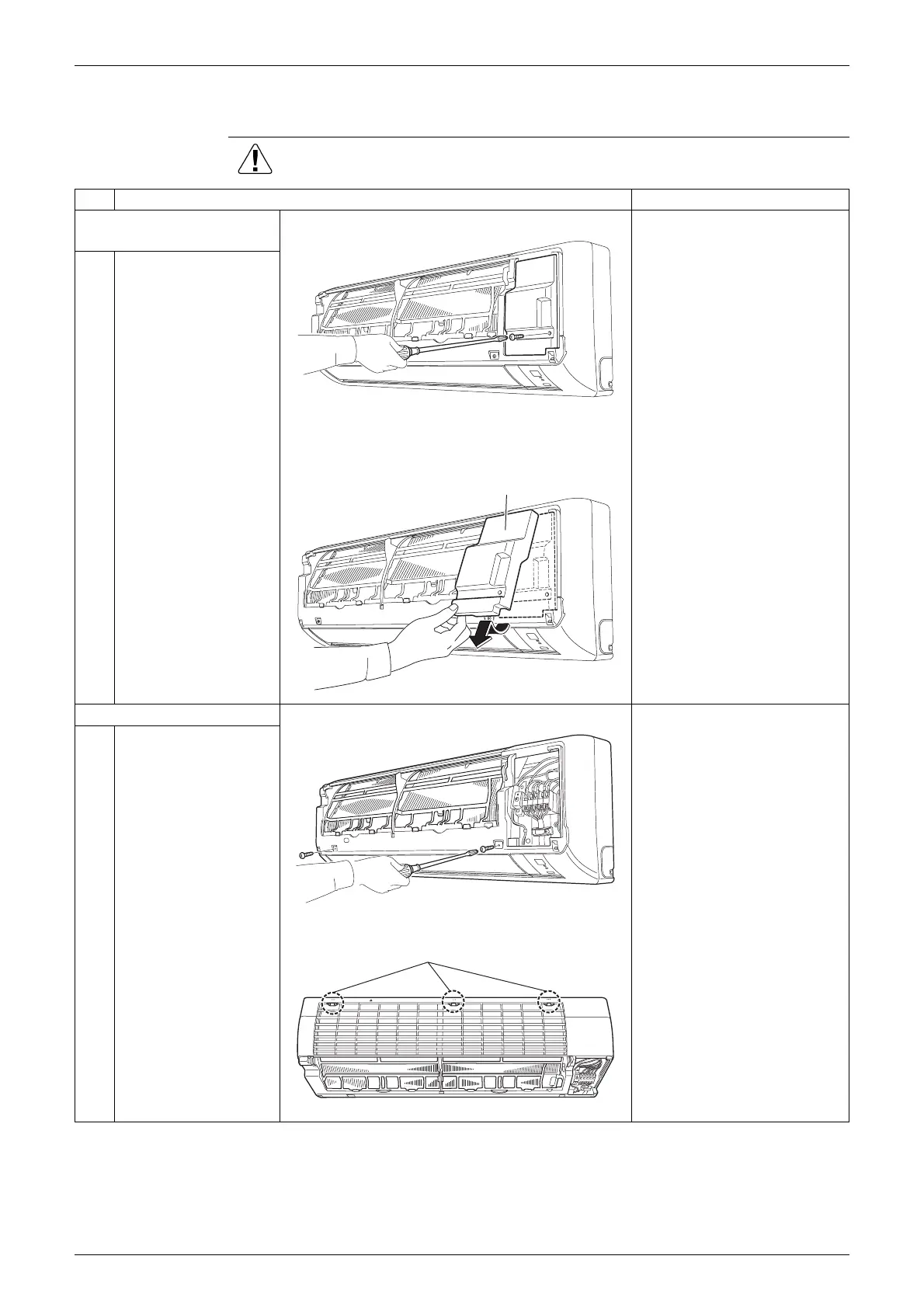

1.3 Removal of Front Grille
Procedure Warning Be sure to wait 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1. Removing the service
cover
1
Remove the screw of
the service cover.
Preparation

Remove the front panel
according to the “Removal
of Front Panel”.

No field setting switch is
inside it.

You can remove the front
grille without detaching the
service cover.
2
Pull out the service
cover diagonally down
in the direction of the
arrow.
2. Removing the front grille
1
Remove the 2 screws,
in the right and the left,
which fix the main body
with the front grille.
2
Undo the 3 hooks on
the top of the front
grille.
The front grille has 3
hooks on the center
and the both sides of
the upper part.

Refer to the removal
procedure in a reverse way
when reassembling.
(R8574)
(R8575)
Service cover
(R8576)
(R8577)
Hooks
