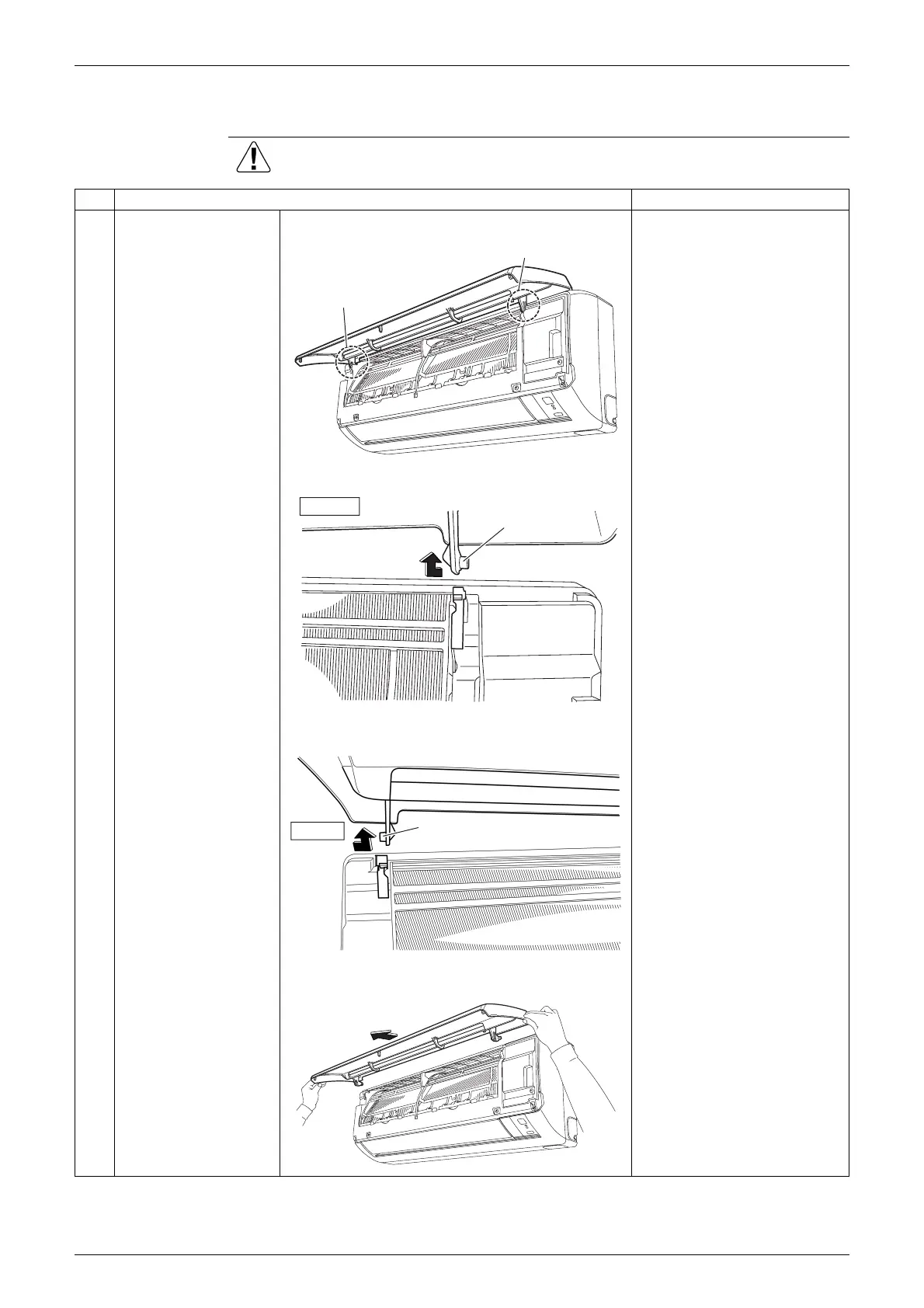

62 Removal Procedure
1.2 Removal of Front Panel
Procedure Warning Be sure to wait 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1
Open the front panel
over the position where
it will stop.
Preparation

Remove the air filter
according to the “Removal
of Air Filter”.
2
Slide the right rotary
shaft to the left and
release it.

The rotary shaft on the each
side can be removed easily
by sliding each shaft
inwards.
3
Slide the left rotary
shaft to the right and
release it.
4
Remove the front panel. Caution on Mounting

When mounting the front
panel, fit the right and left
rotary shafts one by one into
the grooves and fully push
them in position.
Left side
Right side
(R8571)
Right side
Rotary shaft
(R8572)
Left side
Rotary shaft
(R8029)
(R8573)
