Daikin FTYN35GXV1B User Manual

SiBE01-829 Indoor Unit
Removal Procedure 79

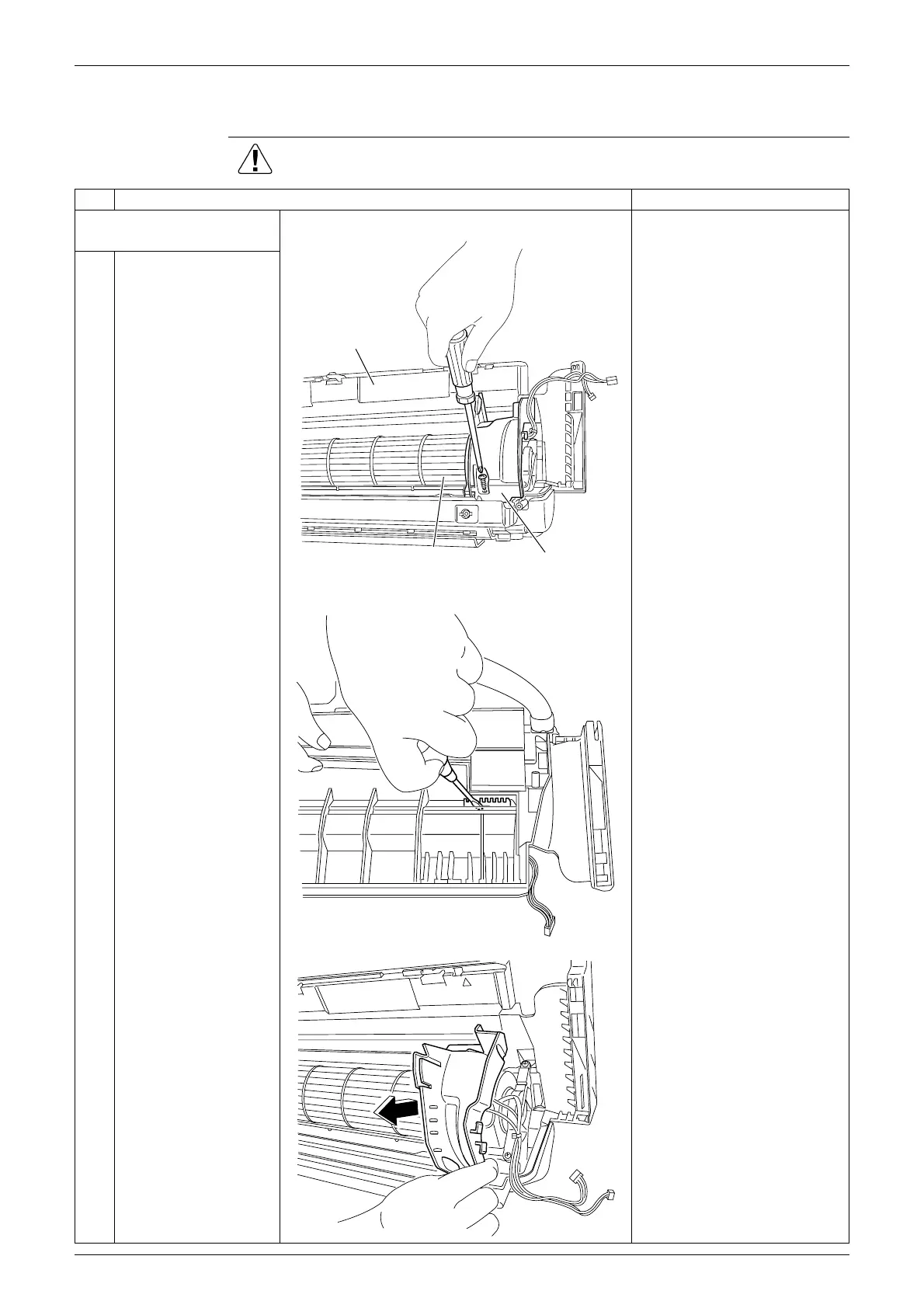

1.8 Removal of Fan Rotor
Procedure Warning Be sure to wait 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1. Remove the right side
panel
Preparation

Remove the heat exchanger
according to the “Removal
of Heat Exchanger”.
1
Loosen the screw of the
side panel (right).
2
Undo the hook of the
side panel by a flat
driver (back).
3
Remove the side panel
(right).
Bottom frame assembly
Right side panelCross flow fan
(R8621)
(R8622)
(R8623)
