72 Removal Procedure
1.6 Removal of PCB / Swing Motor
Procedure Warning Be sure to wait 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points

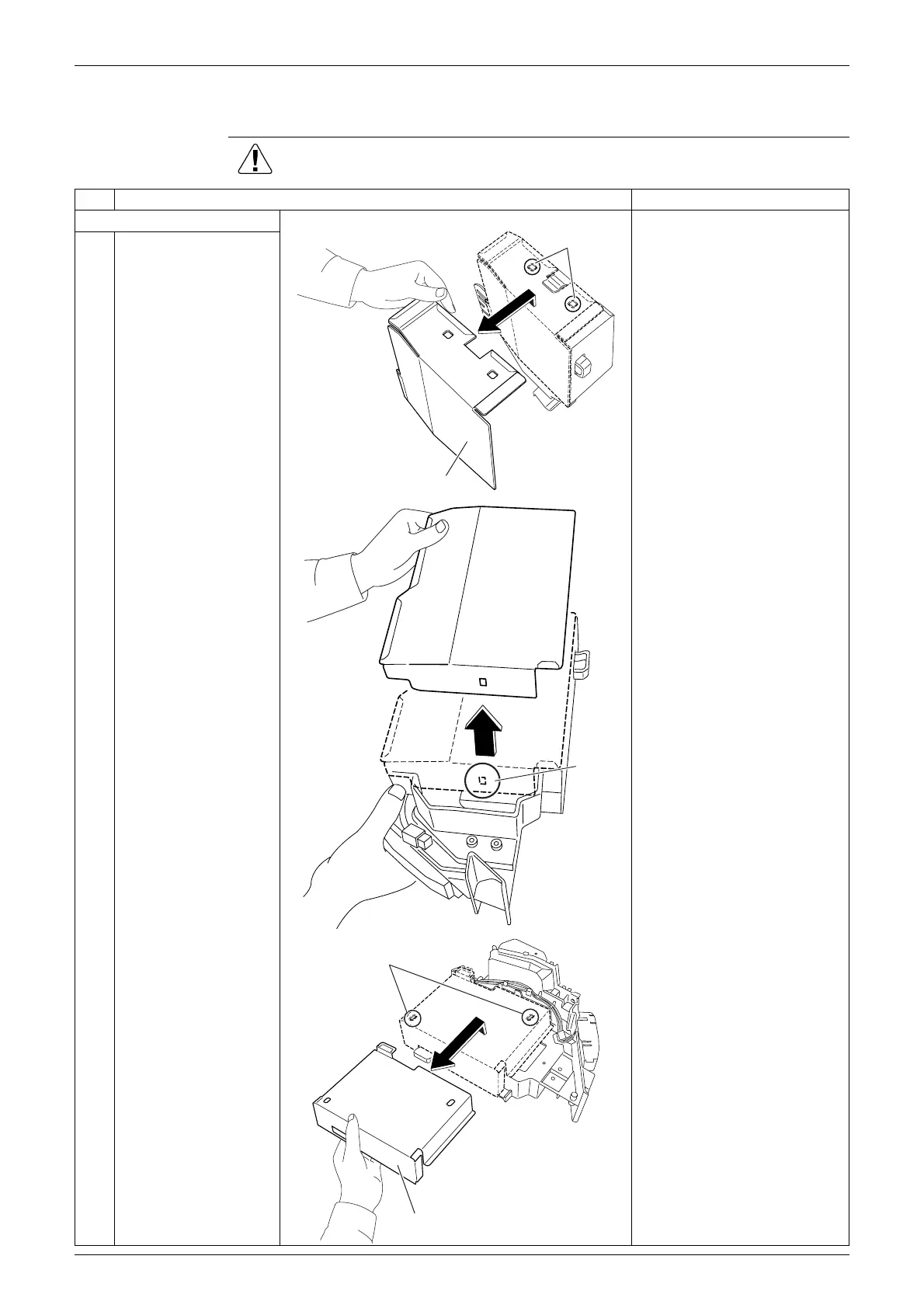

1. Removing the shelter Preparation

Remove the electrical box
according to the “Removal
of Electrical Box”.
1
To remove the shelter
(1), unfasten the hooks
at the upper 2 positions
of the shelter.
2
Unfasten the hook at
the lower position, and
remove the shelter (1).
3
Lift the shelter (2) and
unfasten the 2 hooks.
4
Slide the shelter (2),
and remove.
(R8603)
Hooks
Shelter (1)
Hook
(R8604)
(R8605)
Hooks
Shelter (2)
