Daikin FTYN35GXV1B User Manual

SiBE01-829 Indoor Unit
Removal Procedure 73
5

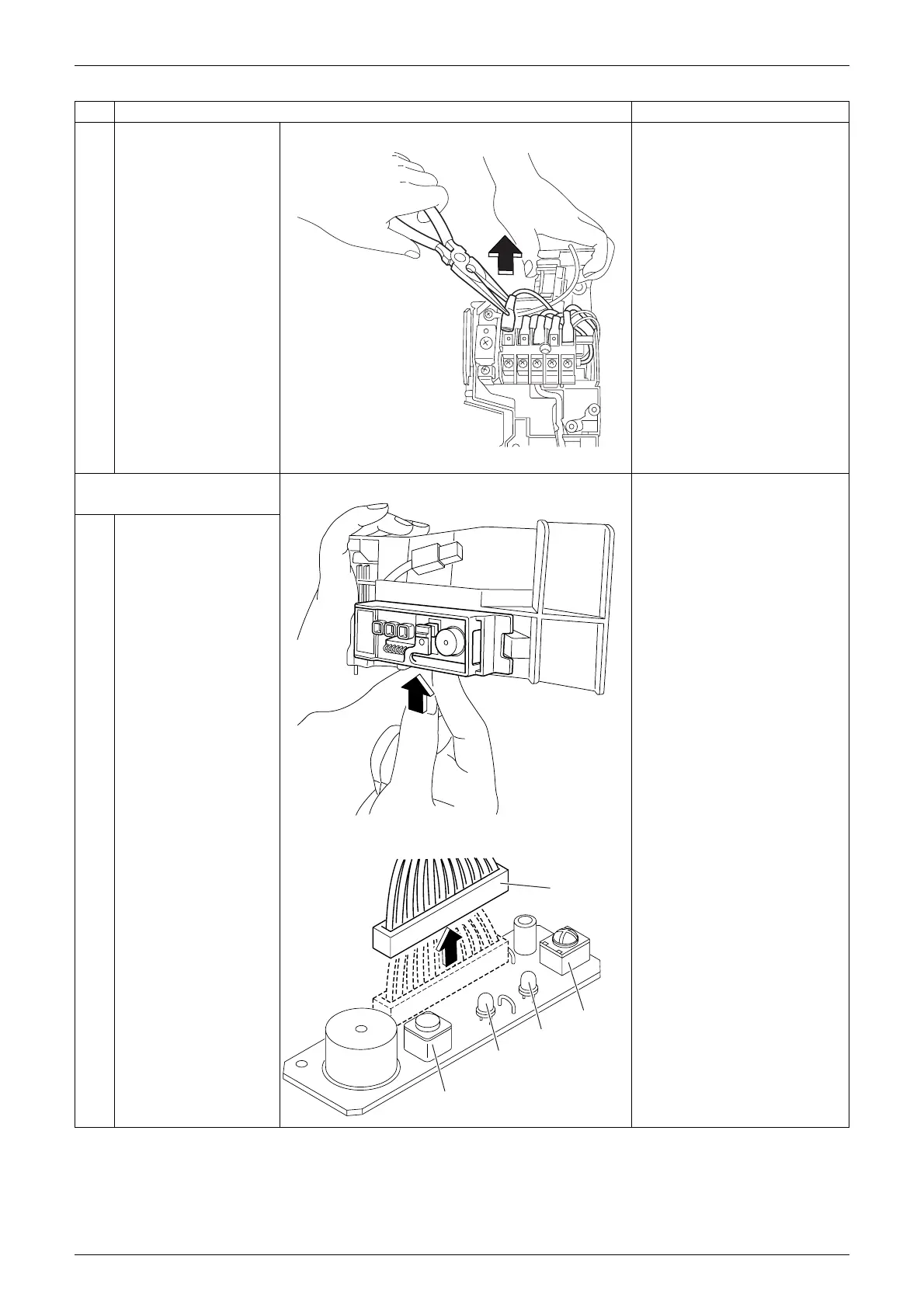

Disconnect the wire
harnesses with pliers.
2. Removing the display
PCB
Preparation

Remove the electrical box
according to the “Removal
of Electrical Box”.
1
Lift the lower part of the
display PCB to remove.
2
Disconnect the
connector [CN_MB]
from the display PCB.
3
The figure shows the
names of the display
PCB component parts.
Step Procedure Points
(R8606)
(R8607)
ON/OFF switch
TIMER lamp
Signal receiver
[CN_MB]
Operation lamp
(R8608)
