Daikin FTYN35GXV1B - Page 80

SiBE01-829 Indoor Unit
Removal Procedure 69

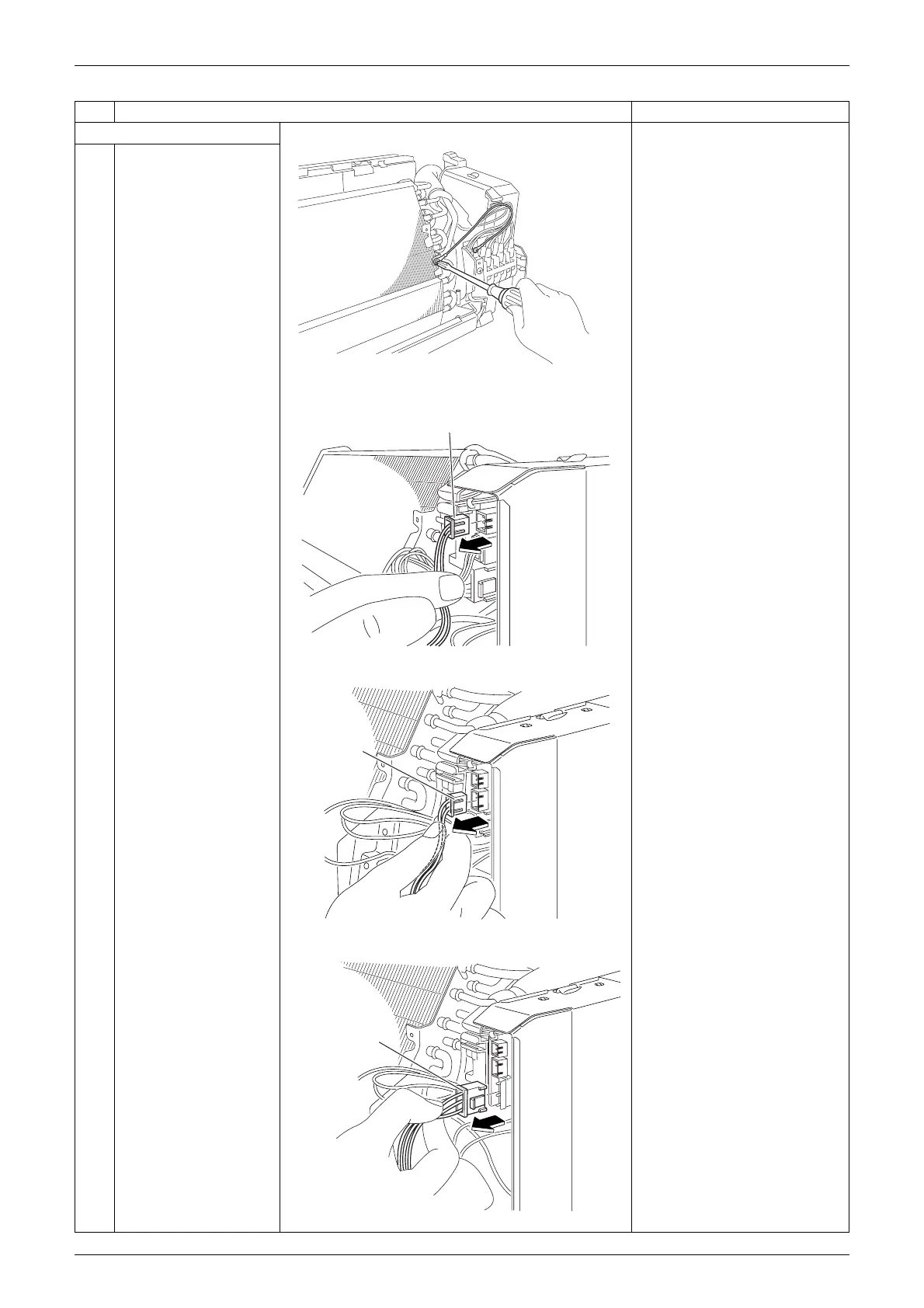

2. Remove the electrical box.
1
Disconnect the earth
wire by removing the
screw.
2
Disconnect the
connector of the fan
motor [CN_FANFB].
3
Disconnect the
connector of the swing
motor [CN_STP].
4
Disconnect the
connector of the fan
motor [CN_FAN].
Step Procedure Points
(R8594)
(R8595)
[CN_FANFB]
(R8596)
[CN_STP]
(R8597)
[CN_FAN]
