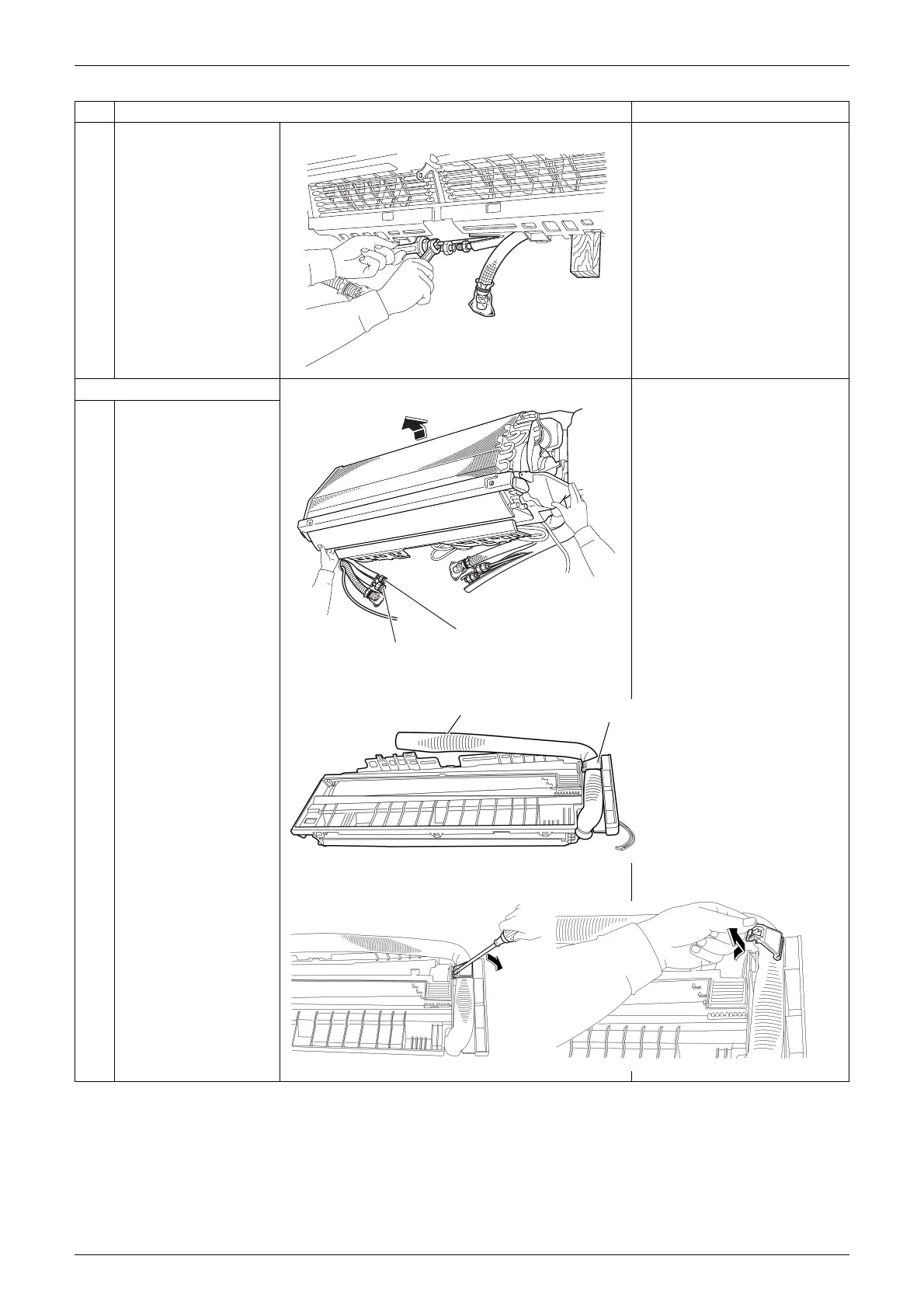

Removal Procedure 77
5
Unscrew the flare nut
for liquid piping by 2
wrenches.
2. Removing the indoor unit

When the pipes are
disconnected, protect the
both openings of pipe side
and unit side from entering
of moisture.
1
Remove the indoor unit
from the installation
plate.
2
Release the hook of the
piping fixture on the
back of the unit.
Step Procedure Points
(R8018)
Gas piping
Liquid piping
(R8618)
Auxiliary piping
Piping fixture
(R8038)
(R8039)
