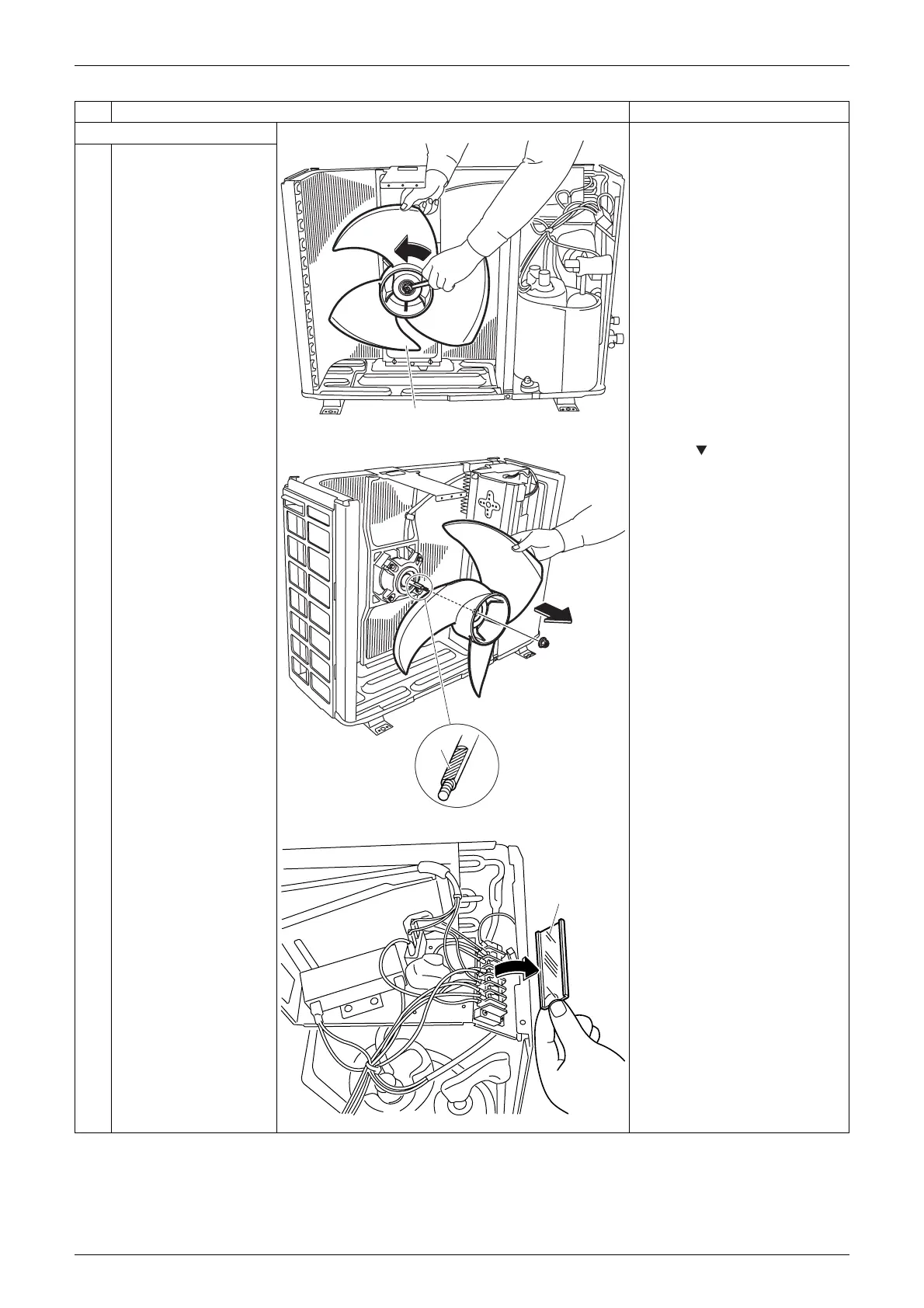

SiBE01-829 Outdoor Unit
Removal Procedure 87
3. Remove the fan motor.
The screw has clockwise
winding.
1
Unscrew the washer-
fitted nut (M10) of the
propeller fan with a
spanner.
2
Remove the propeller
fan.
Align mark of the
propeller fan with D-cut
section of the motor shaft
when reassembling.
3
Remove the terminal
cover.
Step
Procedure Points
(R8535)
Propeller fan
D-cut
(R7197)
Terminal cover
(R8536)
