2-7
PPC RM
CFCCC EFH EFL RPP
PCC1
PCC2
C/B
BAT (9V)
MODEM
(option)
PTCT
Dip Switch
for Emergency
Operation
(SMV adapter)
CONTROLLER
(DECOS 3C)
TrC (400V→24V,13V)
under PTCT

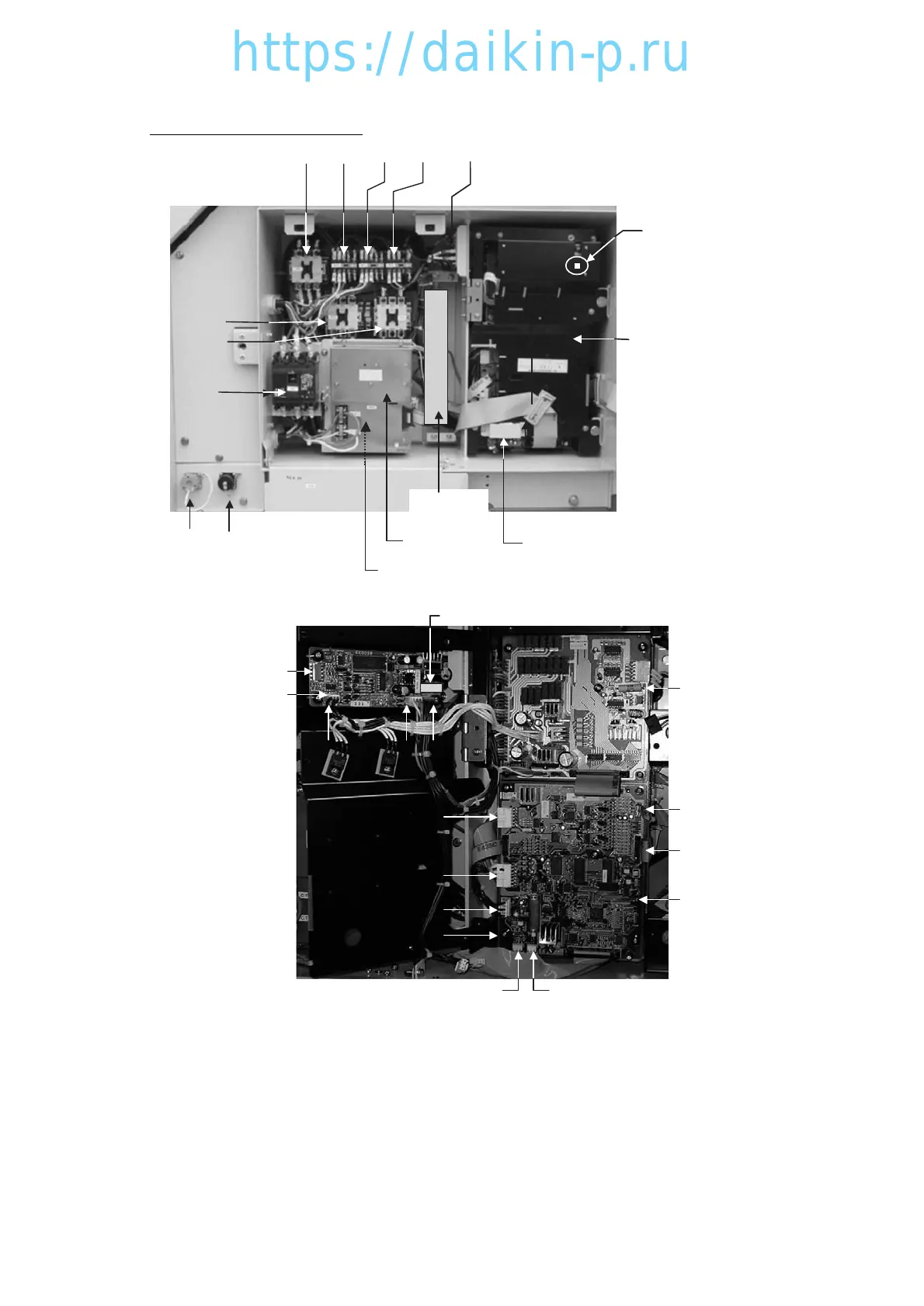

[Control Box]
BAT :Back-up Battery (9V)
CC :Magnetic Contactor, Compressor
CFC :Magnetic Contactor, Condensor Fan Motor
C/B :Circuit Breaker
EFH :Magnetic Contactor, Evaporator Fan Motor,
High Speed
EFL :Magnetic Contactor, Evaporator Fan Motor,
Low Speed
PCC1:Phace Correction Contactor 1
PCC2:Phace Correction Contactor 2
PTCT:PTCT Board
RPP :Reverse Phace Protector
TrC :Transformer
[Controller]
EC1 :CPU Board
EC2 :I/O Board
EC6 :SMV Adapter Board
· Control box Inside detail
CN18
CN84
SMV Adapter Board
EC6
CN17
CN16
CN15
Fuse7
CN14CN19
EC2
I/O Board
EC1
CPU Board
CN11
CN12
CN82 CN81CN83
