2-22

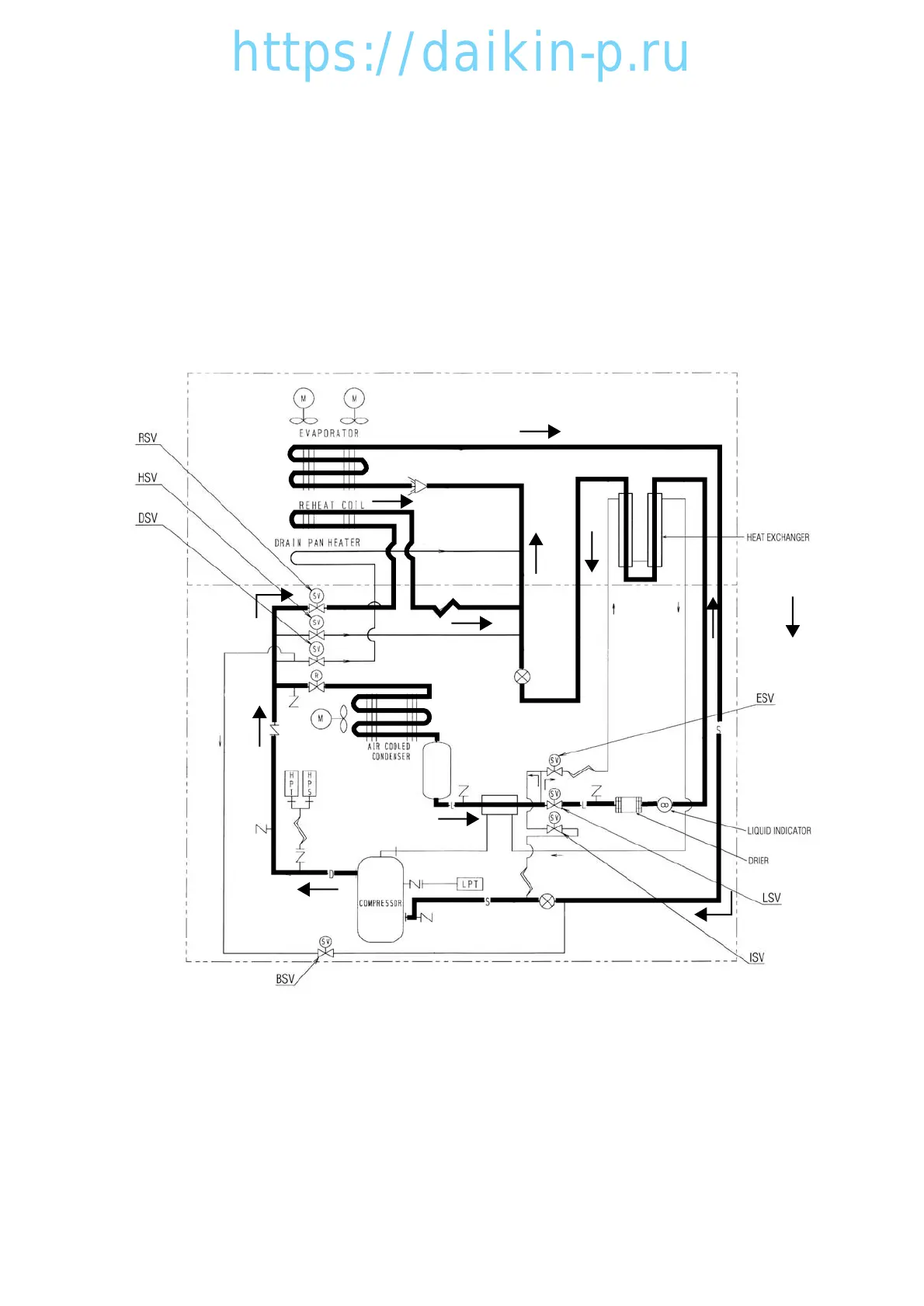

(5) Dehumidification ※If reheat coil and humidity sensor (Optional) is equipped:
The unit have dehumidification control by a reheat coil, which is under the evaporator coil. To execute
dehumidification, controller setting is required. (Refer to Page 3-12)
In dehumidification, the Reheat Solenoid Valve (RSV) opens to give high pressurized refrigerant to
reheat coil. The "DEHUMID" LED lamp will light up.
The following setting can be made:
1) Non bumidification control
2) Humidification control (OPTION)
Dehumidification range: 30%RH–95%RH
To Next Page
