Daikin RXR28EV1B8 - Remove the front panel; Remove the outdoor fan

Si001275 Outdoor Fan / Fan Motor
Removal Procedure 9
3

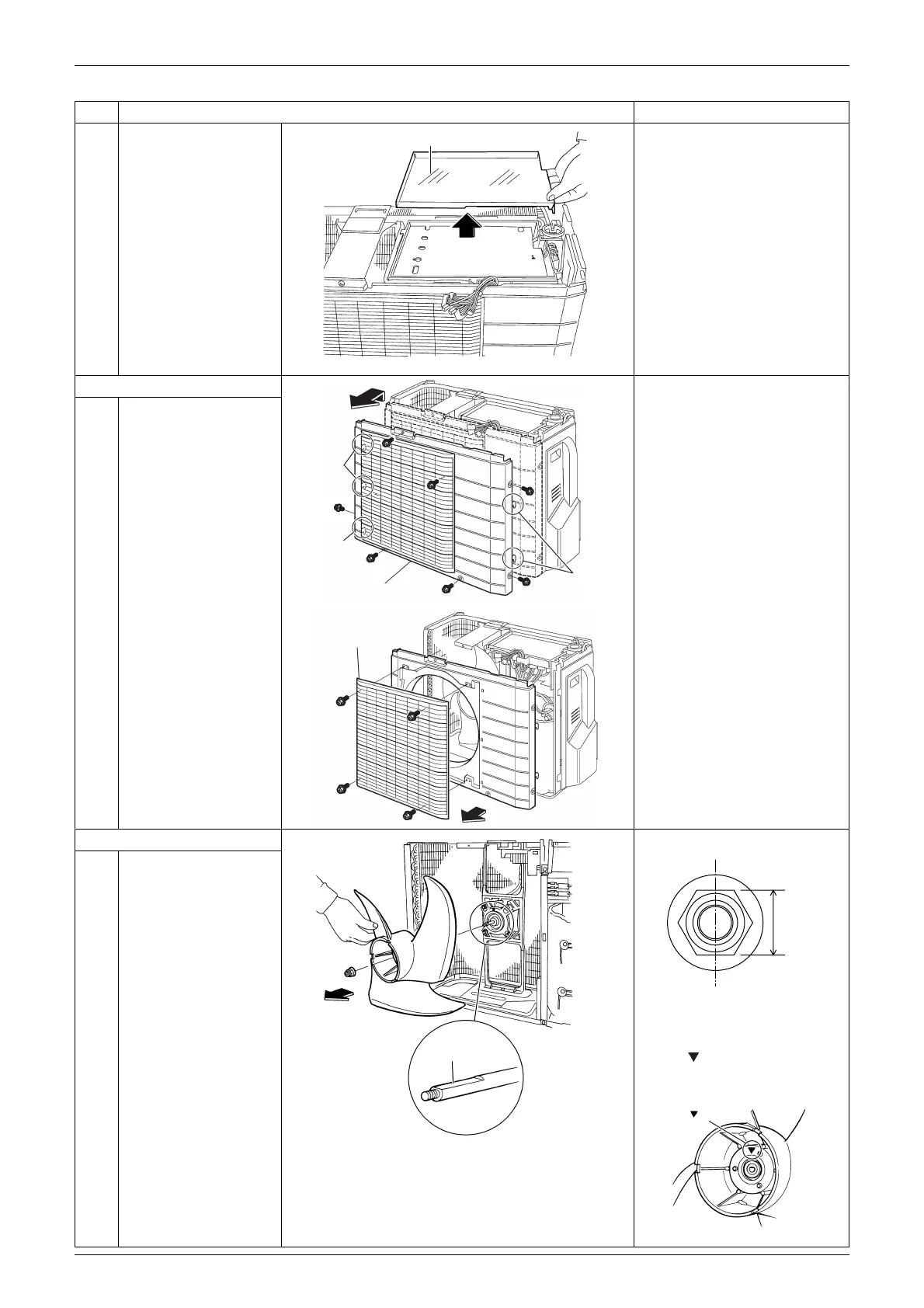

Remove the insulation
sheet.
3. Remove the front panel.
1
2
Remove the 7 screws.
Unfasten the 5 hooks
and remove the front
panel.
3
Remove the 4 screws
and remove the front
grille.
4. Remove the outdoor fan.

Nut size: M6

When reassembling, align
the mark of the outdoor
fan with the D-cut section of
the motor shaft.
1
Remove the nut and
remove the outdoor
fan.
Step Procedure Points
(R13997)
Insulation sheet
(R13998)
Hook
Hook
Hook
Front panel
(R14000)
Front grille
D cut
(R18367)
10 mm
(R17216)
mark
(R5834)
