Daikin RXR28EV1B8 - Humidifier Unit

Humidifier Unit Si001275
2 Removal Procedure
1. Humidifier Unit
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.

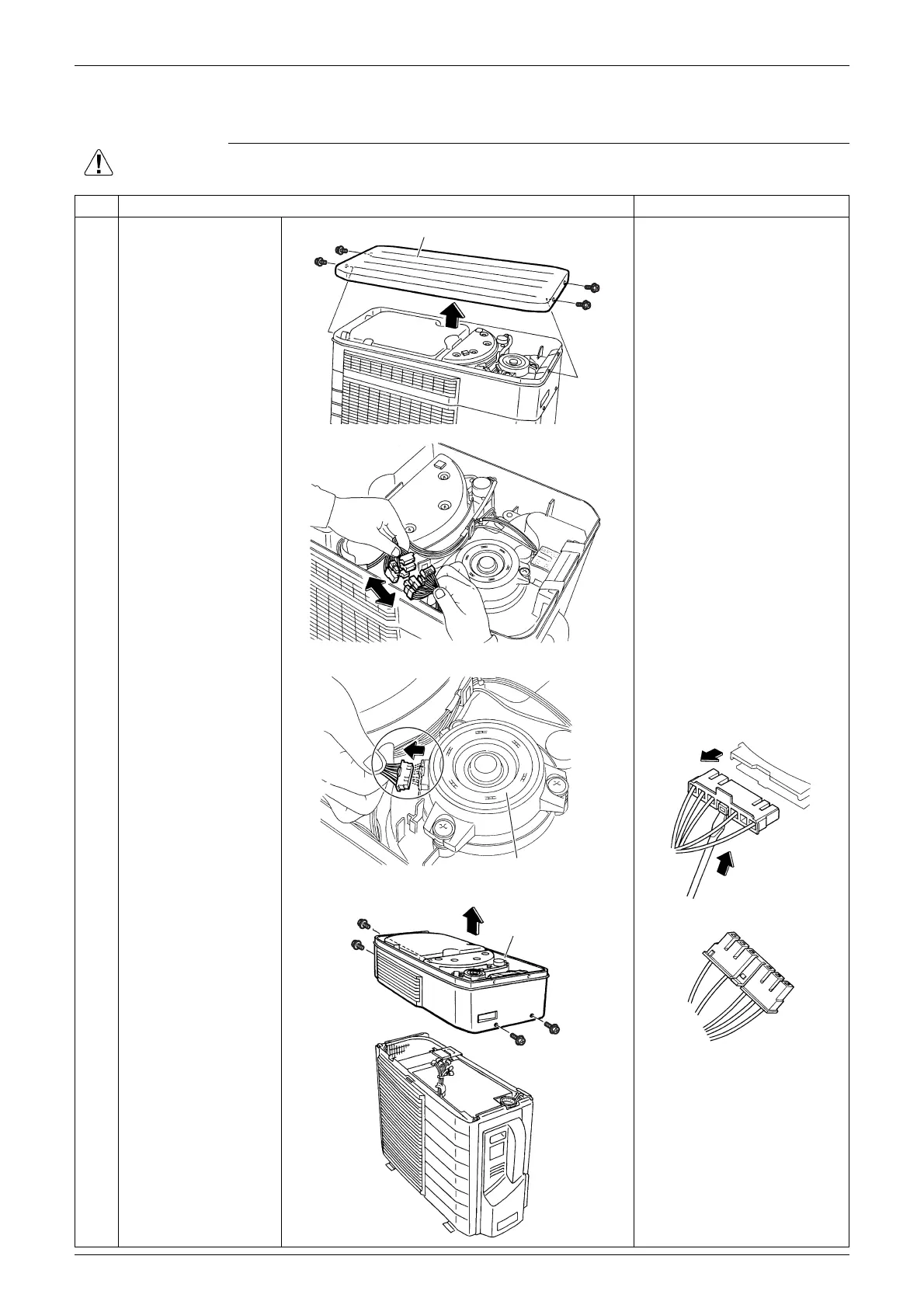

Step Procedure Points
1
Remove the 4 screws
and remove the top
panel.
2
Disconnect the 5 relay
connectors.
3
Disconnect the
connector for the
humidifier fan motor.

Pull out the connector while
pushing up the hook on the
bottom side.

When installing the
humidifier unit, do not forget
to connect the relay
connectors.
4
Remove the 4 screws
and remove the
humidifier unit.
(R13982)
Top panel
(R5792)
(R13983)
Humidifier fan motor
<From the back side>
(R5796)
(R13984)
Humidifier unit
