Si001275 Reactor / Partition Plate
Removal Procedure 21

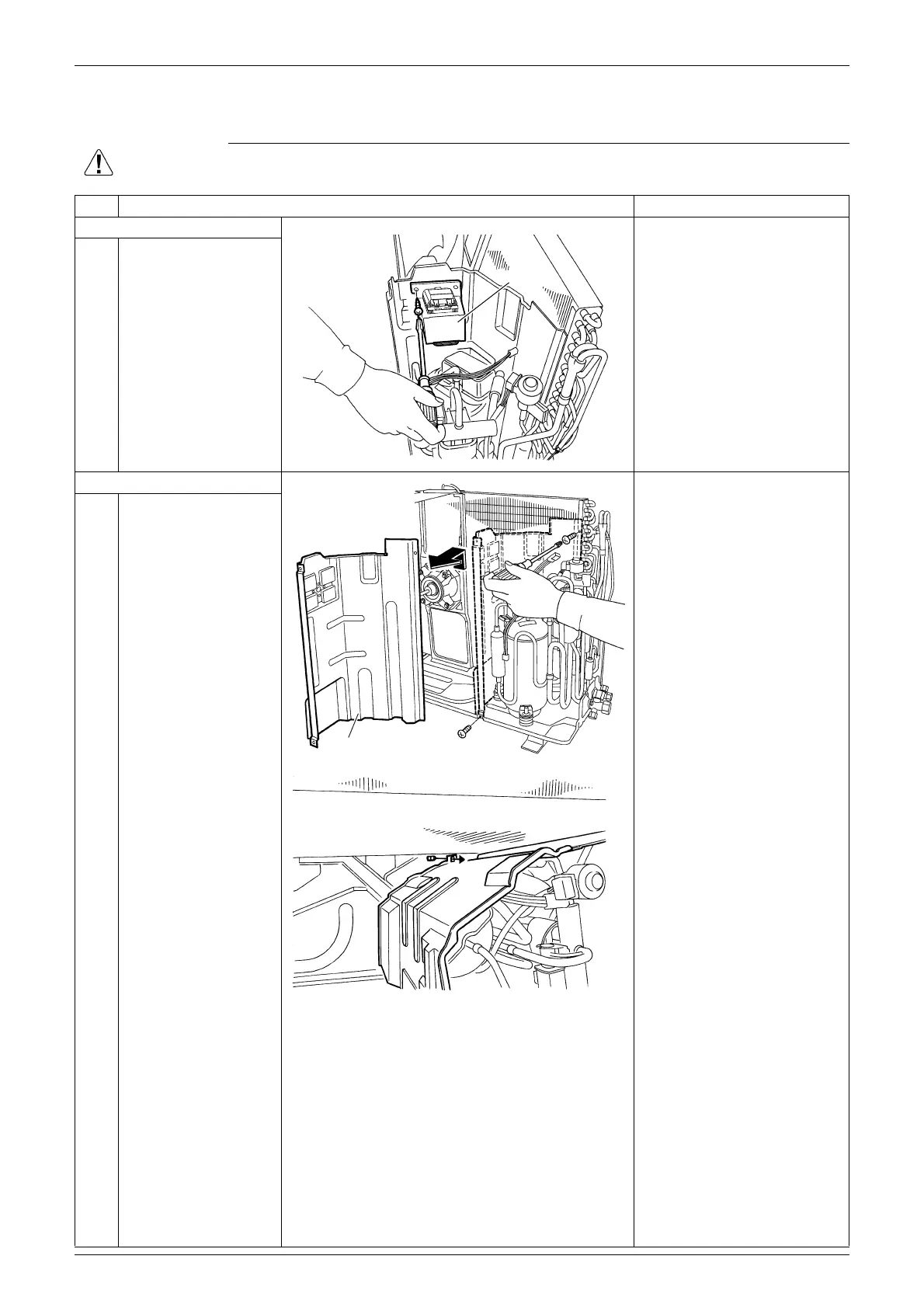

11.Reactor / Partition Plate
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1. Remove the reactor.
1
Remove the screw and
remove the reactor.
2. Remove the partition plate.
1
Remove the 2 screws.
2
Lift the partition plate
and remove it.

When reassembling, make
sure to catch the lower hook
of the partition plate.
(R18484)
Reactor
(R14025)
Partition plate
(R5884)
