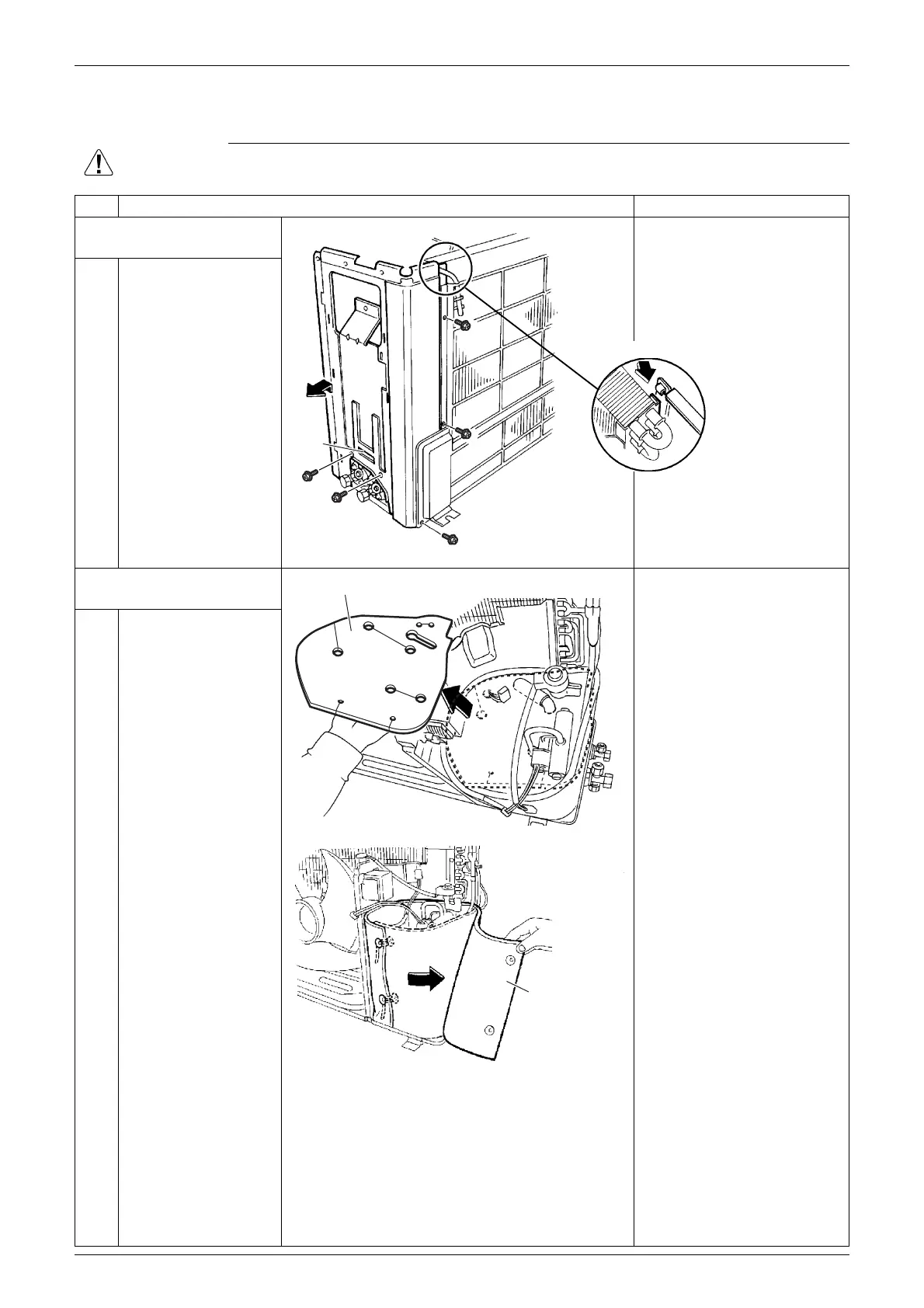

Daikin RXR28EV1B8 - Sound Blankets; Remove the right side panel; Remove the sound blankets

Si001275 Sound Blankets
Removal Procedure 17
9. Sound Blankets
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1. Remove the right side
panel.
1
2
3
Remove the 3 screws
on the back side of the
right side panel.
Remove the 2 screws
on the right side.
Lift the right side panel
to unfasten the 2 hooks
and remove it.
2. Remove the sound
blankets.

Since the piping ports on
the sound blanket are torn
easily, remove the blanket
carefully.
1
Remove the sound
blanket (top).
2
3
Untie the strings and
open the sound blanket
(outer).
Pull the sound blanket
(outer) out.
(R18482)
Hook
Hook
(R14055)
Sound blanket (top)
(R14023)
Sound blanket
(outer)
