Removal Procedure 15
8. PCB
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.

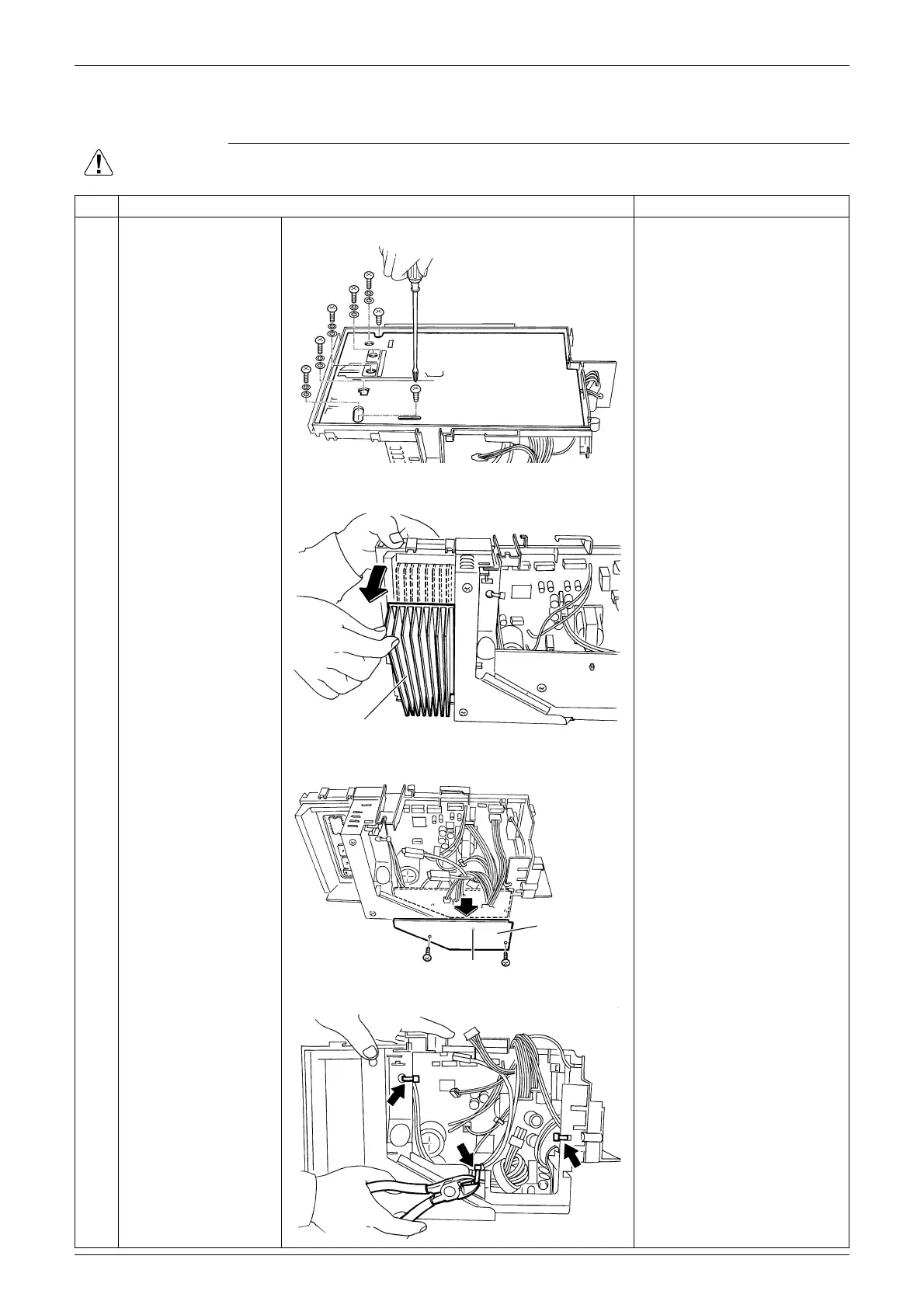

Step Procedure Points
1
Remove the 7 screws.
2
Detach the radiation
fin.

In working, be careful not to
break the PCB with the
excessive force because
the PCB and the radiation
fin are adhered to one
another.

When reassembling, make
sure to apply the silicon
grease evenly.
3
Remove the 2 screws
and detach the clip to
remove the radiation
shield plate.
4
Cut the 3 clamps.
(R14015)
(R18480)
Radiation fin
Clip
Radiation shield
plate
(R14016)
(R5864)
