Daikin RXR28EV1B8 - Page 16

Electrical Box Si001275

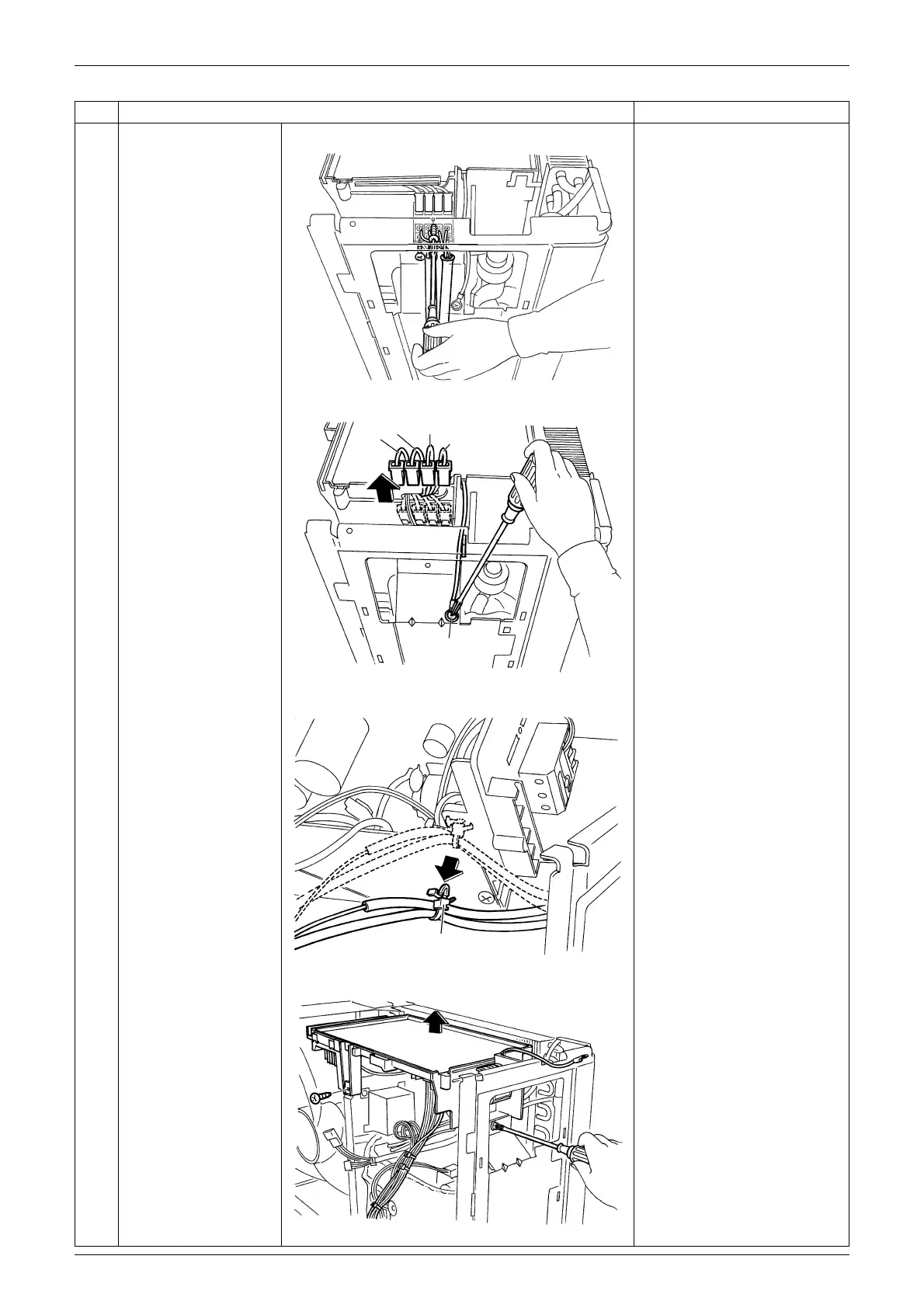

14 Removal Procedure
5
6
Remove the screw of
the terminal board.
Remove the screws
and disconnect the
connecting wires and
the power supply
cables.

Thermal fuse should be
replaced with the terminal
board.

You can work without
removing the terminal
board.
7 Disconnect the 4
connectors.
8 Remove the screw and
detach the earth wire.
9 Detach the clamp for
the thermistor
assembly from the
electrical box.
10
11
Remove the 2 screws
of the electrical box.
Lift the electrical box
and remove it.
Step Procedure Points
(R18478)
Black
White
Red
Green/Yellow
Earth
(R14011)
Clamp
(R14012)
(R18479)
