Daikin RXR28EV1B8 - Humidifying Fan Assembly and Damper Assembly; Remove the humidifying fan assembly

Si001275 Humidifying Fan Assembly / Damper Assembly
Removal Procedure 5
3. Humidifying Fan Assembly / Damper Assembly
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points

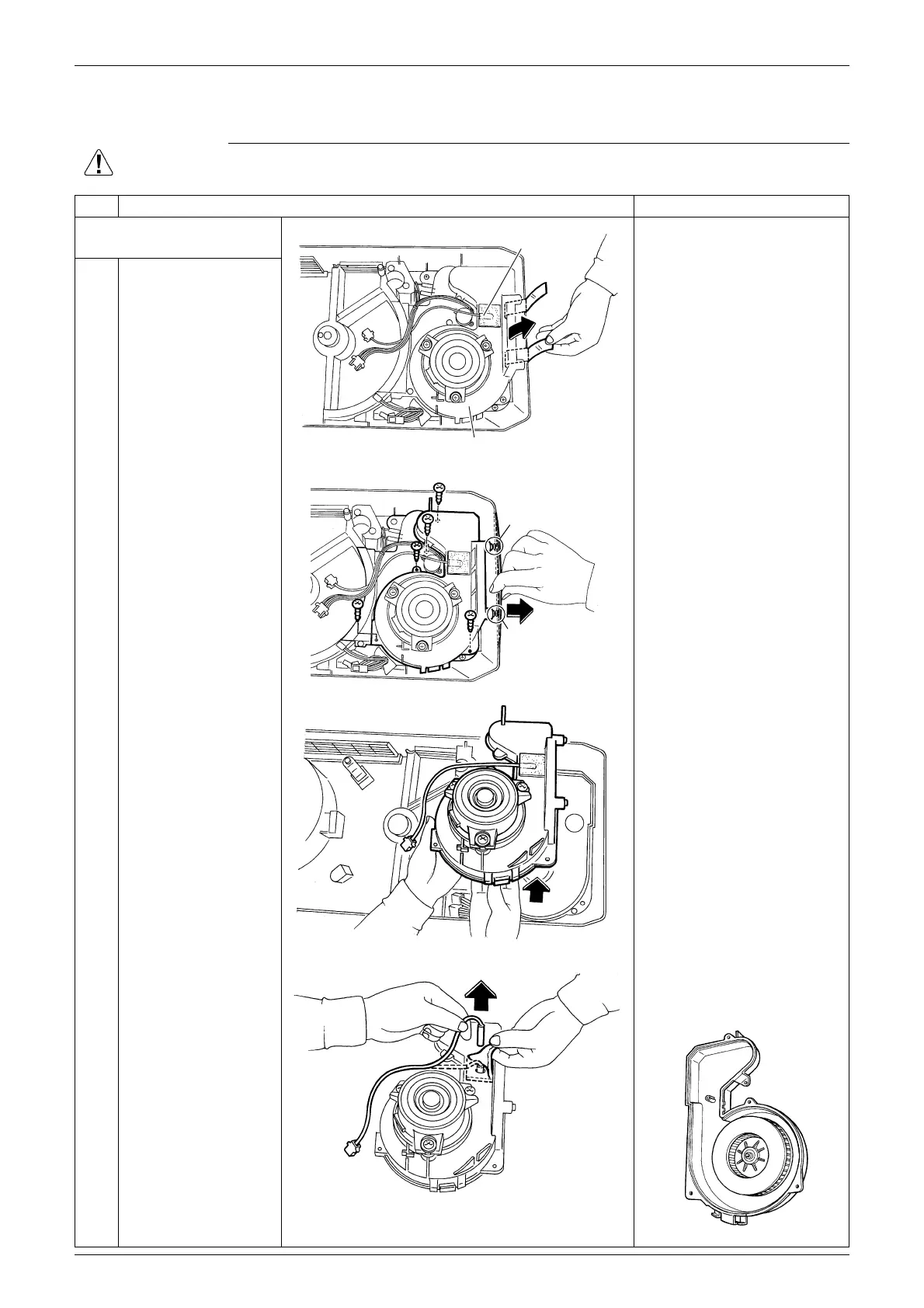

1. Remove the humidifying
fan assembly.
1
Peel off the 2 tapes.
2
3
Remove the 5 screws
of the humidifying fan
assembly.
Unfasten the 2 hooks
while bending the right
side panel.
4
Remove the
humidifying fan
assembly.

The humidifying fan
assembly should be
replaced as an assembly
set. (Disassembling of the
assembly can cause a
noise.)
5
Peel the seal material
and pull out the
humidifying thermistor.

Inside of the upper part of
the humidifying fan
assembly
(R13990)
Humidifying thermistor
Humidifying fan assembly
(R18365)
Hook
Hook
(R5813)
(R5814)
(R5815)
