Daikin RXR28EV1B8 - Remove the humidifying rotor motor

Heater Assembly / Humidifying Rotor / Humidifying Rotor Motor Si001275
4 Removal Procedure
2

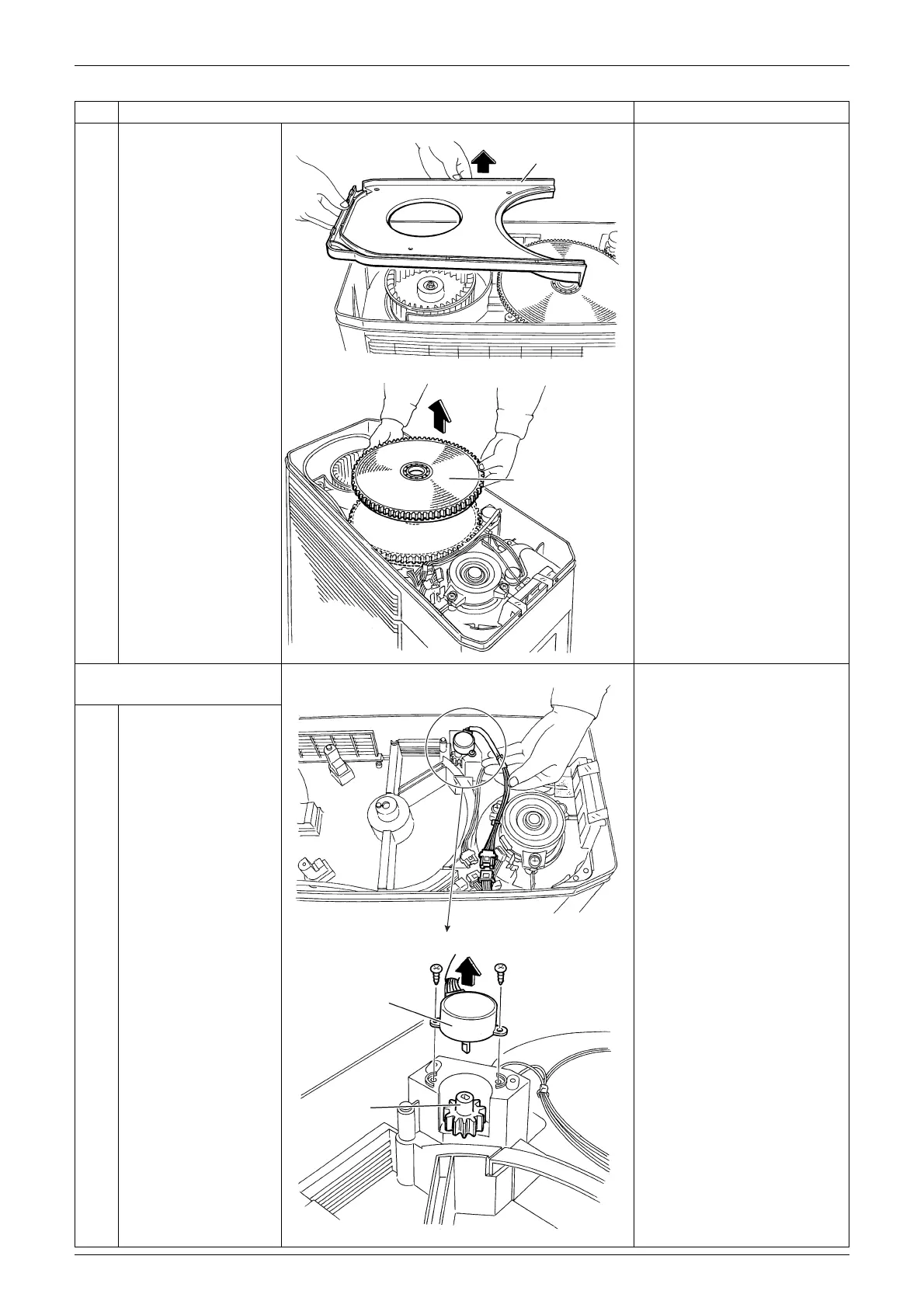

Remove the bell mouth
on adsorption side.
3
Remove the
humidifying rotor.

A heat catalyst (black) is
applied on the upper side.
3. Remove the humidifying
rotor motor.
1
Remove the 2 screws
and remove the
humidifying rotor
motor.
Step Procedure Points
Bell mouth
(R13988)
Humidifying rotor
(Moisture adsorption
element)
(R13989)
(R18769)
Humidifying rotor
motor
Rotor driving part
(R5809)
