Si001275 Electrical Box
Removal Procedure 13
7. Electrical Box
Warning
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.

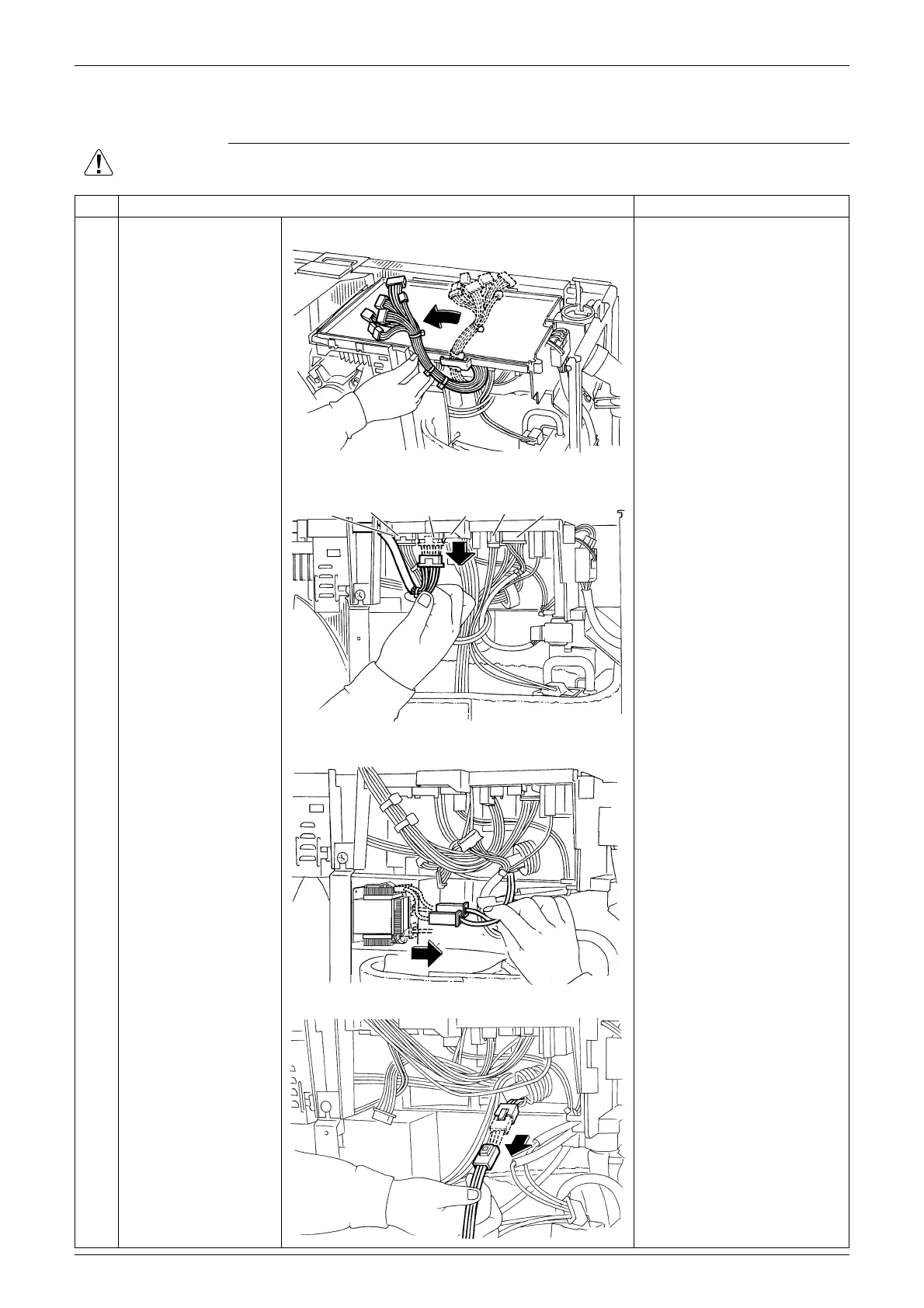

Step Procedure Points
1
Release the harnesses
for the humidifier unit
from the hook.
2
Disconnect the
connectors
[S20][S70][S72][S80]
[S90][S91].
[S20]: electronic expansion
valve coil
[S70]: fan motor
[S72]: humidifier fan motor
[S80]: four way valve coil
[S90]: thermistor assembly
[S91]: humidifying thermistor
3
Disconnect the 2
terminals from the
reactor.
When reassembling, you
can connect the 2
harnesses in either way
regardless of the color.
4
Disconnect the relay
harness for the
compressor.
(R14005)
[S70] [S72] [S80] [S20][S91] [S90]
(R18477)
(R18772)
(R14010)
To Next Page
