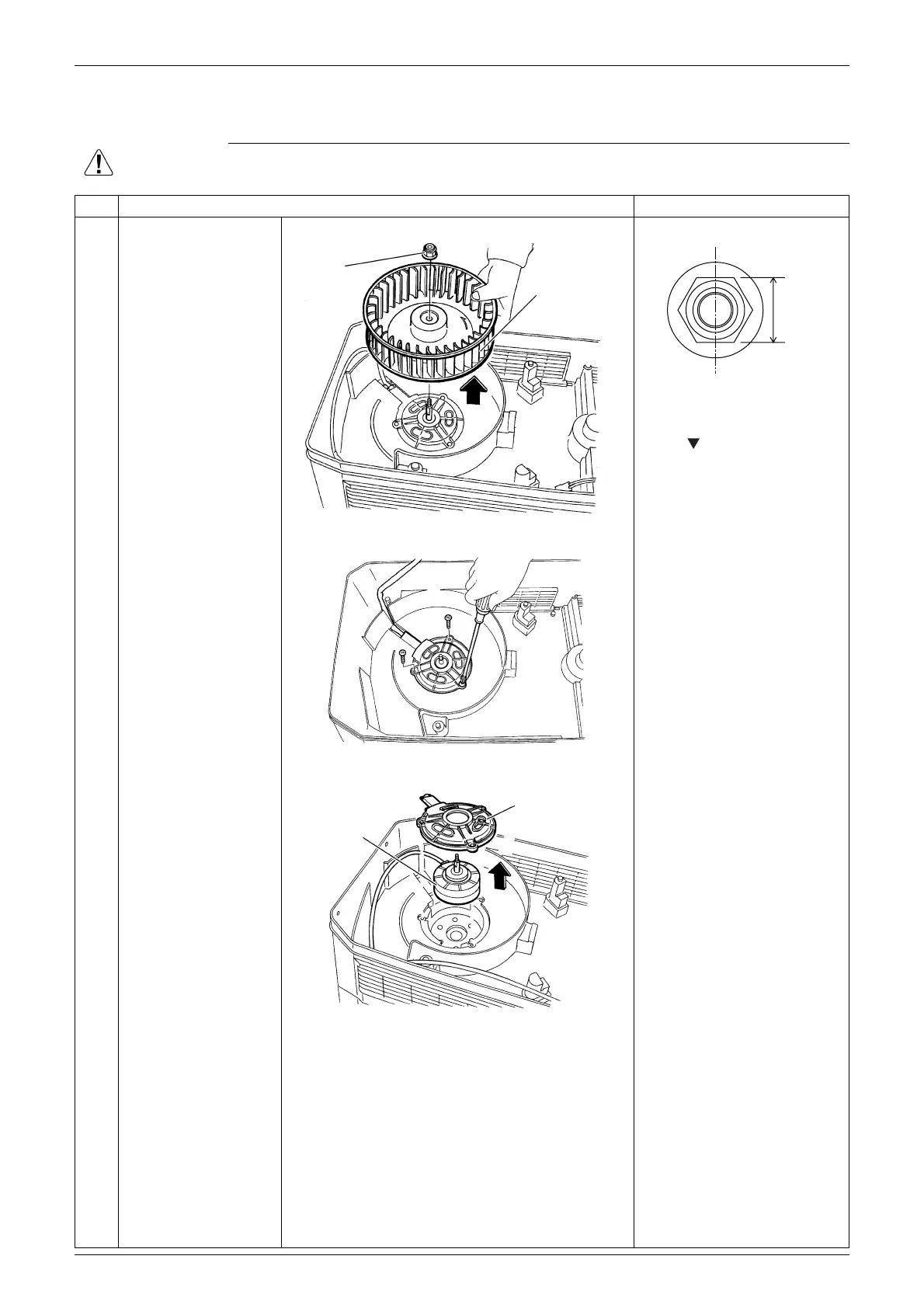

Removal Procedure 7
4. Hygroscopic Fan Motor
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1
Remove the nut and
remove the
hygroscopic fan.

Nut size: M6

When reassembling, align
the mark of the fan with
the D-cut section of the
motor shaft.
2
Remove the 3 screws
of the motor cover.
3
Remove the motor
cover and the
hygroscopic fan motor.
Nut
Hygroscopic
fan
(R13993)
10 mm
(R17216)
(R5822)
Hygroscopic
fan motor
Motor cover
(R13994)
