Daikin RXR28EV1B8 - Remove the damper assembly

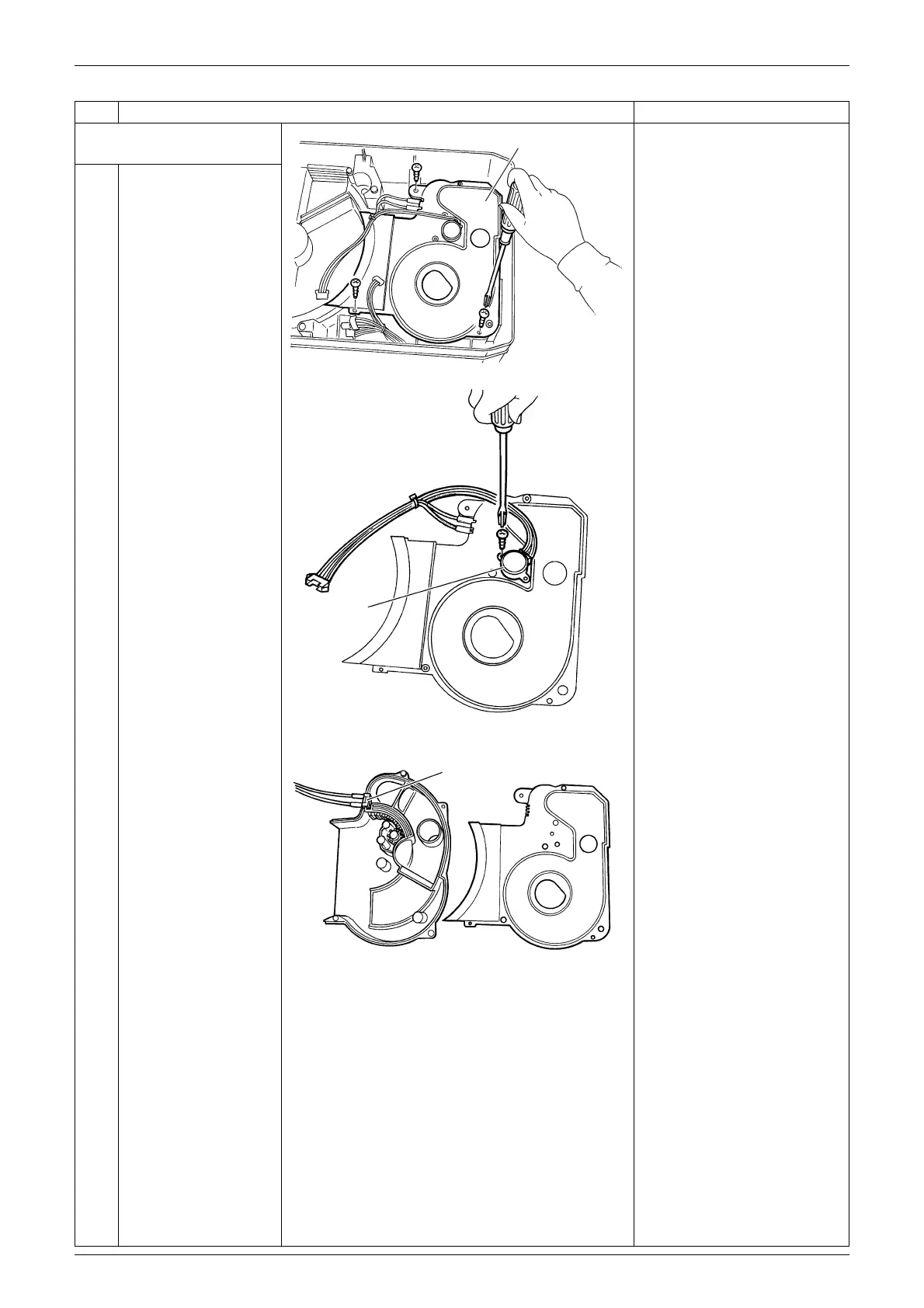

Humidifying Fan Assembly / Damper Assembly Si001275
6 Removal Procedure
2. Remove the damper
assembly.
1
Remove the 3 screws.
2
Remove the damper
assembly.
3
4
Remove the screw and
remove the damper
motor.
Disconnect the limit
switch.
Step Procedure Points
(R18770)
Damper assembly
Damper motor
(R13992)
Limit switch
(R5819)
