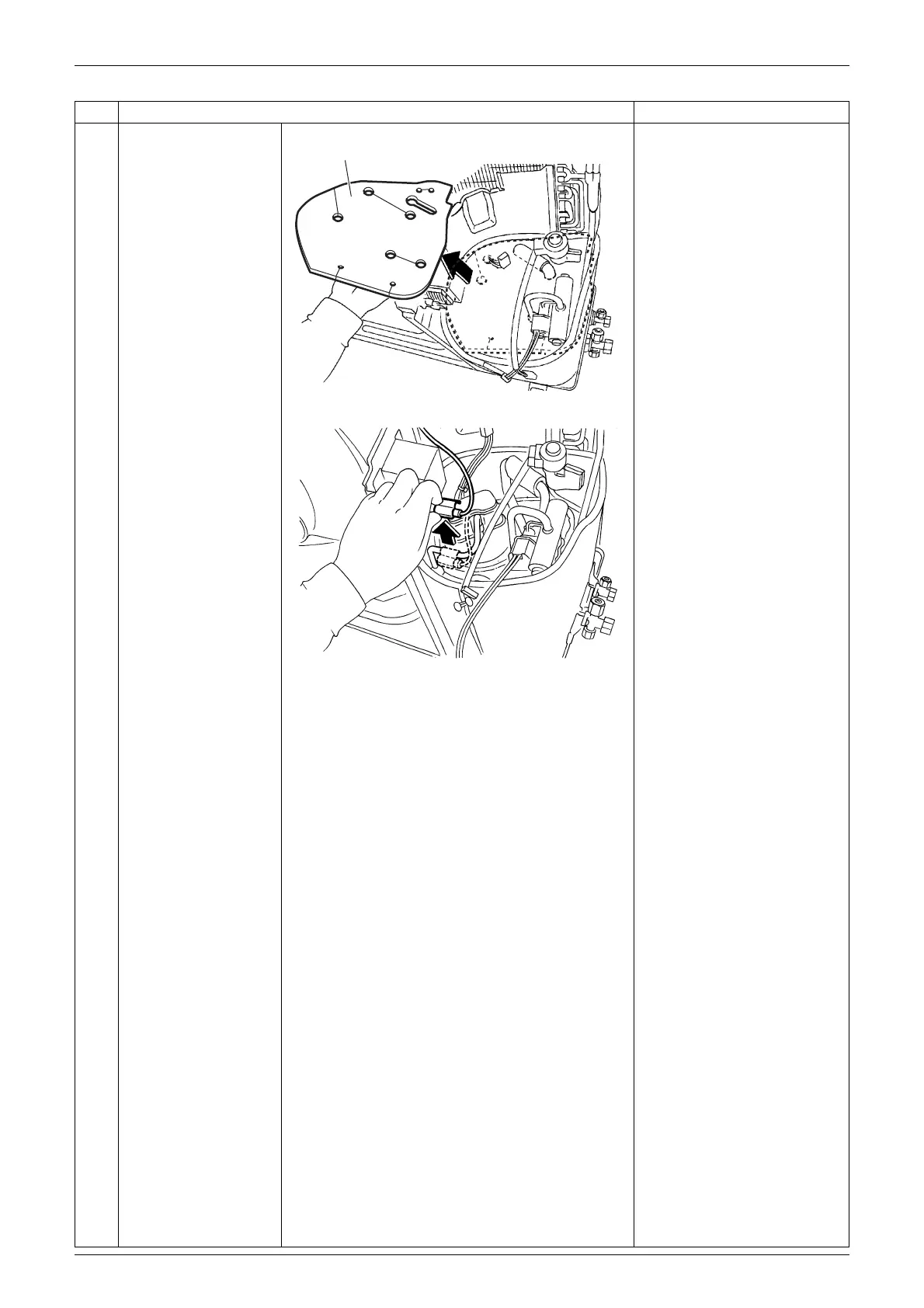

Thermistor Assembly Si001275
20 Removal Procedure
6
Remove the sound
blanket (top).
Since the piping ports on
the sound blanket are torn
easily, remove the blanket
carefully.
7
8
Release the discharge
pipe thermistor.
Remove the thermistor
assembly.
Detach the discharge pipe
thermistor while opening the
thermistor fixing clip.
Be careful not to loose the
clip for the discharge pipe
thermistor.
Meet the edge of the
thermistor and the clip when
reassembling.
Step Procedure Points
(R14055)
Sound blanket (top)
(R5880)
