Daikin RXR28EV1B8 - Page 13

Si001275 Outdoor Fan / Fan Motor

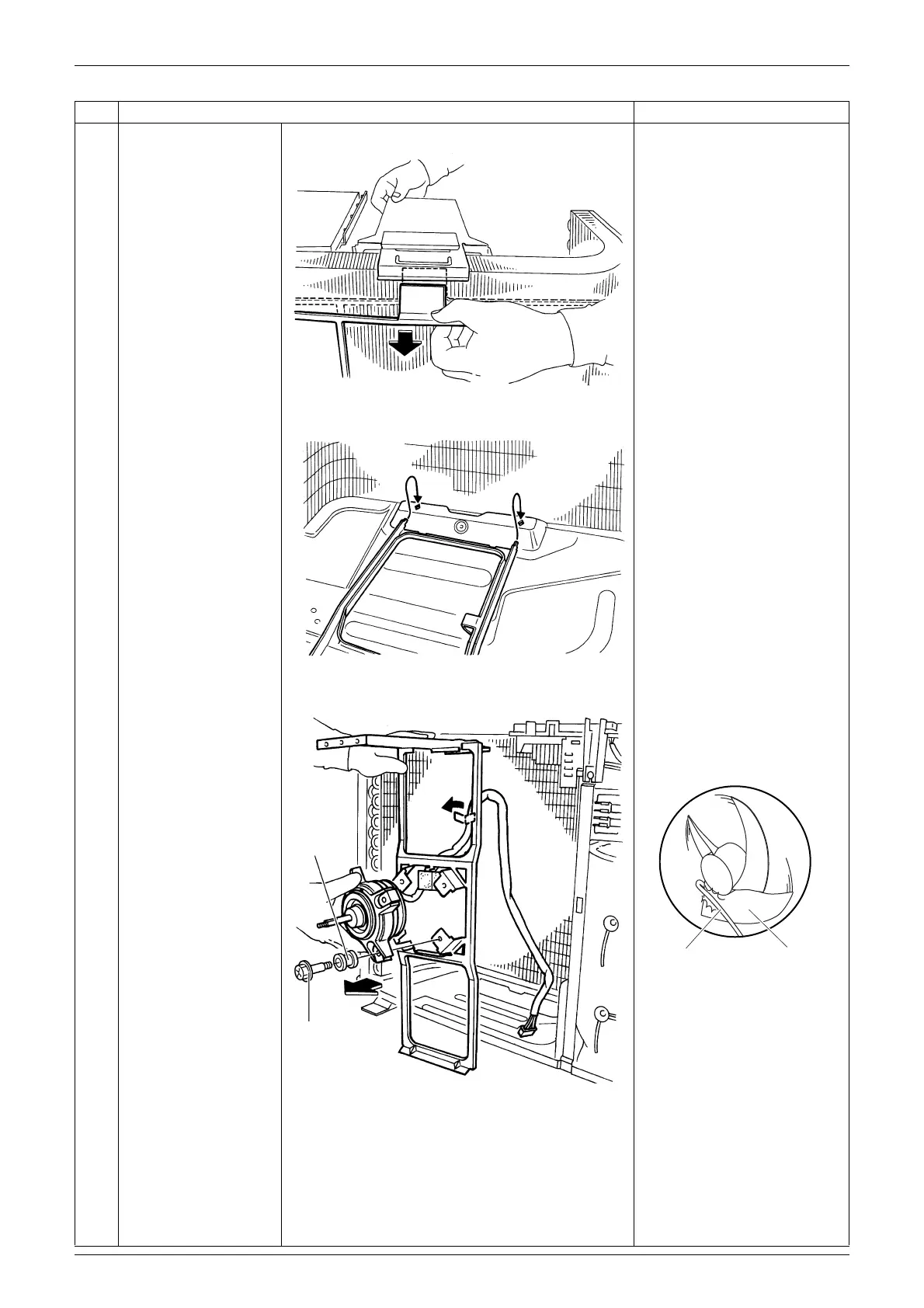

Removal Procedure 11
4
Detach the upper part
of the fan motor fixing
plate.
5
Fan motor fixing plate
has 2 hooks on lower
part.
6
Unfasten the hook and
release the fan motor
lead wire.

When reassembling, put the
fan motor lead wire through
the back of the fan motor
(so as not to be entangled
with the outdoor fan).
7
Remove the 4 screws
of the fan motor.
8
Pull out the rubber
vibration isolators
sideward.
Step Procedure Points
(R5839)
(R5840)
(6)
(8)
(7)
(R14002)
(R3249)
Lead wire Outdoor fan
