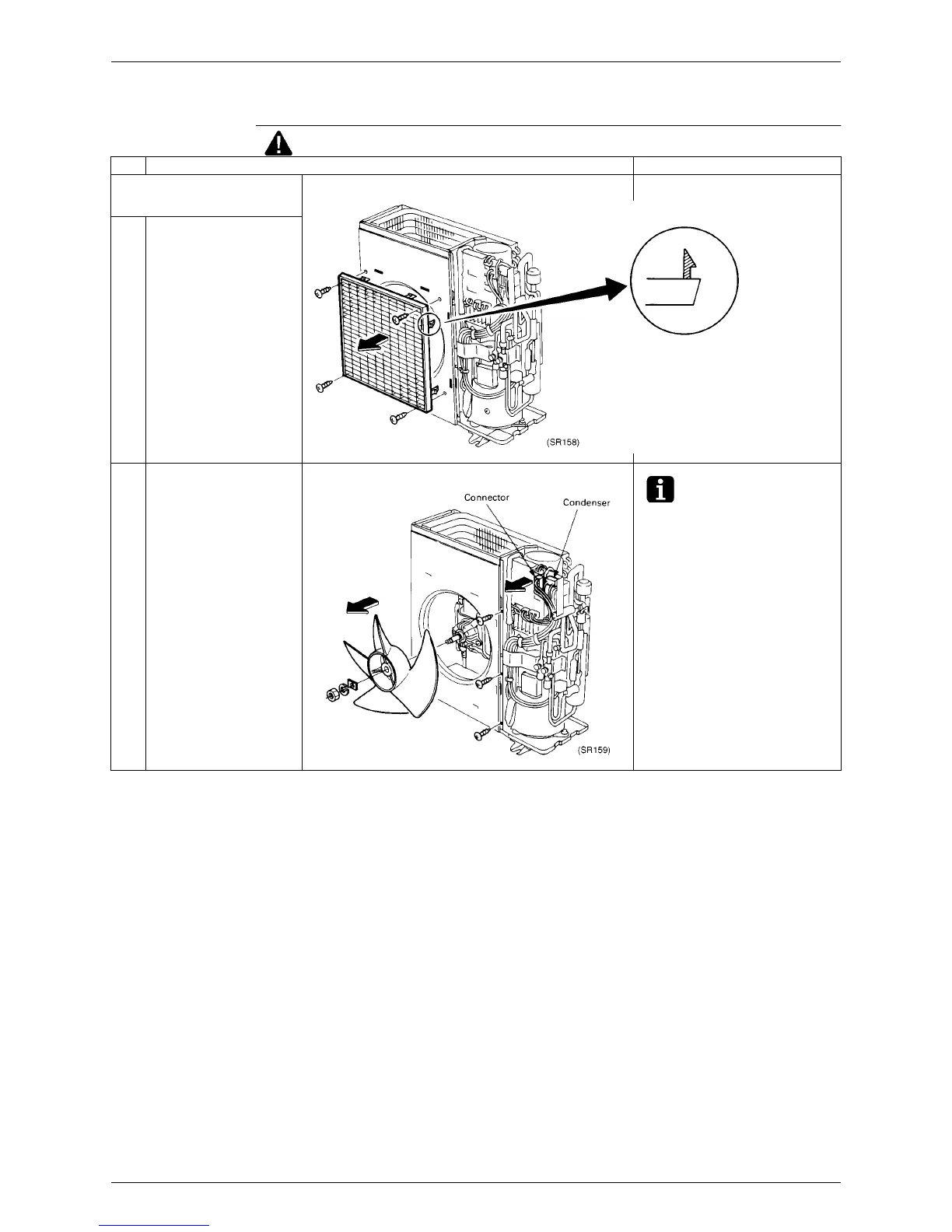

6.2 Removal of Outdoor Unit Fan and Fan Motor
Procedure
Warning Be sure to turn off all power supplies before disassembling work.
Step Procedure Points
∗
Remove the front piping cover,
etc., according to the procedure for
removing the external casing.
1 Remove the 4 screws and
disconnect the 8 tabs
fastening the air discharge
grille on the top/bottom and
left/right, and remove the air
discharge grille.
2 Remove the fan clamp
fastening the propeller fan;
remove the nut and washer.
Note:
The fan motor’s lead wire cannot be
disconnected as is. You must first
remove the screw on the right side of
the front casing (1).
3 Disconnect the motor
connector from the PC
board’s wiring connector,
and remove the condenser.
