Daikin Super multi NX E Series User Manual

SiBE121135_A Field Settings
Trial Operation and Field Settings 256

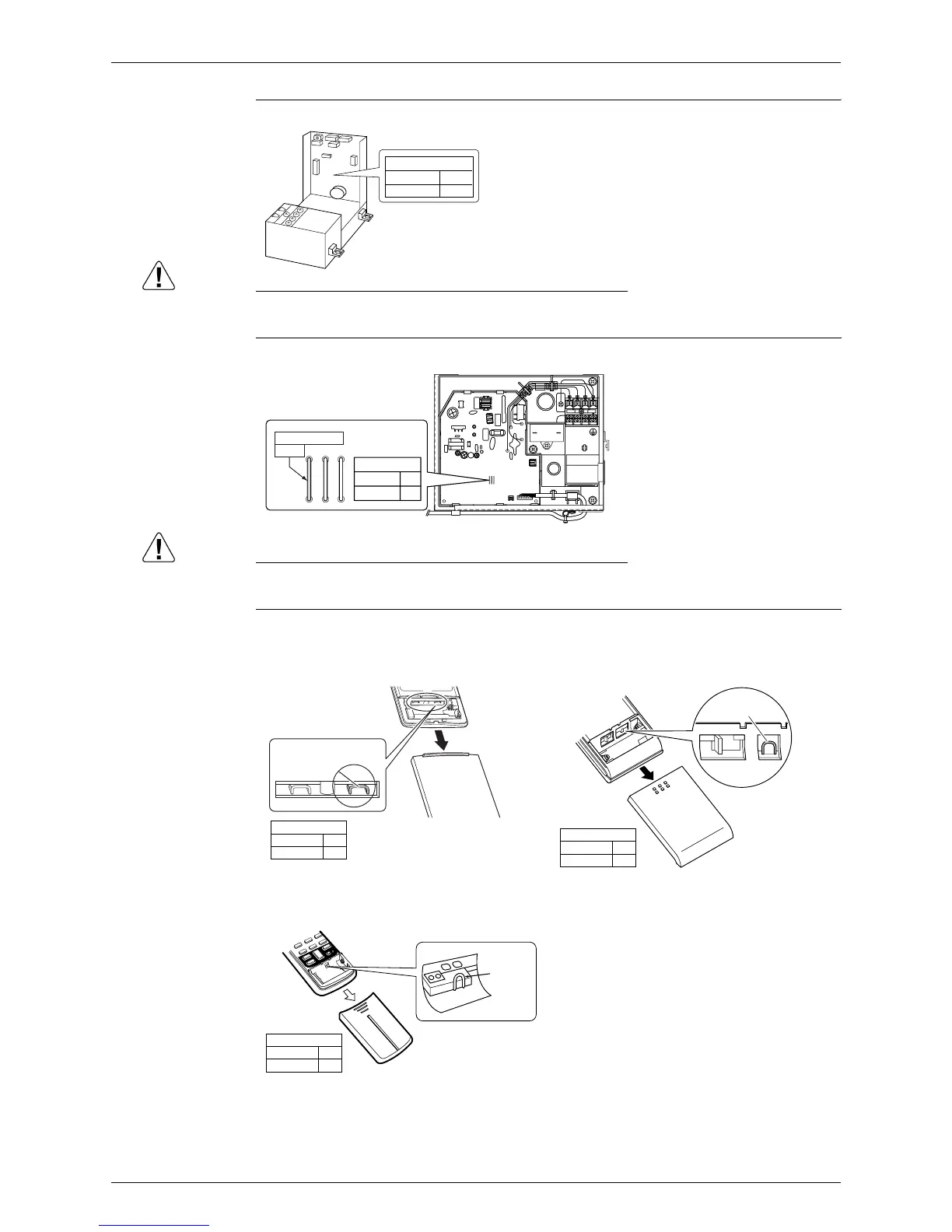

Floor / Ceiling
Suspended Dual
Type
 Cut the jumper JA on PCB.
Caution Replace the PCB if you accidentally cut a wrong jumper.
Jumpers are necessary for electronic circuit. Improper operation may occur if you cut any of
them.
Duct Connected
Type
 Cut the jumper JA on PCB.
Caution Replace the PCB if you accidentally cut a wrong jumper.
Jumpers are necessary for electronic circuit. Improper operation may occur if you cut any of
them.
Wireless Remote
Controller
(1) Remove the cover and take it off.
(2) Cut the address setting jumper.
ADDRESS JA
(R11732)
EXIST
CUT
1
2
1 23
(R17876)
ADDRESS : JA
EXIST
CUT
1
2
A D D R E S S
JB
JC
J A
ARC466 series ARC452 series
ARC433 series
(R18416)
ADDRESS
EXIST
1
CUT
2
Jumper
∗ Do not cut the left jumper.
Jumper
ADDRESS
(R12065)
EXIST
CUT
1
2
Jumper
(R6573)
ADDRESS
EXIST
CUT
1
2
