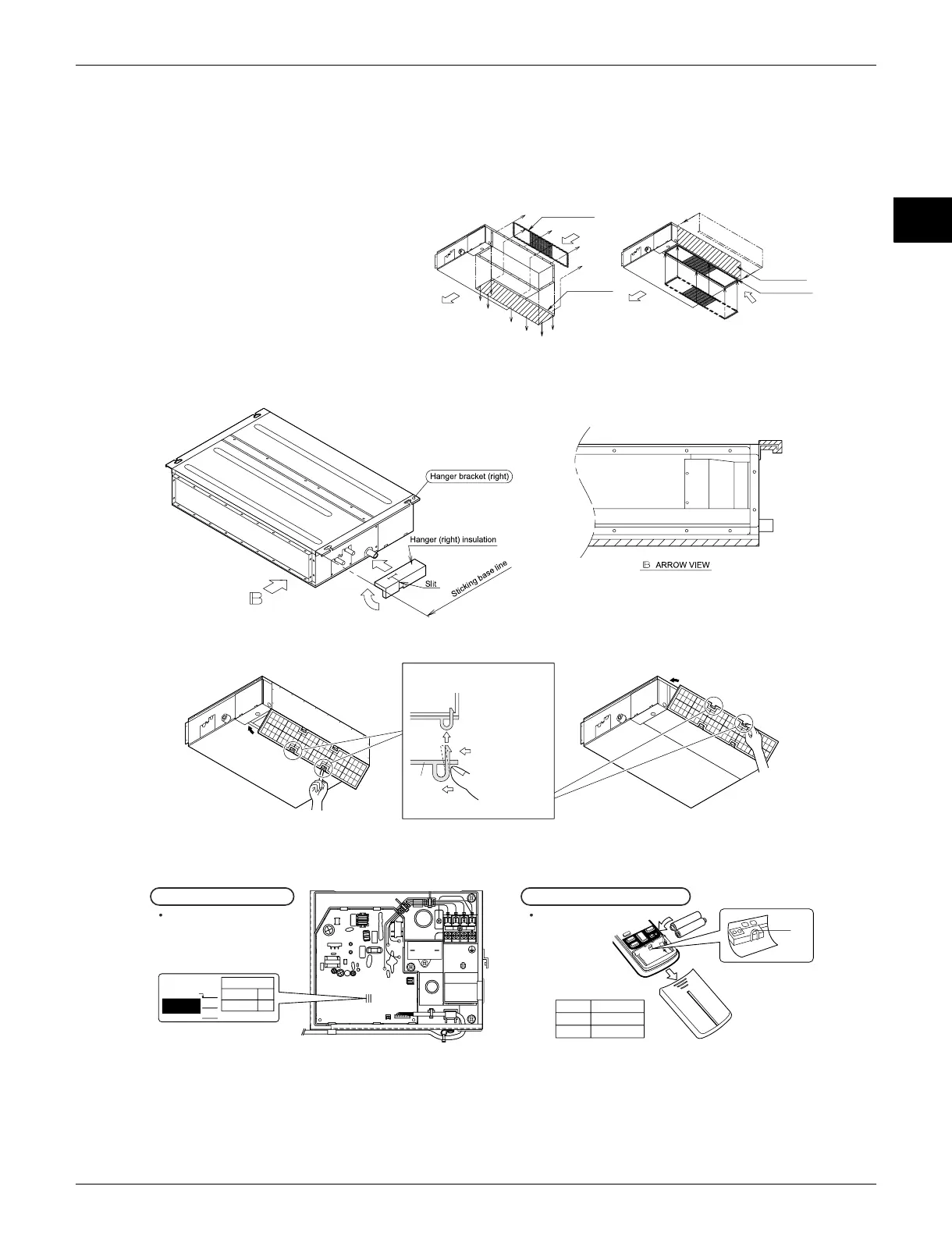

Mount chamber lid
and air filter
(accessory).
For bottom intake, replace the chamber lid and
the protection net in the procedure listed in Fig.
(1)Remove the protection net. (6 locations)
Remove the chamber lid. (7 locations)
(2)Reattach the removed chamber lid in the
orientation shown in Fig.(7 locations)
Reattach the removed protection net in the
orientation shown in Fig. (6 locations)
Refer to Fig. for the direction of the protection
net.
(3)Attach the hanger (right) insulation to the right hanger. (Stored in outlet vent)
(See the below figure for the sticking base line.)
(4)Attach the air filter (accessory) in the manner shown in the diagram.
When two indoor units are installed in one room, one of the two wireless remote controllers can be easily
set for another addresses.
Air inlet
Air inlet
(1)
Chamber lid
(2)
Air discharge
Air discharge
Chamber lid
Protection net
Protection net
In case of bottom side
In case of back side
Filter
Force
Force
Main unit
Attach the
filter to the
main unit
while
pushing
down on the
2 bends.
J4 ADDRESS
EXIST 1
CUT 2
Wireless
remote
controller
J4
P
To Next Page
