CDXS, FDXS Series EDUS121131
406 Operation Manual
4. CDXS, FDXS Series
4.1 Names of Parts
5
Names of Parts

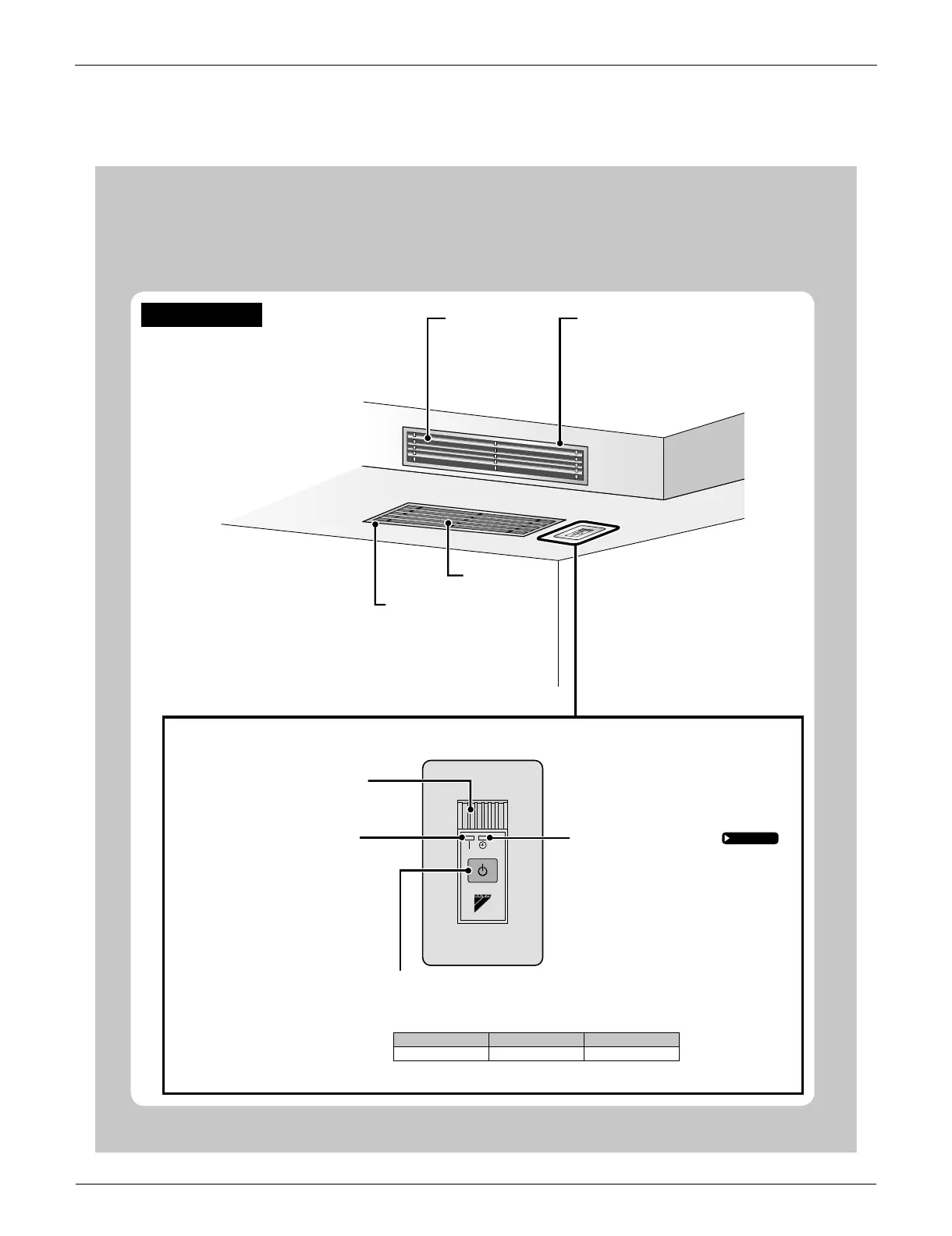

Indoor Unit
Air outlet
Suction grille (option)
Appearance of the suction •
grille and air inlet grille may
differ from some models.
Air inlet
Room temperature sensor
It senses the air temperature around the unit.•
Receiver
Indoor unit ON/OFF switch
Press this switch once to start operation. •
Press once again to stop it.
The operation mode refers to the following table.•
Mode Temperature setting Airfl ow rate
AUTO 77°F (25°C) AUTO
This switch is useful when the remote controller is missing.•
Air outlet grille (fi eld supply)
Appearance of the air outlet grille and air •
inlet grille may differ from some models.
OPERATION lamp (green)
TIMER lamp (yellow)
Page 17,18
