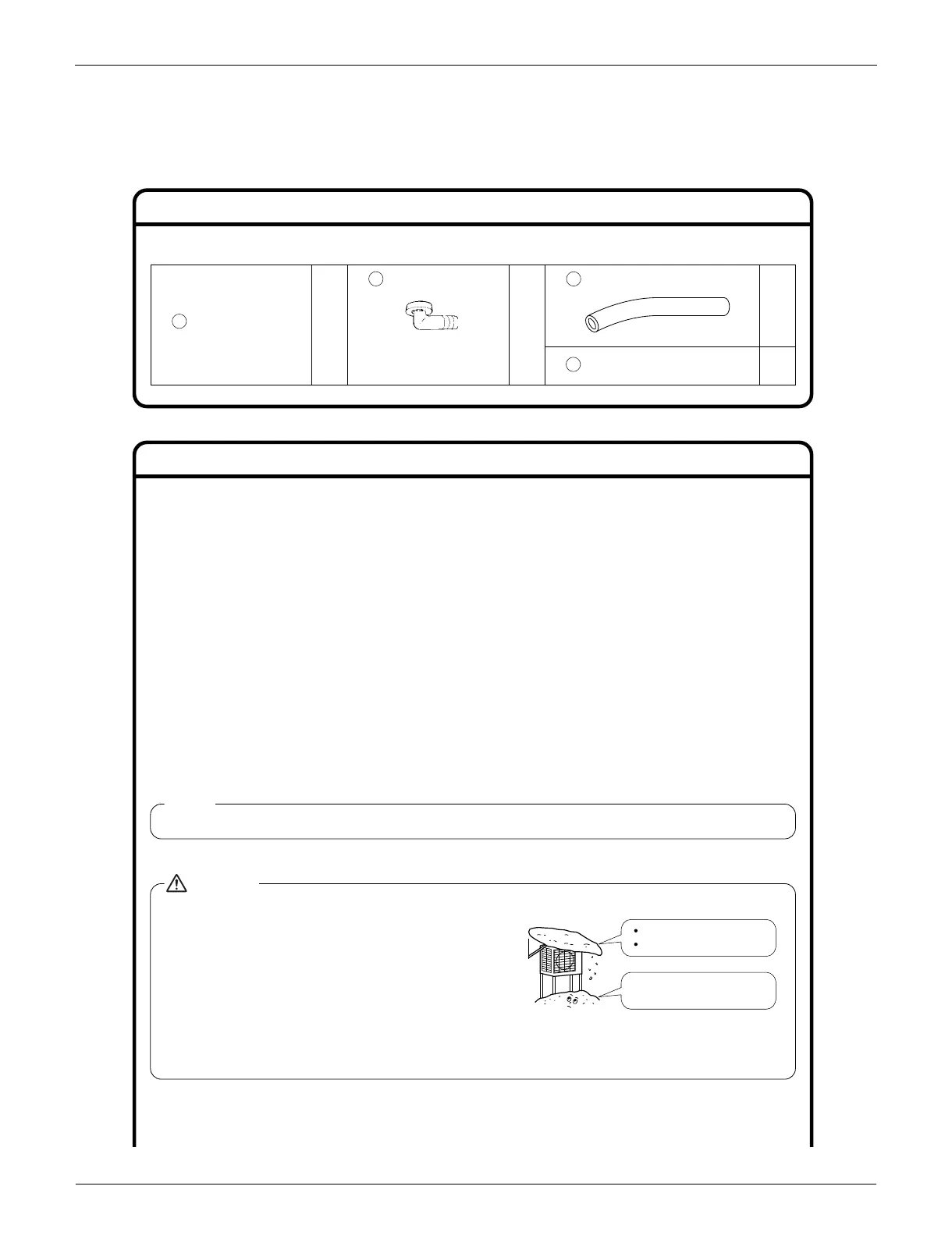

4. Outdoor Unit
Accessories
Precautions for Selecting the Location
Accessories supplied with the outdoor unit:
OUTDOOR UNIT
1) Choose a place solid enough to bear the weight and vibration of the unit, where the operation sound will not be
amplified.
2) Choose a location where the hot air discharged from the unit or the operation sound will not cause a nuisance to the
neighbors of the user.
3) Avoid places near a bedroom and the like, so that the operation sound will cause no trouble.
4) There must be sufficient spaces for carrying the unit into and out of the site.
5) There must be sufficient space for air passage and no obstructions around the air inlet and the air outlet.
6) The site must be free from the possibility of flammable gas leakage in a nearby place.
7) Install units, power cords and inter-unit cables at least 9.5 feet away from television and radio sets. This is to
prevent interference to images and sounds. (Noises may be heard even if they are more than 9.5 feet away
depending on radio wave conditions.)
8) In coastal areas or other places with salty atmosphere of sulfate gas, corrosion may shorten the life of the air
conditioner.
9) Since drain flows out of the outdoor unit, do not place under the unit anything which must be kept away from
moisture.
Cannot be installed hanging from ceiling or stacked.
NOTE
Construct a large canopy.
Construct a pedestal.
Install the unit high enough off the
ground to prevent burying in snow.
When operating the air conditioner in a low outdoor ambient
temperature, be sure to follow the instructions described below.
1) To prevent exposure to wind, install the outdoor unit with its
suction side facing the wall.
2) Never install the outdoor unit at a site where the suction side
may be exposed directly to wind.
3) To prevent exposure to wind, it is recommended to install a
baffle plate on the air discharge side of the outdoor unit.
4) In heavy snowfall areas, select an installation site where the
snow will not affect the unit.
A Installation Manual
B Drain plug C Tube
D Binding band
There is on the bottom
packing case.
1
1
2
1
CAUTION
To Next Page
