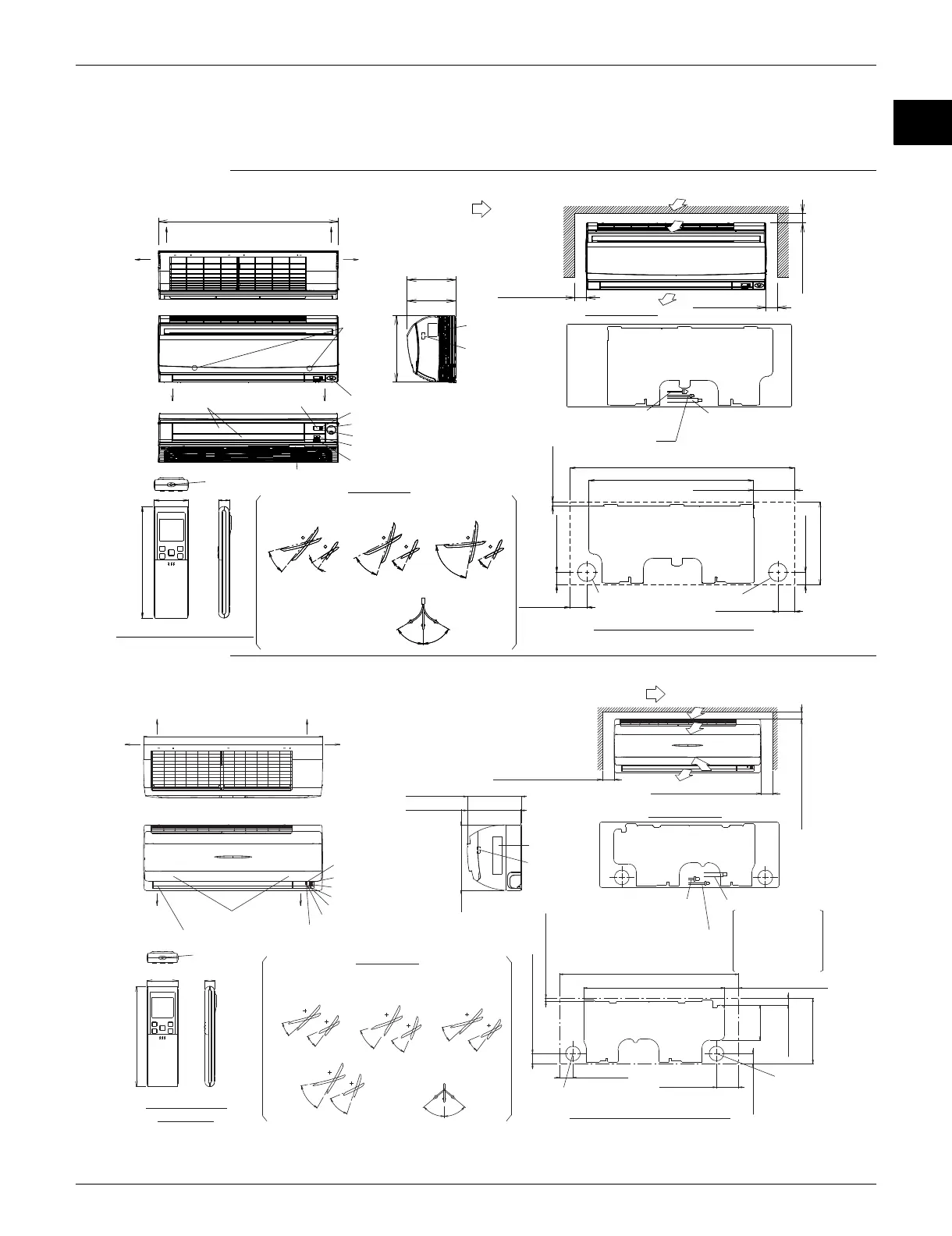

4. Dimensions
4.1 Indoor Unit
CTXS07LVJU
CTXS09/12HVJU
FRONT GRILLE
FIXED SCREWS
(INSIDE)
LOUVERS
WIRELESS REMOTE CONTROLLER
(ARC452A21)
(SPACE FOR PERFORMANCE)
(SPACE FOR
MAINTENANCE)
(SPACE FOR MAINTENANCE)
INTELLIGENT EYE SENSOR
SIGNAL RECEIVER
OPERATION LAMP
DRAIN HOSE
(CONNECTING PART
O.D. φ5/8 (φ16mm)
THE HOSE LENGTH OF OUTSIDE
THE UNIT IS APPROX. 18-5/16 (465mm))
GAS PIPE φ3/8 (φ9.5mm) CuT
(THE LENGTH OF PIPE OUTSIDE
THE UNIT: ABOUT 13-3/4 (350mm))
TIMER LAMP
INTELLIGENT EYE LAMP
LIQUID PIPE φ1/4 (φ6.4mm) CuT
(THE LENGTH OF PIPE OUTSIDE
THE UNIT: ABOUT 15-3/4 (400mm))
SIGNAL TRANSMITTER
STANDARD LOCATIONS OF WALL HOLES
AIRFLOW (INDOOR)
INCLUDING
MOUNTING PLATE
)(
REQUIRED SPACE
NAME PLATE
TERMINAL BLOCK
WITH GROUND
TERMINAL
INDOOR UNIT ON/OFF SWITCH
ROOM TEMP. THERMISTOR (INSIDE)
MODEL NAME PLATE
BLADE ANGLES
UP/DOWN
(AUTOMATIC)
WALL HOLE
φ2-9/16 (φ65mm) HOLE
WALL HOLE FOR
EMBEDDED PIPING
φ2-9/16 (φ65mm) HOLE
31-1/2 (800mm)
REAR
RIGHT
LEFT
1-3/16 (30mm) MIN
8-9/16 (217mm)
1-15/16 (50mm) MIN
8-7/16 (215mm)
1-15/16 (50mm) MIN
11-5/8 (295mm)
BOTTOM
31-1/2 (800mm)
23-1/16 (586mm)
9/16 (14.5mm)
5-3/4 (145.5mm)
2-5/16 (58mm) 11/16 (18mm)
FAN
COOLING, DRY
HEATING
5°
15°
1-3/4 (44.5mm)
1-3/4 (44.5mm)
11-5/8 (295mm)
30°
35°
30°
30°
7-3/8 (187mm)
65°
55°
65°
45°
70°
80°
2-3/8 (60mm)
2-5/16 (59.5mm)
RIGHT/LEFT
(AUTOMATIC)
45°
45°
THE MARK (→) SHOWS PIPING DIRECTION
C: 3D074094A
AIRFLOW (INDOOR)
THE MARK ( ® ) SHOWS PIPING DIRECTION
(FOR PERFORMANCE AND MAINTENANCE)
REAR REAR
31-5/16(795)
LEFT RIGHT
MIN.1-15/16(50)
(SPACE FOR MAINTENANCE)
MIN.1-15/16(50)
9-7/16(240)
(SPACE FOR MAINTENANCE)
9-3/8(238)
REQUIRED SPACE
MIN.1-3/16(30)
MODEL NAME
PLATE
(SPACE FOR MAINTENANCE)
TERMINAL BLOCK
OPERATION LAMP
WITH EARTH
SIGNAL RECEIVER
TERMINAL
INDOOR UNIT ON/OFF SWITCH
(INSIDE)
INTELLIGENT EYE SENSOR
11-7/16(290)
GAS PIPE 3/8 CuT
DRAIN HOSE FOR VP13
ROOM TEMP. THERMISTOR (INSIDE)
(THE LENGTH OF PIPE OUTSIDE
CONNECTING PART
FRONT GRILLE FIXING SCREWS
TIMER LAMP
THE UNIT: ABOUT 13-3/8)
I.D. 9/16
(INSIDE)
HOME LEAVE LAMP
LIQUID PIPE 1/4 CuT
FLAPS
O.D. 11/16
(THE LENGTH OF PIPE OUTSIDE
THE HOSE LENGTH OF
SIGNAL TRANSMITTER
THE UNIT: ABOUT 15-3/8)
OUTSIDE THE UNIT:
BLADE ANGLES
HORIZONTAL BLADE
ABOUT 17-5/16
31-5/16(795)
(AUTOMATIC)
2-1/4(58)
3/4(18)
2-7/16(62.5)
24-5/8(625.5)
9/16(14.5)
COOLING
DRY
HEATING
10°
5°
15°
(30)
1-3/4(44.5)
10°
6-1/8
40°
5°
(290)
1-3/16
15°
(155.5)
35°
11-7/16
40°
55°
35°
55°
FAN
2-3/8(60)
7-3/8(187)
VERTICAL BLADE (AUTOMATIC)
WALL HOLE
3-7/8(98)
5°
f2-9/16 HOLE
WALL HOLE FOR EMBEDDED PIPING
f2-9/16 HOLE
WIRELESS REMOTE
5°
50°
1-3/4
(44.5)
50°
STANDARD LOCATIONS OF WALL HOLES
55°
CONTROLLER
55°
(ARC452A9)
INCLUDING
INSTALLATION PLATE
(
)
3D062863A
